Submersible Pump
SBE 5T
DESCRIPTION

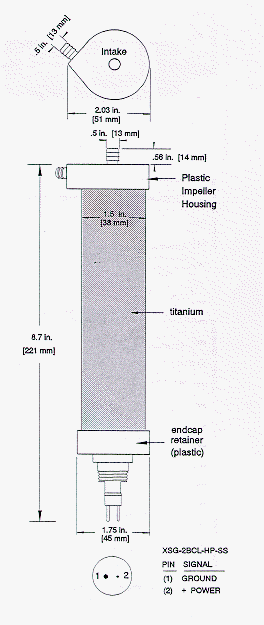

The SBE 5T pump module is a compact unit consisting of a centrifugal pump head and a long-life, brushless, DC, ball bearing motor contained in a titanium pressure housing useable to 10,500 meters (34,400 ft). The pump impeller and electric drive motor are coupled magnetically through the housing, providing high reliability by eliminating moving seals.
APPLICATIONS
The SBE 5T is a primary component in our SBE 9plus CTD Underwater Unit and SBE 25 SEALOGGER CTD. It is also used as optional equipment on the SEACAT (SBE 16plus and 19plus) product line. The pump flushes water through the conductivity cell at a constant rate, independent of the CTD's motion, improving dynamic performance. The pump may also be suitable for custom applications, where pressure heads are less than 300 cm of water and flow rates are less than 100 ml/sec.
CONFIGURATION
The SBE 5T is configured for various applications by selecting either standard or low voltage options, and one of several motor speed options. Speed options of 1300, 2000, 3000, or 4500 rpm have been established to meet flow rate requirements for Sea-Bird applications. Other speeds can be set by adjusting a potentiometer.
OPERATION
Motor speed and pumping rate remain nearly constant over the entire input voltage range (less than 1% change in speed for a one volt change in supply voltage). The unrestricted flow rate with no head is approximately 100 ml/second at 2000 rpm. Flow changes are nearly linear with changes in speed. With unlimited power supply current, turn-on surge is approximately 1.8 A (maximum), which drops to steady state in about 0.25 seconds. If power supply current is limited to approximately 200 mA, the motor will come up to speed in about 0.30 seconds. A series diode is installed in the input power line to prevent damage if the wires are accidentally reversed.
SPECIFICATIONS
Standard input range (#3 winding, 1300-3000 rpm) : 10-18 VDC
Standard
input range (#3 winding, 4500 rpm) : 13-18 VDC
Low input range (#5 winding,
1300-2000 rpm only) : 6-16 VDC
Weight:
0.7 kg (1.5 lbs) in air
0.3 kg (0.65 lbs) in
water
| Description | Click on Thumbnail to View | |
| Voltage vs. Current Draw | #5 Winding, Low Voltage |  |
| #3 Winding, Standard Voltage, 1300 & 2000 rpm |  | |
| #3 Winding, Standard Voltage, 3000 rpm |  | |
| #3 Winding, Standard Voltage, 4500 rpm |  | |
| Pump Speed | Pump Speed Setting vs. Flow Rate |  |
| Pump Speed Setting vs. Pressure |  |
Product Configuration Options & Accessories
Click the icon to download the print version of the specification
sheet in Adobe Acrobat .pdf format.
