DeepSea Power & Light: SeaBattery

SeaBattery

FULL OCEAN DEPTH RATED
EXCELLENT CAPACITY RETENTION
FULLY INVERTABLE
VARIOUS VOLTAGES AVAILABLE

Summary

SeaBatteries are a unique submersible power system designed to perform in the high pressure/low temperature environment of the deep ocean. Deployments to 6,000 meters have proven SeaBatteries to be reliable at great depths. At the heart of each system is a maintenance-free, rechargeable, lead acid battery utilizing a non-liquid electrolyte. Each battery is pressure-modified and mounted in a virtually indestructible polyethylene case filled with inert oil. Built into the top of each case is a resilient urethane diaphragm providing continuous equalization with ambient pressure. The transparent diaphragm incorporates a molded valve assembly for filling and venting the SeaBattery. It also permits visual inspection of the battery status. The dual seal design ensures a leak-free seal. Carrying handles are included on the case.

Specifications

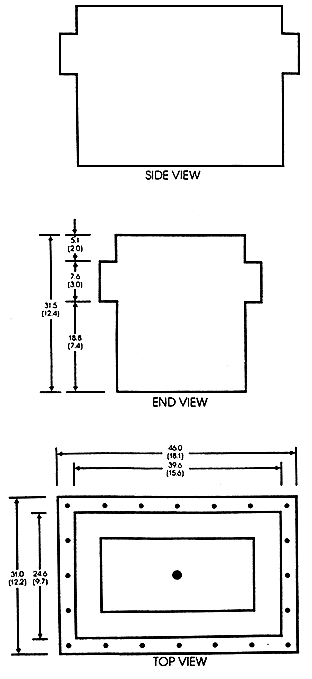

MECHANICAL
  Length:             46.0 cm (18.1 in.)
  Width:              31.0 cm (12.2 in.)
  Height:             31.5 cm (12.4 in.)
  Weight in Air:
  SB-6/180:           48.2 kg (106 lbs.)
  SB-12/76:           49.0 kg (108 lbs.)
  SB-24/38:           49.0 kg (108 lbs.)
  SB-48/18:           49.0 kg (108 lbs.)
  Weight in Water:
  SB-6/180:           18.2 kg (40 lbs.)
  SB-12/76:           19.1 kg (42 lbs.)
  SB-24/38:           19.1 kg (42 lbs.)
  SB-48/18:           19.1 kg (42 lbs.)
  Case:               Molded Polyethylene
  Diaphragm:          Molded Polyether Urethane
  Compensating Fluid: Inert oil

ELECTRICAL
  Standard Configurations:
  SB-6/180:               6 volt, 180 amp hour
  SB-12/76:               12 volt, 76 amp hour
  SB-24/38:               24 volt, 38 amp hour
  SB-48/18:               48 volt, 18 amp hour
  Other Configurations:   Available upon special order
  Internal Resistance:    35 Milliohms
  Maximum Discharge Rate: 30 Amps (limited by gauge of cable)
  Connector:              Right angle diaphragm
                          penetrator on 2-meter
                          cable terminated with
                          IL4FS connector

ENVIRONMENTAL
  Depth:                  Full ocean depth
  Temperature Range:
    Charge:               -15 C to 50 C
                          (5 F to 122 F)
    Discharge:            -20 C to 60 C
                          (-4 F to 140 F)

	Specifications subject to change without notice. Rev. 01/06/00 DEEPSEA POWER & LIGHT - 3855 Ruffin Road- San Diego, CA 92123-1813 USA - TEL (858) 576-1261 - FAX (858) 576-0219 Email: info@deepsea.com
