Super SeaCam 6500
Low-Light Color Camera
|
- LOW-LIGHT SENSITIVITY
- WIDE ANGLE OPTICS
- 18X ZOOM LENS
- INFRA-RED LED
- RS-232 OR TRINARY CONTROL
|
|
Summary
For high quality imaging under difficult lighting conditions, the Super SeaCam
6500 is the camera of choice. Under normal lighting conditions, the camera functions
as a high-quality color camera. When scene illumination drops below the level
needed for normal color imaging, an infra-red cut filter is removed, extending
the camera's operational capability by allowing it to continue imaging as a monochrome
device. A Super HAD CCD imaging device delivers superior image quality for all
types of underwater inspection and is available in your choice of Titanium (6000m),
Aluminum (4000m) or Delrin™ (300m) pressure housings. The 18X autofocus zoom lens
focuses as close as 10mm. And to ensure razor sharp image quality, the glass dome
is polished to optical standards and treated with an anti-reflective coating.
DeepSea's lights, cameras, batteries, lasers and temperature sensors are used
daily in the most demanding environments on planet earth. The Super SeaCam family
of cameras continues our commitment to designing best-value products for the user
who demands uncompromising quality, reliability and service.
Specifications
| |
|
Standard Pin-out
|
|
1
|
Power Gnd
|
*7
|
Zoom(+/-)
|
|
2
|
+VDC
|
*8
|
Auto focus
|
|
3
|
Y/ Comp Video
|
9
|
Control & video gnd
|
|
4
|
Video/C
|
10
|
A**
|
|
5
|
Sync
|
11
|
B**
|
|
*6
|
Focus(+/-)
|
12
|
Not Used
|
*Trinary control.
**RS-232/485
|
|

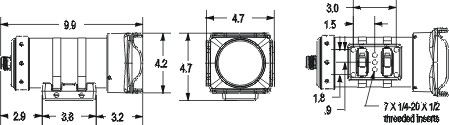

MECHANICAL
Material: Titanium, Aluminum, Delrin™
Overall Length: 25.20 cm (9.90 in.)
Outer Diameter: 9.45 cm (3.75 in.)
Port: Optically polished glass dome with
anti-reflective coating
Weight in Air: Ti- 2.95kg (6.50lbs)
Weight in Water: Ti- 1.54kg (3.41lbs)
OPTICAL
Lens: 18X (12X optical, 6X digital) zoom f=4.1 - 73.8 mm
Focus: Auto
Working distance: 10mm to infinity (wide angle setting)
Field of View in Water: 104 deg. (D) x 84 deg (H) x 62 deg. (V)
VIDEO
Image Sensor: ¼-inch CCD Sensor
Pixels: NTSC: 768 (H) x 494 (V)
PAL: 752 (H) x 582 (V)
Resolution: More than 470 lines horizontal
Min. Sensitivity: 3.0 Lux (f=1.4), IR cut filter on
0.2 Lux (f=1.4), IR cut filter off
Signal to Noise: 50 dB
Video Out: Composite, Y/C
Video Formats: NTSC, PAL
ELECTRICAL
Power: 9 - 30 VDC
Current: Steady-state - 230mA
Drive-state - 350mA
Connector: MHDG-12 (standard), other options available
ENVIRONMENTAL
Depth: Titanium Aluminum Delrin™
6,000 m (20,000 ft) 4,000 m (13,000 ft.) 300 m (1,000 ft.)
Operating Temp: 0 - 50 deg. C
Storage Temp: -20 - 60 deg. C
|
Specifications subject to change without notice.
Rev. 01/06/00
DEEPSEA POWER & LIGHT - 3855 Ruffin Road- San Diego,
CA 92123-1813 USA - TEL (858) 576-1261 - FAX (858) 576-0219
