ToolBox Camera Control Unit
- BATTERY OR AC OPERATION
- INTEGRATED MONITOR
- FLIP-DOWN SUN SHADE
- DETACHABLE NEOPRENE SUNBOOT
- USES STANDARD NiCAD OR NiMH BATTERIES
- BATTERY CHARGER AND NiCAD INCLUDED
|
|
|
ToolBox Camera Control Unit |
|
|
| |

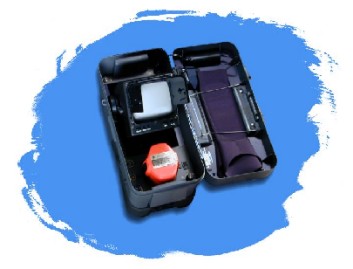

DeepSea's ToolBox Camera Control Unit - fast and flexible portable monitoring.
The ToolBox CCU is the smallest, most portable topside camera control unit available anywhere. With its small footprint, light weight and battery operation, extension cords and slow setup times are a thing of the past and remote imaging applications are a breeze.
The ToolBox CCU will power any of our cameras and will provide power for both camera and lights on systems with integrated LED lighting, such as the SST-1370.
Front panel features include a power switch, a dimmer knob for the lights (SST-1370), video in/out (RCA jack), auxiliary AC power input and camera connector.
The high-resolution monitor includes an integrated sunshade and a detachable neoprene sunboot for use in direct sunlight. To maximize battery life, an interlock switch automatically shuts off system power when the unit is closed. And best of all, the ToolBox CCU is engineered to use the most commonly available portable power source - Makitaâ 14.4V NiCAD or NiMH batteries (NiCAD battery and charger included).
For more information regarding how the ToolBox CCU can simplify your diving and imaging operations, contact DeepSea Power & Light or your local DeepSea representative.
BASE UNIT Length: 39.37 cm (15.50 in.) Width: 21.72 cm (8.55 in.) Height: 21.46 cm (8.45 in.) Weight with battery: 5.44 kg (12 lbs.) Weight without battery: 4.54 kg (10 lbs.) Input Power: 14.4VDC/120 VAC Output Power: Variable 8.0 to 12.5VDC MONITOR 5.5 inch B&W EIA standard 700 lines of resolution INPUT CONNECTORS SSBH3FS Camera video in 15VDC in 120VAC wall adaptor OUTPUT CONNECTORS Video in/out EIA standard (RCA jack) PIN OUT 1 - GROUND 2 - POWER 3 - VIDEO CHARGER Will charge NiCAD or NiMH batteries Input 120VAC Charge Time 1 hour BATTERY Voltage 14.4VDC Current 2.0Ah (NiCAD) 2.2Ah (NiMH)
 |
Specifications subject to change without notice.
Rev. 01/06/00 |
