Shielded Drum Core Inductor

PA4300.XXXNLT & PA4301.XXXNLT Series

Pulse Jack

E l e c t r o n i c s

Height: 3.0mm Max

Footprint: 6.1 x 6.1 mm Max and 7.2 x 7.2 mm Max

Current Rating: 0.165A to 3.6A

Inductance Range: 1uH to 680uH

Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C

SMT POWER INDUCTORS

Power Beads - PA2982.XXXHL Series

Pulse Part Number Inductance (uH) Rated Current (A) Max DC Resistance (mΩ) Max Package Size (mm)

PA4300.102NLT 1.0 3.45 15.6 6.1 x 6.1 x 3

PA4300.122NLT 1.2 3 19.2 6.1 x 6.1 x 3

PA4300.182NLT 1.8 2.7 22.1 6.1 x 6.1 x 3

PA4300.222NLT 2.2 2.3 24.7 6.1 x 6.1 x 3

PA4300.272NLT 2.7 2.26 28.6 6.1 x 6.1 x 3

PA4300.332NLT 3.3 2.23 32.5 6.1 x 6.1 x 3

PA4300.392NLT 3.9 2.05 35 6.1 x 6.1 x 3

PA4300.472NLT 4.7 1.9 39 6.1 x 6.1 x 3

PA4300.562NLT 5.6 1.76 44.2 6.1 x 6.1 x 3

PA4300.682NLT 6.8 1.63 52 6.1 x 6.1 x 3

PA4300.822NLT 8.2 1.5 58.5 6.1 x 6.1 x 3

PA4300.103NLT 10 1.3 78 6.1 x 6.1 x 3

PA4300.123NLT 12 1.2 84.5 6.1 x 6.1 x 3

PA4300.153NLT 15 1.1 114.4 6.1 x 6.1 x 3

PA4300.183NLT 18 1 119.6 6.1 x 6.1 x 3

PA4300.223NLT 22 0.89 156 6.1 x 6.1 x 3

PA4300.273NLT 27 0.8 188.5 6.1 x 6.1 x 3

PA4300.333NLT 33 0.73 206.7 6.1 x 6.1 x 3

PA4300.393NLT 39 0.69 230.75 6.1 x 6.1 x 3

PA4300.473NLT 47 0.61 260 6.1 x 6.1 x 3

PA4300.563NLT 56 0.56 338 6.1 x 6.1 x 3

PA4300.683NLT 68 0.505 364 6.1 x 6.1 x 3

PA4300.823NLT 82 0.46 416 6.1 x 6.1 x 3

PA4300.104NLT 100 0.415 572 6.1 x 6.1 x 3

PA4300.124NLT 120 0.39 676 6.1 x 6.1 x 3

PA4300.154NLT 150 0.36 875 6.1 x 6.1 x 3

PA4300.184NLT 180 0.305 1050 6.1 x 6.1 x 3

PA4300.224NLT 220 0.285 1300 6.1 x 6.1 x 3

PA4300.274NLT 270 0.255 1520 6.1 x 6.1 x 3

PA4300.334NLT 330 0.23 2210 6.1 x 6.1 x 3

PA4300.394NLT 390 0.21 2400 6.1 x 6.1 x 3

PA4300.474NLT 470 0.19 2600 6.1 x 6.1 x 3

PA4300.564NLT 560 0.175 2960 6.1 x 6.1 x 3

mix: (I? pu‘Seelectromcs com Pulse Electronics P746A (12/14)

P746.A (12/14)

2pulseelectronics.com

Shielded Drum Core Inductor

PA4300.XXXNLT & PA4301.XXXNLT Series

Pulse Jack

E l e c t r o n i c s

NOTES:

1. Inductance tolerance is +/-30% for inductance values between 1uH and 8.2uH and +/-20% for values between

10uH and 680uH.

2. Inductance is measured at 100kHz, 250mV for values between 1uH and 8.2uH and at 1kHz, 250mV for values

between 10uH and 680uH.

3. The rated current as listed is the rms or heating current that the part can withstand with acceptable temperature

rise in typical applications. At the listed current the inductance typically drops to 85-90% of the no load value

when measured at 25C.

4. The temperature of the component (ambient plus temperature rise) must be within the stated operating

temperature.

Pulse Part Number Inductance (uH) Rated Current (A) Max DC Resistance (mΩ) Max Package Size (mm)

PA4300.684NLT 680 0.165 3770 6.1 x 6.1 x 3

PA4301.102NLT 1.0 3.6 18.2 7.2 x 7.2 x 3

PA4301.152NLT 1.5 3.53 19.6 7.2 x 7.2 x 3

PA4301.182NLT 1.8 3.45 20.8 7.2 x 7.2 x 3

PA4301.222NLT 2.2 3.15 24.7 7.2 x 7.2 x 3

PA4301.272NLT 2.7 2.84 27.3 7.2 x 7.2 x 3

PA4301.332NLT 3.3 2.8 29.9 7.2 x 7.2 x 3

PA4301.392NLT 3.9 2.6 32.5 7.2 x 7.2 x 3

PA4301.472NLT 4.7 2.3 40.3 7.2 x 7.2 x 3

PA4301.562NLT 5.6 2.13 45.5 7.2 x 7.2 x 3

PA4301.682NLT 6.8 1.88 46.8 7.2 x 7.2 x 3

PA4301.822NLT 8.2 1.73 55.9 7.2 x 7.2 x 3

PA4301.103NLT 10 1.6 75.4 7.2 x 7.2 x 3

PA4301.123NLT 12 1.5 80.6 7.2 x 7.2 x 3

PA4301.153NLT 15 1.34 89.7 7.2 x 7.2 x 3

PA4301.183NLT 18 1.21 93.6 7.2 x 7.2 x 3

PA4301.223NLT 22 1.1 122.2 7.2 x 7.2 x 3

PA4301.283NLT 27 1.02 131.3 7.2 x 7.2 x 3

PA4301.333NLT 33 0.918 159.9 7.2 x 7.2 x 3

PA4301.393NLT 39 0.835 195 7.2 x 7.2 x 3

PA4301.473NLT 47 0.745 234 7.2 x 7.2 x 3

PA4301.563NLT 56 0.685 273 7.2 x 7.2 x 3

PA4301.683NLT 68 0.607 364 7.2 x 7.2 x 3

PA4301.823NLT 82 0.57 403 7.2 x 7.2 x 3

PA4301.104NLT 100 0.52 507 7.2 x 7.2 x 3

PA4301.124NLT 120 0.45 676 7.2 x 7.2 x 3

PA4301.154NLT 150 0.41 806 7.2 x 7.2 x 3

PA4301.184NLT 180 0.38 949 7.2 x 7.2 x 3

PA4301.224NLT 220 0.35 1110 7.2 x 7.2 x 3

PA4301.274NLT 270 0.31 1560 7.2 x 7.2 x 3

PA4301.334NLT 330 0.285 1700 7.2 x 7.2 x 3

PA4301.394NLT 390 0.253 1950 7.2 x 7.2 x 3

PA4301.474NLT 470 0.23 2730 7.2 x 7.2 x 3

PA4301.564NLT 560 0.22 2990 7.2 x 7.2 x 3

PA4301.684NLT 680 0.193 3510 7.2 x 7.2 x 3

Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C

@Pulse Electronics ARA? — AV‘, L $$$$$$ $6 ﬁp 3 pu‘seelectromcscom P746.A (12/14)

P746.A (12/14)

3pulseelectronics.com

Shielded Drum Core Inductor

PA4300.XXXNLT & PA4301.XXXNLT Series

Pulse Jack

E l e c t r o n i c s





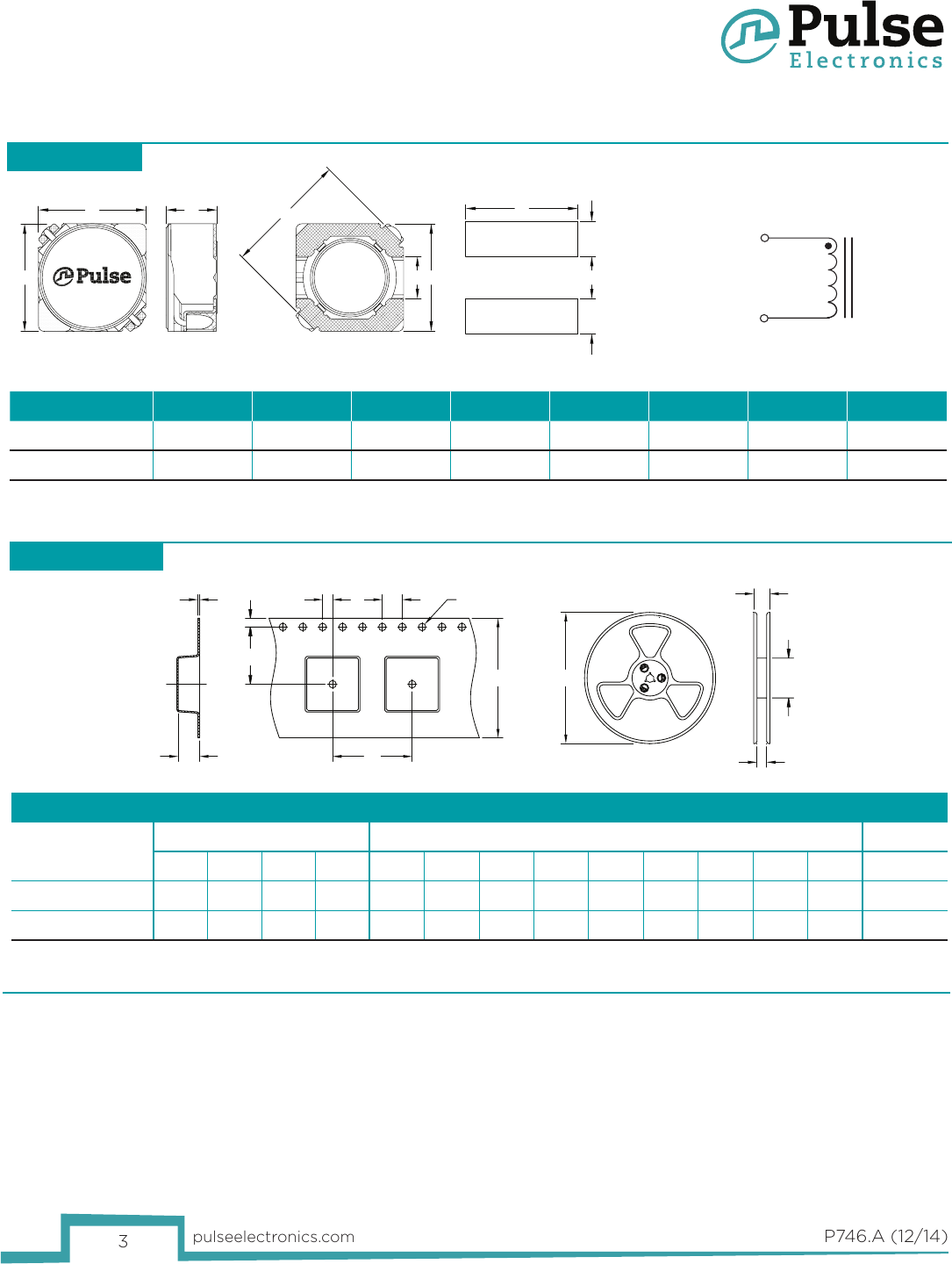

Mechanical Schematic

PA43XX.XXXNLT

E D

SUGGESTED PAD LAYOUTFINAL OUTLINE

ØD

P P

SURFACE MOUNTING TYPE, REEL/TAPE LIST

TYPE REEL SIZE (mm) TAPE SIZE (mm) QTY

A B G N E F D0P P0P2W T K0PCS/REEL

PA4300.XXXNLT Ø330 21 16.5 100 1.75 5.5 1.5 8 4 2 16 0.30 3.3 2000

PA4301.XXXNLT Ø330 21 16.5 100 1.75 7.5 1.5 12 4 2 16 0.30 3.2 1000

Part Number A (max) B (max) C (max) D E F G H

PA4300.XXXNLT 6.1 3.0 8.2 (5.5) (2.0) (6.3) (2.15) (2.0)

PA4301.XXXNLT 7.2 3.0 9.7 (6.5) (2.0) (7.3) (2.65) (2.0)
