Door dialog box

Use the Door dialog box to select a door type and enter door dimensions. In addition, you can define door features and attributes, such as such as color and line style for the geometry, horizontal or vertical mullions, or a radius for rounded corners. You can also make multiple copies of the door you define.

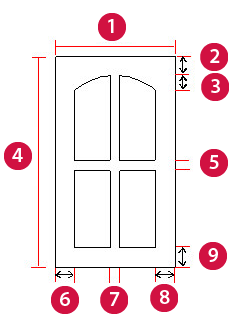

The graphic below shows the door components that require dimensions when using the Door dialog box.

A door with the components numerically labeled.

  1. Door width
  2. Top rail
  3. Arch
  4. Door height
  5. Horizontal mullion
  6. Left stile
  7. Vertical mullion
  8. Right stile
  9. Bottom rail

Door style

Choose the type of door to create from the list.

Mirror arch

Select to copy and mirror the arch style on the bottom of the door.

Door height

Enter the height of the door.

Left stile width

Enter the width of the left stile, the left vertical piece of the door frame.

Door width

Enter the door width.

Right stile width

Enter the width of the right stile, the right vertical piece of the door frame.

Bottom rail width

Enter the width of the bottom rail, the lower horizontal piece of the door frame.

Arch height

Enter the overall height of the arch (where applicable).

Top rail width

Enter the width of the top rail, the upper horizontal piece of the door frame.

Attributes (Outer Geometry)

Choose a color, level, line style, line width, and/or point style for the outer boundary of the door.

Attributes (Inner Geometry)

Choose a color, level, line style, line width, and/or point style for the inner boundary of the door.

Horizontal mullions

Select to add horizontal cross pieces to the panel.

Mullion width

Enter the width of the mullions.

Number of mullions

Enter the number of mullions to create on the panel.

Space mullions from

Determines the vertical placement of the horizontal mullion by locating the mullion at a distance measured from the top, middle, or bottom of the arch.

Vertical mullions

Select to add vertical cross pieces to the panel.

Outside corner radius

Enter an arc radius to create rounded corners on the door. Enter 0 (zero) for square corners.

Multiple copies

Select checkbox and click button to create door copies by either enumerating X and Y steps or retrieving information from a Microsoft Excel file.

Export to separate Mastercam files

When checked, outputs door geometry to separate .mcam files, as well as to a directory the user specifies.
