Loft panel

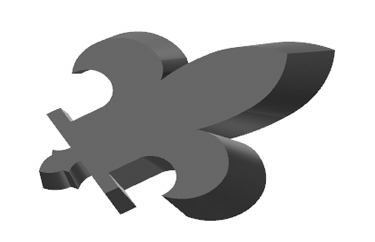

Loft uses a set of closed chains to create one or more new solid bodies, cuts in an existing body, or bosses on an existing body. Mastercam transitions between two or more chains of curves in the order that you select them by capping the first and last chains with solid faces.
What is
the criteria for the selected chains?
- There must be a minimum of two closed, parallel chains.
- Each individual chain of curves must be planar.
- All of the selected chains must follow the same chaining direction.
- You cannot select a chain of curves more than once for a given loft operation.
- A selected chain of curves cannot self-intersect.
