Mtx Class Reference

#include <Mtx.h>

Inheritance diagram for Mtx:

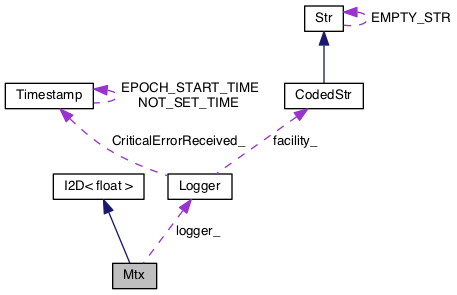

Collaboration diagram for Mtx:

Classes
union	FloatInt

Public Member Functions
	Mtx (Logger &logger, int m=0, int n=0, float initVal=nanf(""), Syslog::Severity severity=Syslog::FAULT)
	Mtx (Logger &logger, int m, int n, float *ptr, Syslog::Severity severity=Syslog::FAULT)
	Mtx (const char *filename, Logger &logger, Syslog::Severity severity=Syslog::FAULT)
	Mtx (const char *filename, Logger &logger, int minN, int maxN, Syslog::Severity severity=Syslog::FAULT)
	Mtx (const Mtx &rhs)
virtual	~Mtx ()
void	setSize (int m, int n)
void	clear ()
Mtx &	operator= (const Mtx &rhs)
Mtx &	operator*= (const float rhs)
Mtx &	operator+= (const Mtx &rhs)
Mtx &	operator+= (const float rhs)
Mtx &	operator-= (const Mtx &rhs)
Mtx	operator* (const Mtx &rhs) const
int	getM () const
virtual int	getN () const
virtual float **	getPtr2d (void)
virtual float *	getPtr1d (void)
float *	operator[] (int index)
void	set (int indexM, int indexN, float value)
void	setInt (int indexM, int indexN, int value)
float	get (int indexM, int indexN) const
int	getInt (int indexM, int indexN) const
void	setFromPtr (const int m, const int n, const void *ptr)
float	operator() (int indexM, int indexN) const
Mtx	subset (int minM=0, int maxM=-1, int minN=0, int maxN=-1) const
bool	write (const char *filename, Logger &logger, int minM=0, int maxM=-1, int minN=0, int maxN=-1, Syslog::Severity severity=Syslog::FAULT)
bool	append (const char *filename, Logger &logger, Syslog::Severity severity=Syslog::FAULT)
bool	valid () const
bool	isUnlimitedN () const
void	setUnlimitedN (bool unlimitedN)
bool	shellSort (int(&comp)(const Mtx &, int, const Mtx &, int))
	Simple sort routine, invented by Donald Shell 1959. More...
Public Member Functions inherited from I2D< float >
virtual	~I2D ()

Static Public Member Functions
static bool	CopyValues (const Mtx &src, int srcStartM, int srcStartN, const Mtx &dst, int dstStartM, int dstStartN, int numM, int numN)
static int	Comp0 (const Mtx &lhs, int lhsJ, const Mtx &rhs, int rhsJ)
	Comparison function for indexM = 0;. More...
static int	Comp1 (const Mtx &lhs, int lhsJ, const Mtx &rhs, int rhsJ)
	Comparison function for indexM = 1;. More...
static int	Comp2 (const Mtx &lhs, int lhsJ, const Mtx &rhs, int rhsJ)
	Comparison function for indexM = 2;. More...
static int	Comp01 (const Mtx &lhs, int lhsJ, const Mtx &rhs, int rhsJ)
	Comparison function for indexM = 0 AND indexM = 1;. More...
static int	Comp02 (const Mtx &lhs, int lhsJ, const Mtx &rhs, int rhsJ)
	Comparison function for indexM = 0 AND indexM = 2;. More...
Static Public Member Functions inherited from I2D< float >
static float **	New2D (int m, int n, bool extra=false)
static void	Delete2D (float **array)

Protected Member Functions
void	prepareValueForModification ()
Protected Member Functions inherited from I2D< float >
	I2D ()
	I2D (const I2D &)

Protected Attributes
int	m_
int	n_
float **	value_
Logger &	logger_
Syslog::Severity	severity_
bool	unlimitedN_

Constructor & Destructor Documentation

Mtx::Mtx	(	Logger &	logger,
		int	m = 0,
		int	n = 0,
		float	initVal = nanf( "" ),
		Syslog::Severity	severity = Syslog::FAULT
	)

References setSize(), and value_.

Mtx::Mtx	(	Logger &	logger,
		int	m,
		int	n,
		float *	ptr,
		Syslog::Severity	severity = Syslog::FAULT
	)

References setSize(), and value_.

Mtx::Mtx	(	const char *	filename,
		Logger &	logger,
		Syslog::Severity	severity = Syslog::FAULT
	)

References Syslog::FAULT, FileIOStream::isReadable(), and MtxIOStream::read().

Mtx::Mtx	(	const char *	filename,
		Logger &	logger,
		int	minN,
		int	maxN,
		Syslog::Severity	severity = Syslog::FAULT
	)

References FileIOStream::isReadable(), and MtxIOStream::read().

Mtx::Mtx

(

const Mtx &

rhs

)

Mtx::~Mtx ( )

virtual

References clear().

Member Function Documentation

bool Mtx::append	(	const char *	filename,
		Logger &	logger,
		Syslog::Severity	severity = Syslog::FAULT
	)

References MtxIOStream::append(), FileIOStream::isReadable(), and FileIOStream::isWritable().

Referenced by NavChartDb::appendToContour(), and NavChartDb::appendToSoundings().

void Mtx::clear

(

)

References I2D< float >::Delete2D(), m_, n_, and value_.

Referenced by operator=(), setSize(), and ~Mtx().

int Mtx::Comp0 ( const Mtx &  lhs, int  lhsJ, const Mtx &  rhs, int  rhsJ  )

static

Comparison function for indexM = 0;.

References AuvMath::Sign().

Referenced by Comp01(), and Comp02().

int Mtx::Comp01 ( const Mtx &  lhs, int  lhsJ, const Mtx &  rhs, int  rhsJ  )

static

Comparison function for indexM = 0 AND indexM = 1;.

References Comp0(), and Comp1().

Referenced by Mtx_Test::testShellSort().

int Mtx::Comp02 ( const Mtx &  lhs, int  lhsJ, const Mtx &  rhs, int  rhsJ  )

static

Comparison function for indexM = 0 AND indexM = 2;.

References Comp0(), and Comp2().

Referenced by Mtx_Test::testShellSort().

int Mtx::Comp1 ( const Mtx &  lhs, int  lhsJ, const Mtx &  rhs, int  rhsJ  )

static

Comparison function for indexM = 1;.

References AuvMath::Sign().

Referenced by Comp01(), and Mtx_Test::testShellSort().

int Mtx::Comp2 ( const Mtx &  lhs, int  lhsJ, const Mtx &  rhs, int  rhsJ  )

static

Comparison function for indexM = 2;.

References AuvMath::Sign().

Referenced by Comp02(), and NavChartDb::doIndexing().

bool Mtx::CopyValues ( const Mtx &  src, int  srcStartM, int  srcStartN, const Mtx &  dst, int  dstStartM, int  dstStartN, int  numM, int  numN  )

static

References m_, n_, and value_.

Referenced by shellSort().

float Mtx::get ( int  indexM, int  indexN  ) const

inline

References m_, n_, and value_.

Referenced by HFRadarCompactModelForecaster::publishForecast(), and NavChartDb::updateClosest().

int Mtx::getInt ( int  indexM, int  indexN  ) const

inline

References Mtx::FloatInt::float_, Mtx::FloatInt::int_, m_, n_, and value_.

Referenced by NavChartDb::updateClosest().

int Mtx::getM ( ) const

inlinevirtual

Implements I2D< float >.

References m_.

Referenced by MtxIOStream::append(), HFRadarModelCalc::getLat(), HFRCMSpaceInterpolator::getLowerLeftCorner(), HFRCMReconstructedInterpolator::getLowerLeftCorner(), HFRadarModelCalc::HFRadarModelCalc(), HFRCMSpaceInterpolator::initialize(), HFRCMReconstructedInterpolator::initialize(), NavChartDb::loadCoverage(), NavChartDb::loadDepths(), HFRadarCompactModelForecaster::loadHistory(), HFRadarModelCalc::lookup(), HFRCMSpaceInterpolator::lookupEmpiricalOrthogonalFunctions(), Rowe_600::readMATv4float32(), HFRCMReconstructedInterpolator::reproject(), HFRadarModelCalc::run(), HFRCMTimeInterpolator::run(), HFRCMReconstructedInterpolator::updateExpansionCoefficients(), MtxOutStream::write(), MtxIOStream::write(), and HFRadarModelCalc::~HFRadarModelCalc().

virtual int Mtx::getN ( ) const

inlinevirtual

Implements I2D< float >.

References n_.

Referenced by MtxIOStream::append(), NavChartDb::appendToCoverage(), HFRadarCompactModelForecaster::forecast(), HFRadarModelCalc::getLon(), HFRCMSpaceInterpolator::getLowerLeftCorner(), HFRCMReconstructedInterpolator::getLowerLeftCorner(), HFRadarModelCalc::HFRadarModelCalc(), HFRCMSpaceInterpolator::initialize(), HFRCMReconstructedInterpolator::initialize(), HFRadarCompactModelForecaster::loadHistory(), HFRadarModelCalc::lookup(), HFRCMSpaceInterpolator::lookupEmpiricalOrthogonalFunctions(), Rowe_600::readMATv4float32(), HFRCMReconstructedInterpolator::reproject(), HFRadarModelCalc::run(), HFRCMTimeInterpolator::run(), NavChartDb::updateClosest(), HFRCMReconstructedInterpolator::updateExpansionCoefficients(), MtxOutStream::write(), and MtxIOStream::write().

virtual float* Mtx::getPtr1d ( void  )

inlinevirtual

Implements I2D< float >.

References value_.

virtual float** Mtx::getPtr2d ( void  )

inlinevirtual

Implements I2D< float >.

References value_.

bool Mtx::isUnlimitedN ( ) const

inline

References unlimitedN_.

Referenced by MtxOutStream::write(), and MtxIOStream::write().

float Mtx::operator() ( int  indexM, int  indexN  ) const

inline

References m_, n_, and value_.

Mtx Mtx::operator*

(

const Mtx &

rhs

)

const

References logger_, m_, n_, setSize(), severity_, Logger::syslog(), and value_.

Mtx & Mtx::operator*=

(

const float

rhs

)

References m_, n_, prepareValueForModification(), and value_.

Mtx & Mtx::operator+=

(

const Mtx &

rhs

)

References logger_, m_, n_, prepareValueForModification(), severity_, Logger::syslog(), and value_.

Mtx & Mtx::operator+=

(

const float

rhs

)

References m_, n_, prepareValueForModification(), and value_.

Mtx & Mtx::operator-=

(

const Mtx &

rhs

)

References logger_, m_, n_, prepareValueForModification(), severity_, Logger::syslog(), and value_.

Mtx & Mtx::operator=

(

const Mtx &

rhs

)

References clear(), m_, n_, and value_.

float* Mtx::operator[] ( int  index )

inline

References prepareValueForModification(), and value_.

void Mtx::prepareValueForModification ( )

protected

References m_, n_, setSize(), and value_.

Referenced by operator*=(), operator+=(), operator-=(), and operator[]().

void Mtx::set ( int  indexM, int  indexN, float  value  )

inline

References m_, n_, and value_.

Referenced by HFRCMSpaceInterpolator::lookupEmpiricalOrthogonalFunctions(), HFRCMTimeInterpolator::lookupExpansionCoefficients(), Rowe_600::processEnsemble(), Rowe_600::readBottomTrackMatrix(), Rowe_600::readMATv4float32(), and NavChartDb::updateClosest().

void Mtx::setFromPtr ( const int  m, const int  n, const void *  ptr  )

inline

References setSize(), and value_.

Referenced by Rowe_600::readMATv4float32().

void Mtx::setInt ( int  indexM, int  indexN, int  value  )

inline

References Mtx::FloatInt::float_, Mtx::FloatInt::int_, m_, n_, and value_.

Referenced by NavChartDb::appendToContour(), NavChartDb::appendToSoundings(), and NavChartDb::doIndexing().

void Mtx::setSize	(	int	m,
		int	n
	)

References clear(), m_, n_, I2D< float >::New2D(), and value_.

Referenced by Mtx(), operator*(), prepareValueForModification(), MtxIOStream::read(), and setFromPtr().

void Mtx::setUnlimitedN ( bool  unlimitedN )

inline

References unlimitedN_.

bool Mtx::shellSort

(

int(&)(const Mtx &, int, const Mtx &, int)

comp

)

Simple sort routine, invented by Donald Shell 1959.

Returns true if the data is modified.

Returns true if the data is modified. Improved with gap sequence by Ciura. It is better than O(n^[4/3]). See Ciura, Marcin (2001). "Best Increments for the Average Case of Shellsort". In Freiwalds, Rusins. Proceedings of the 13th International Symposium on Fundamentals of Computation Theory. London: Springer-Verlag. pp. 106–117. ISBN 3-540-42487-3.

References CopyValues(), logger_, m_, n_, and severity_.

Referenced by Mtx_Test::testShellSort().

Mtx Mtx::subset	(	int	minM = 0,
		int	maxM = -1,
		int	minN = 0,
		int	maxN = -1
	)		const

References logger_, m_, n_, severity_, and value_.

Referenced by HFRadarCompactModelForecaster::forecast(), Rowe_600::readBottomTrackMatrix(), and HFRadarModelCalc::run().

bool Mtx::valid ( ) const

inline

References m_, and n_.

bool Mtx::write	(	const char *	filename,
		Logger &	logger,
		int	minM = 0,
		int	maxM = -1,
		int	minN = 0,
		int	maxN = -1,
		Syslog::Severity	severity = Syslog::FAULT
	)

References FileIOStream::isWritable(), and MtxIOStream::write().

Referenced by NavChartDb::appendToCoverage(), NavChartDb::createContour(), NavChartDb::createSoundings(), and NavChartDb::doIndexing().

Member Data Documentation

Logger& Mtx::logger_

protected

Referenced by operator*(), operator+=(), operator-=(), shellSort(), and subset().

int Mtx::m_

protected

Referenced by clear(), CopyValues(), get(), getInt(), getM(), operator()(), operator*(), operator*=(), operator+=(), operator-=(), operator=(), prepareValueForModification(), set(), setInt(), setSize(), shellSort(), subset(), and valid().

int Mtx::n_

protected

Referenced by clear(), CopyValues(), get(), getInt(), getN(), operator()(), operator*(), operator*=(), operator+=(), operator-=(), operator=(), prepareValueForModification(), set(), setInt(), setSize(), shellSort(), subset(), and valid().

Syslog::Severity Mtx::severity_

protected

Referenced by operator*(), operator+=(), operator-=(), shellSort(), and subset().

bool Mtx::unlimitedN_

protected

Referenced by isUnlimitedN(), and setUnlimitedN().

float** Mtx::value_

protected

Referenced by clear(), CopyValues(), get(), getInt(), getPtr1d(), getPtr2d(), Mtx(), operator()(), operator*(), operator*=(), operator+=(), operator-=(), operator=(), operator[](), prepareValueForModification(), set(), setFromPtr(), setInt(), setSize(), and subset().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/data/Mtx.h
• /Volumes/ubuntu_share/lrauv-application/Source/data/Mtx.cpp
