A very compact, very simple netCDF reader with a minimal feature set. More...

#include <NetCdfReader.h>

Inheritance diagram for NetCdfReader:

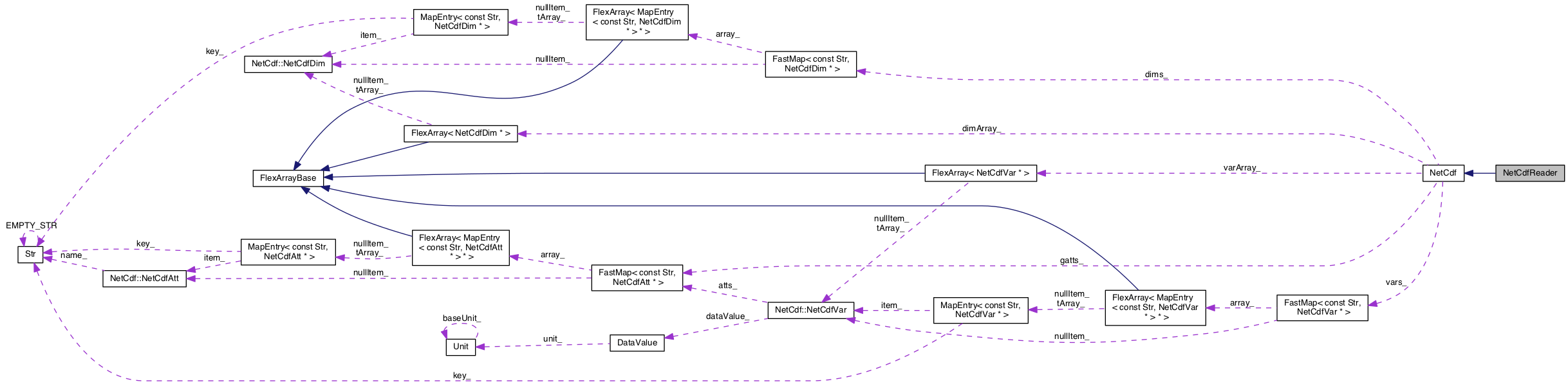

Collaboration diagram for NetCdfReader:

Public Member Functions
virtual	~NetCdfReader ()
	Destructor. More...

bool	isOk () const
	Indicates intialization success. More...

bool	read (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const size_t indices[])
	Reads the value of the variable at the indices as the indicated type Returns true if no error. More...

bool	read1D (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1)
	Reads the value of the variable at the 1D index as the specified type Returns true if no error. More...

bool	read2D (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1, const unsigned long index2)
	Reads the value of the variable at the 2D index as the specified type Returns true if no error. More...

bool	read3D (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1, const unsigned long index2, const unsigned long index3)
	Reads the value of the variable at the 3D index as the specified type Returns true if no error. More...

bool	read4D (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1, const unsigned long index2, const unsigned long index3, const unsigned long index4)
	Reads the value of the variable at the 4D index as the specified type Returns true if no error. More...

bool	read1DArray (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1a, const unsigned long index1b)
	Reads a 1D range of the variable between a pair of indices (a <= index <= b) into an existing 1D array of the specified type Returns true if no error. More...

bool	read2DArray (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1a, const unsigned long index1b, const unsigned long index2a, const unsigned long index2b)
	Reads a 2D range of the variable between 2 pairs of indices (a <= index <= b) into an existing 2D array of the specified type Returns true if no error. More...

bool	read3DArray (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1a, const unsigned long index1b, const unsigned long index2a, const unsigned long index2b, const unsigned long index3a, const unsigned long index3b)
	Reads a 3D range of the variable between 3 pairs of indices (a <= index <= b) into an existing 3D array of the specified type Returns true if no error. More...

bool	read4DArray (void *assignTo, const NetCdfType assignType, const NetCdfVar &var, const unsigned long index1a, const unsigned long index1b, const unsigned long index2a, const unsigned long index2b, const unsigned long index3a, const unsigned long index3b, const unsigned long index4a, const unsigned long index4b)
	Reads a 4D range of the variable between 4 pairs of indices (a <= index <= b) into an existing 3D array of the specified type Returns true if no error. More...

bool	readStr (Str &assignTo, const NetCdfAtt &att)
	Reads the value of the attribute as a Str Returns true if no error. More...

Public Member Functions inherited from NetCdf
virtual	~NetCdf ()
	Destructor. More...

const NetCdfDimArray &	getDimArray ()
	Returns the dimensions. More...

const NetCdfAtts &	getGlobalAtts ()
	Returns the global attributes. More...

const NetCdfVars &	getVars ()
	Returns the variables. More...

NetCdfDim *	findDim (const Str &name)
	Finds a dimension by name Returns NULL if error. More...

NetCdfAtt *	findAtt (const Str &name)
	Finds a global attribute by name NetCdfAtt* invalidValue_;. More...

NetCdfVar *	findVar (const Str &name)
	Finds a variable by name Returns NULL if error. More...

NetCdfAtt *	findAtt (NetCdfVar &var, const Str &name)
	Finds a variable's attribute by name Returns NULL if error. More...

const char *	status ()

Static Public Member Functions
static NetCdfReader *	NewNetCdfReader (const char *fileName)
	Returns an newNetCdfReader of a NetCdfReader for a file. More...

Protected Member Functions
	NetCdfReader (const char *fileName)
	Protected Constructor. More...

bool	initialize (const char *fileName)
	Opens a NetCdfReader for a file Returns true if no error. More...

Protected Member Functions inherited from NetCdf
	NetCdf ()
	Protected constructor. More...

NetCdfDim *	findDim (NetCdfDims &dims, const Str &name)
	Finds a dimension by name in the set of NetCdfDims Returns NULL if error. More...

NetCdfAtt *	findAtt (NetCdfAtts &atts, const Str &name)
	Finds a global attribute by name in the set of NetCdfAtts Returns NULL if error. More...

NetCdfVar *	findVar (NetCdfVars &vars, const Str &name)
	Finds a variable by name in the set of NetCdfVars Returns NULL if error. More...

Protected Attributes
bool	ok_

Protected Attributes inherited from NetCdf
int	status_

int	ncId_

NetCdfDimArray	dimArray_

NetCdfDims	dims_

NetCdfAtts	gatts_

NetCdfVarArray	varArray_

NetCdfVars	vars_

Additional Inherited Members
Public Types inherited from NetCdf
enum	NetCdfType { NC_ABSENT_TYPE = 0, NC_BYTE_TYPE = NC_BYTE, NC_CHAR_TYPE = NC_CHAR, NC_SHORT_TYPE = NC_SHORT, NC_INT_TYPE = NC_INT, NC_FLOAT_TYPE = NC_FLOAT, NC_DOUBLE_TYPE = NC_DOUBLE, NC_UBYTE_TYPE = NC_UBYTE, NC_USHORT_TYPE = NC_USHORT, NC_UINT_TYPE = NC_UINT, NC_INT64_TYPE = NC_INT64, NC_UINT64_TYPE = NC_UINT64, NC_STRING_TYPE = NC_STRING }

typedef FastMap< const Str, NetCdfDim * >	NetCdfDims

typedef FlexArray< NetCdfDim * >	NetCdfDimArray

typedef FastMap< const Str, NetCdfAtt * >	NetCdfAtts

typedef FastMap< const Str, NetCdfVar * >	NetCdfVars

typedef FlexArray< NetCdfVar * >	NetCdfVarArray

Static Public Attributes inherited from NetCdf
static unsigned int	NetCdfTypeSize_ [NC_DOUBLE_TYPE+1] = {0, 1, 1, 2, 4, 4, 8 }

Detailed Description

A very compact, very simple netCDF reader with a minimal feature set.

Constructor & Destructor Documentation

NetCdfReader::~NetCdfReader ( )

virtual

Destructor.

References NetCdf::ncId_.

NetCdfReader::NetCdfReader ( const char * fileName )

protected

Protected Constructor.

References initialize(), and ok_.

Referenced by NewNetCdfReader().

Member Function Documentation

bool NetCdfReader::initialize ( const char * fileName )

protected

Opens a NetCdfReader for a file Returns true if no error.

Opens a NetCdfReader for a file.

References NetCdf::NetCdfAtt::attId_, NetCdf::NetCdfVar::atts_, NetCdf::dimArray_, NetCdf::NetCdfDim::dimId_, NetCdf::NetCdfVar::dimIds_, NetCdf::dims_, NetCdf::NetCdfDim::dimSize_, NetCdf::gatts_, NetCdf::NetCdfAtt::name_, NC_MAX_NAME, NetCdf::ncId_, NetCdf::NetCdfVar::nDims_, NetCdf::NetCdfAtt::nelems_, NetCdf::NetCdfAtt::netCdfType_, NetCdf::NetCdfVar::netCdfType_, ok_, FastMap< S, T >::put(), FlexArray< T >::set(), NetCdf::status_, NetCdf::varArray_, NetCdf::NetCdfAtt::varId_, NetCdf::NetCdfVar::varId_, and NetCdf::vars_.

Referenced by NetCdfReader().

bool NetCdfReader::isOk ( ) const

inline

Indicates intialization success.

References ok_.

Referenced by NewNetCdfReader().

NetCdfReader * NetCdfReader::NewNetCdfReader ( const char * fileName )

static

Returns an newNetCdfReader of a NetCdfReader for a file.

References isOk(), and NetCdfReader().

Referenced by EnvSimulator::configureSensors(), NetCdfReader_Test::testConstructorDestructor(), NetCdfReader_Test::testFindAttsDimsVars(), NetCdfReader_Test::testReadFloatVar1D(), NetCdfReader_Test::testReadFloatVar1DRange(), NetCdfReader_Test::testReadFloatVar2D(), NetCdfReader_Test::testReadFloatVar2DRange(), and NetCdfReader_Test::testReadStringAtt().

bool NetCdfReader::read	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const size_t	indices[]
	)

Reads the value of the variable at the indices as the indicated type Returns true if no error.

References NetCdf::NC_BYTE_TYPE, NetCdf::NC_CHAR_TYPE, NetCdf::NC_DOUBLE_TYPE, NetCdf::NC_FLOAT_TYPE, NetCdf::NC_INT64_TYPE, NetCdf::NC_INT_TYPE, NetCdf::NC_SHORT_TYPE, NetCdf::NC_STRING_TYPE, NetCdf::NC_UBYTE_TYPE, NetCdf::NC_UINT64_TYPE, NetCdf::NC_UINT_TYPE, NetCdf::NC_USHORT_TYPE, NetCdf::ncId_, NetCdf::status_, and NetCdf::NetCdfVar::varId_.

Referenced by read1D(), read2D(), read3D(), and read4D().

bool NetCdfReader::read1D	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1
	)

Reads the value of the variable at the 1D index as the specified type Returns true if no error.

Reads the value of the variable at the 1D index as the indicated type Returns true if no error.

References read().

Referenced by read1DArray(), and read2D().

bool NetCdfReader::read1DArray	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1a,
		const unsigned long	index1b
	)

Reads a 1D range of the variable between a pair of indices (a <= index <= b) into an existing 1D array of the specified type Returns true if no error.

Reads a 1D range of the variable between a pair of indices (a <= index <= b) into an existing 1D array of the indicated type Returns true if no error.

References NetCdf::NetCdfTypeSize_, and read1D().

Referenced by EnvSimulator::configureSensors().

bool NetCdfReader::read2D	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1,
		const unsigned long	index2
	)

Reads the value of the variable at the 2D index as the specified type Returns true if no error.

Reads the value of the variable at the 2D index as the indicated type Returns true if no error.

References NetCdf::NetCdfVar::nDims_, read(), and read1D().

Referenced by read2DArray(), and read3D().

bool NetCdfReader::read2DArray	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1a,
		const unsigned long	index1b,
		const unsigned long	index2a,
		const unsigned long	index2b
	)

Reads a 2D range of the variable between 2 pairs of indices (a <= index <= b) into an existing 2D array of the specified type Returns true if no error.

Reads a 2D range of the variable between 2 pairs of indices (a <= index <= b) into an existing 2D array of the indicated type Returns true if no error.

References NetCdf::NetCdfTypeSize_, and read2D().

Referenced by NetCdfReader_Test::testReadFloatVar2DRange().

bool NetCdfReader::read3D	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1,
		const unsigned long	index2,
		const unsigned long	index3
	)

Reads the value of the variable at the 3D index as the specified type Returns true if no error.

Reads the value of the variable at the 3D index as the indicated type Returns true if no error.

References NetCdf::NetCdfVar::nDims_, read(), and read2D().

Referenced by read3DArray(), and read4D().

bool NetCdfReader::read3DArray	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1a,
		const unsigned long	index1b,
		const unsigned long	index2a,
		const unsigned long	index2b,
		const unsigned long	index3a,
		const unsigned long	index3b
	)

Reads a 3D range of the variable between 3 pairs of indices (a <= index <= b) into an existing 3D array of the specified type Returns true if no error.

Reads a 3D range of the variable between 3 pairs of indices (a <= index <= b) into an existing 3D array of the indicated type Returns true if no error.

References NetCdf::NetCdfTypeSize_, and read3D().

bool NetCdfReader::read4D	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1,
		const unsigned long	index2,
		const unsigned long	index3,
		const unsigned long	index4
	)

Reads the value of the variable at the 4D index as the specified type Returns true if no error.

Reads the value of the variable at the 4D index as the indicated type Returns true if no error.

References NetCdf::NetCdfVar::nDims_, read(), and read3D().

Referenced by read4DArray().

bool NetCdfReader::read4DArray	(	void *	assignTo,
		const NetCdfType	assignType,
		const NetCdfVar &	var,
		const unsigned long	index1a,
		const unsigned long	index1b,
		const unsigned long	index2a,
		const unsigned long	index2b,
		const unsigned long	index3a,
		const unsigned long	index3b,
		const unsigned long	index4a,
		const unsigned long	index4b
	)

Reads a 4D range of the variable between 4 pairs of indices (a <= index <= b) into an existing 3D array of the specified type Returns true if no error.

Reads a 4D range of the variable between 4 pairs of indices (a <= index <= b) into an existing 4D array of the indicated type Returns true if no error.

References NetCdf::NetCdfTypeSize_, and read4D().

Referenced by EnvSimulator::interpolate().
