ThreadHandler Class Reference

A ThreadHandler is a Handler which runs in its own thread. More...

#include <ThreadHandler.h>

Inheritance diagram for ThreadHandler:

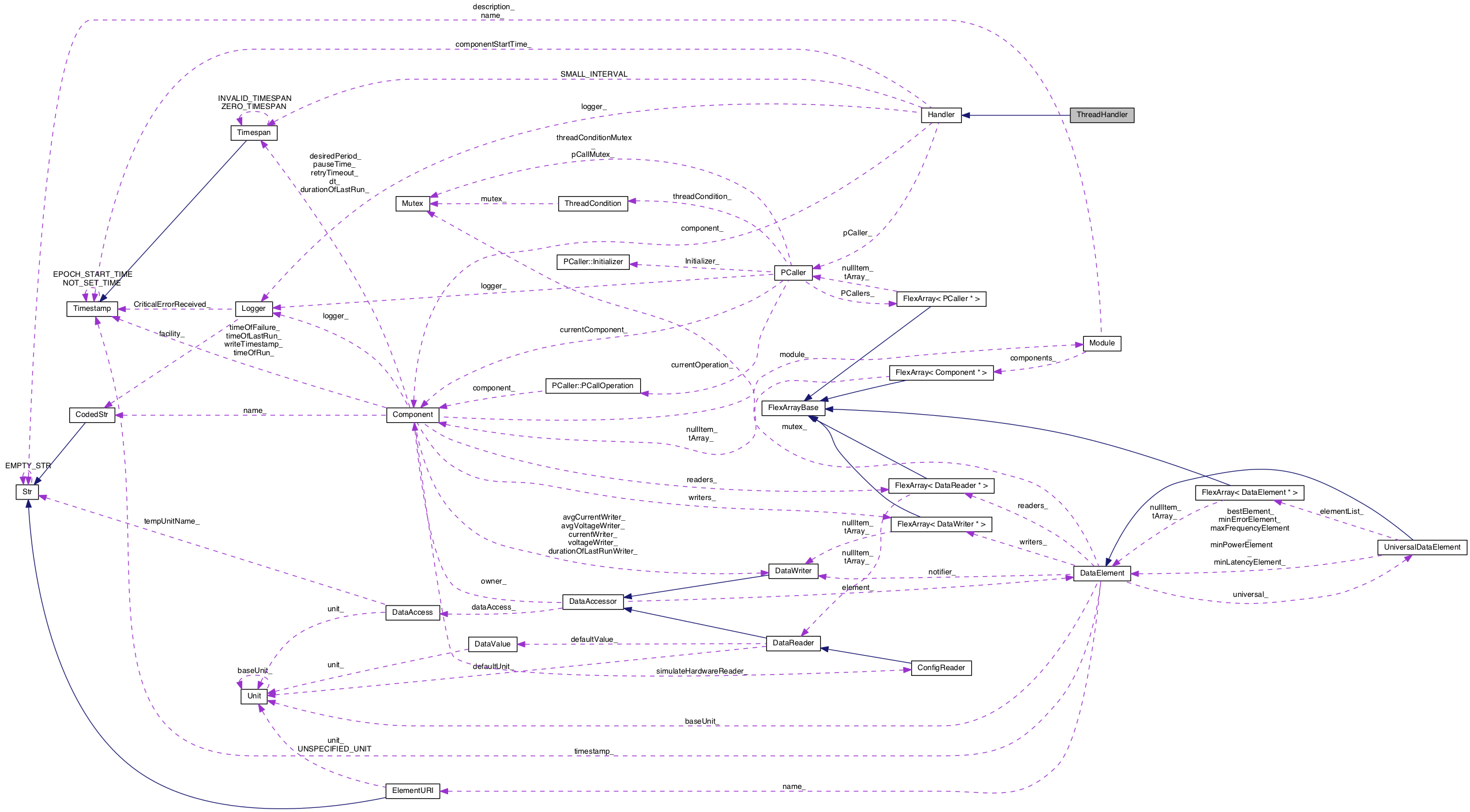

Collaboration diagram for ThreadHandler:

Public Member Functions
	ThreadHandler (Component &inComponent, const Str &name, bool idleThread)
	Constructor. More...
virtual	~ThreadHandler ()
	Destructor. More...
virtual void	run ()
	Overrides Handler::run(). More...
void	cleanup (void)
	A member function for the cleanup callback (called from threadCleanup) More...
virtual void	runInThread ()
	The new replacement for Handler::run() which runs in the thread., Run from the static threadEntryPoint. More...
virtual bool	continueLoop (void)
	Evaluates additional thread-specific continue conditions. More...
virtual void	shutdown (void)
	Cleanup the component (typically called from outside component) More...
void	exitThread (void)
	Called by the thread to end itself (pthread_Exit) More...
void	cancelThread (void)
	A "soft exit", requests the thread end on next loop. More...
void	joinThread (void)
	Join the thread. More...
void	killThread (void)
	End the thread immediately (uses pthread_cancel) More...
const pthread_t &	getThreadId ()
Public Member Functions inherited from Handler
	Handler (Component &inComponent, const Str &name, bool idleThread=false)
	Constructor. More...
virtual	~Handler ()
	Destructor. More...
virtual void	runOnce (void)
	Virtual function run only on first iteration of handler. More...
virtual void	runBetween (void)
	Virtual function run after the first iteration of the handler. More...
virtual bool	isRunning (void)
	True if handler is running. More...
const Str &	getName ()
void	setAsLogHandler (bool logHandler)
void	setAsControlLoopHandler (bool controlLoopHandler)

Static Public Member Functions
static int	PthreadJoinTimeout (pthread_t wid, unsigned int msecs, Component &component)
static void *	ThreadEntryPoint (void *me)
	The entry point for the new thread. A static function. More...
static void	ThreadCleanup (void *me)
	A static entry point for a cleanup callback. More...
Static Public Member Functions inherited from Handler
static bool	IsFastSimAllowed ()

Protected Attributes
bool	cancelled_
	Keeps track of the "cancelled" signal from cancelThread. More...
Protected Attributes inherited from Handler
Component &	component_
	The "handled" Component. More...
Timestamp	componentStartTime_
	Keep track of when the component is supposed to start next. More...
Logger	logger_
PCaller *	pCaller_
	Used for making protected calls. More...
bool	running_

Private Attributes
pthread_t	threadID_
	The thread ID. More...
pthread_attr_t	threadAttributes_
	the thread attributes More...

Additional Inherited Members
Static Protected Attributes inherited from Handler
static const Timespan	SMALL_INTERVAL = Timespan::FromMicros( 800 )

Detailed Description

A ThreadHandler is a Handler which runs in its own thread.

This is the primary abstraction for a "thread" in this software. When wrapped around a Component, this handler spins off a separate thread and executes the component in it.

Constructor & Destructor Documentation

ThreadHandler::ThreadHandler	(	Component &	inComponent,
		const Str &	name,
		bool	idleThread
	)

Constructor.

Parameters

inComponent	Component being handled, passed to Handler
name	Name for this (fed to its logger_)
idleThread	true if the thread wrapper for the component should be ile priority

References threadAttributes_.

ThreadHandler::~ThreadHandler ( )

virtual

Destructor.

Desctructor.

References joinThread(), killThread(), and threadAttributes_.

Member Function Documentation

void ThreadHandler::cancelThread

(

void

)

A "soft exit", requests the thread end on next loop.

End this thread.

References cancelled_, Syslog::INFO, Handler::logger_, and Logger::syslog().

Referenced by runInThread(), and shutdown().

void ThreadHandler::cleanup

(

void

)

A member function for the cleanup callback (called from threadCleanup)

References Handler::component_, and Component::uninitialize().

bool ThreadHandler::continueLoop ( void  )

virtual

Evaluates additional thread-specific continue conditions.

Supplemental end conditions.

Reimplemented from Handler.

References cancelled_, and Handler::continueLoop().

void ThreadHandler::exitThread

(

void

)

Called by the thread to end itself (pthread_Exit)

Exit this thread.

References threadID_.

Referenced by shutdown().

const pthread_t& ThreadHandler::getThreadId ( )

inline

References threadID_.

void ThreadHandler::joinThread

(

void

)

Join the thread.

References Handler::component_, PthreadJoinTimeout(), and threadID_.

Referenced by shutdown(), and ~ThreadHandler().

void ThreadHandler::killThread

(

void

)

End the thread immediately (uses pthread_cancel)

Send a kill signal to thread.

exitThread waits for the component to yield before ending the thread. killThread interrupts the thread.

References threadID_.

Referenced by ~ThreadHandler().

int ThreadHandler::PthreadJoinTimeout ( pthread_t  wid, unsigned int  msecs, Component &  component  )

static

References Str::cStr(), WaitData::done_, get_ticks(), Component::getLogger(), Component::getName(), join_timeout_helper(), PTHREAD_JOIN_POLL_INTERVAL, Component::segfault(), and sleep_msecs().

Referenced by joinThread().

void ThreadHandler::run ( void  )

virtual

Overrides Handler::run().

Launch thread, run component in that thread.

Contains the actual launch of the new thread, then returns.

Reimplemented from Handler.

References threadAttributes_, ThreadEntryPoint(), and threadID_.

void ThreadHandler::runInThread ( void  )

virtual

The new replacement for Handler::run() which runs in the thread., Run from the static threadEntryPoint.

This is essentially "run", but it happens in the thread.

This in turn runs Handler::run() with some thread-specific entry and exit code.

References cancelThread(), Syslog::INFO, Handler::logger_, Handler::run(), Logger::syslog(), and ThreadCleanup().

void ThreadHandler::shutdown ( void  )

virtual

Cleanup the component (typically called from outside component)

Generic call, inherited from Handler to stop the component.

In this case, means "stop and reap the thread"

Reimplemented from Handler.

References cancelThread(), exitThread(), joinThread(), Handler::shutdown(), and threadID_.

void ThreadHandler::ThreadCleanup ( void *  me )

static

A static entry point for a cleanup callback.

Referenced by runInThread().

void * ThreadHandler::ThreadEntryPoint ( void *  me )

static

The entry point for the new thread. A static function.

This is my static thread entry point.

Referenced by run().

Member Data Documentation

bool ThreadHandler::cancelled_

protected

Keeps track of the "cancelled" signal from cancelThread.

Referenced by cancelThread(), and continueLoop().

pthread_attr_t ThreadHandler::threadAttributes_

private

the thread attributes

Referenced by run(), ThreadHandler(), and ~ThreadHandler().

pthread_t ThreadHandler::threadID_

private

The thread ID.

Referenced by exitThread(), getThreadId(), joinThread(), killThread(), run(), and shutdown().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/process/ThreadHandler.h
• /Volumes/ubuntu_share/lrauv-application/Source/process/ThreadHandler.cpp
