Operation
This page is intended to capture the current deployment of the Live Link Application and help system maintainers get fast access to help troubleshoot parts of the system.
Hosts
| Name | IP Address | Location | Administration Tools | Roles |
|---|---|---|---|---|
teledistributor.shore.mbari.org |
134.89.5.10 | MBARI Virtual Machine | SSH | CDN Server, Containerized Livelink Application proxy to livelink.shore.mbari.org |
dp-teleops.dp.mbari.org |
134.89.200.12 | Dell 1U Rack, DP | VNC | Video compositor and streamer for the R/V David Packard |
rc-teleops.rc.mbari.org |
134.89.22.90 | Dell 1U Rack, RC | VNC | Video compositor and streamer for the R/V Rachel Carson |
| IP Transcoder | 134.89.5.12 | Cupola Racks | Web | Transcoder for video format into the Coax Modulator |
| RF Modulator | 134.89.5.11 | Cupola Racks | Web | Modulator for DTV distribution in buildings A & B |
Quick Links
| Application | URL |
|---|---|
| LiveLink | http://livelink.shore.mbari.org |
| AntMedia CDN | http://teledistributor.shore.mbari.org:5080 |
| Docker Container Management (emartin only) | ssh emartin@teledistributor.shore.mbari.org |
| Transcoder Admin | http://134.89.5.12 |
| Modulator Admin | http://134.89.5.11 |
| RC Scene Control | http://rc-teleops.rc.mbari.org:8000/tablet |
| DP Scene Control | http://dp-teleops.dp.mbari.org:8000/tablet |
Note: Many of these links are password protected, please see IS for access if necessary.
Live Link Administration

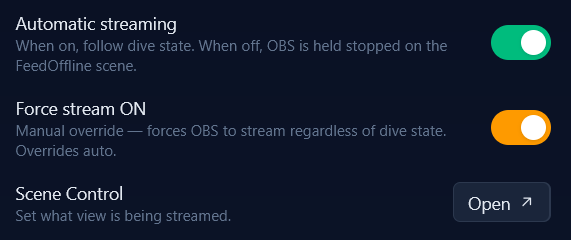

If you have clicked on the button for admin mode and entered the correct password, you will have access to the following UI:
