Annotation Table

Query results are displayed in a table. Clicking on an annotation row will display that annotation on the map and queue up the video player to that observation.

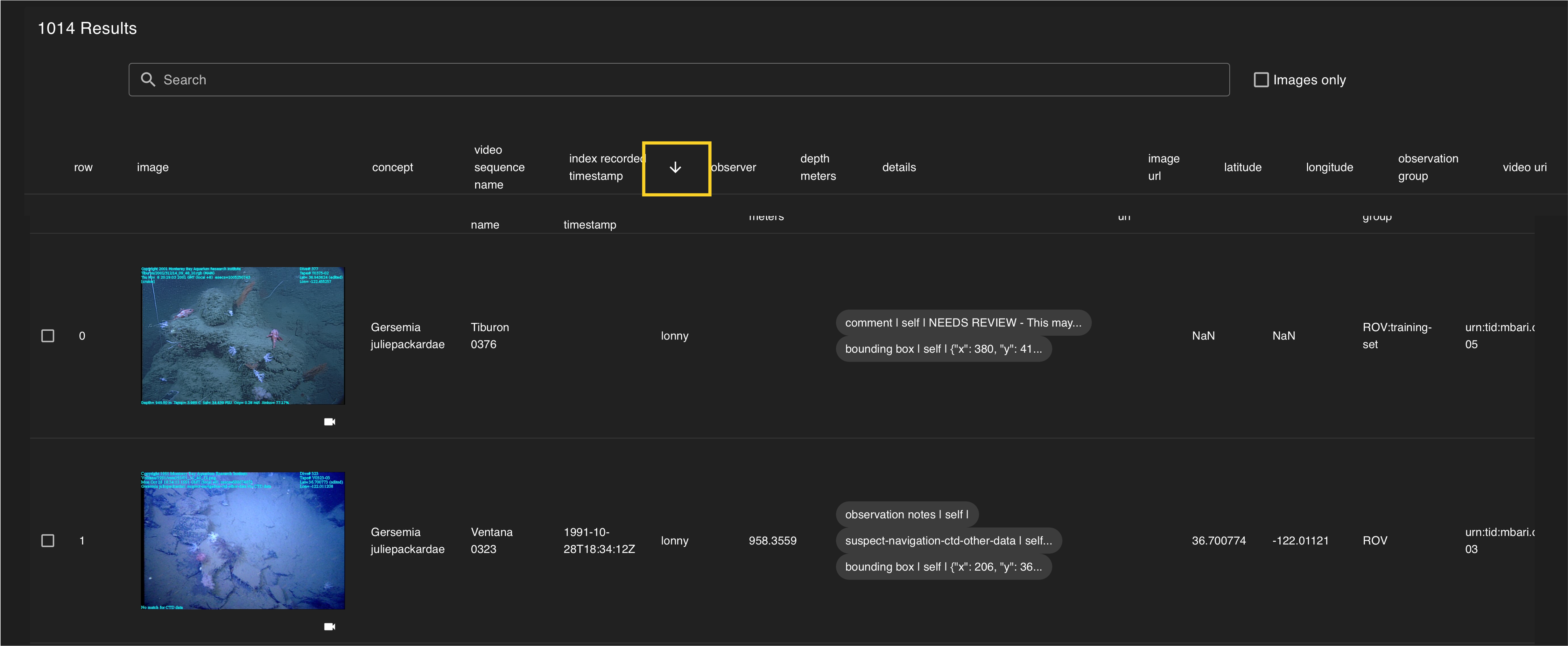

Data Columns

Each column represents a data field (e.g. concept, depth, details). Annotations can be sorted by each of the columns using arrows that appear to the right of each column title.

Annotation Rows

Each row is a unique annotation that meets the query parameters.

Images

If an annotation includes an image, it will be displayed in the corresponding row. Clicking on the image will open it full size in a separate browser window. Under each image there is a video camera icon () that will open the video in a new window.

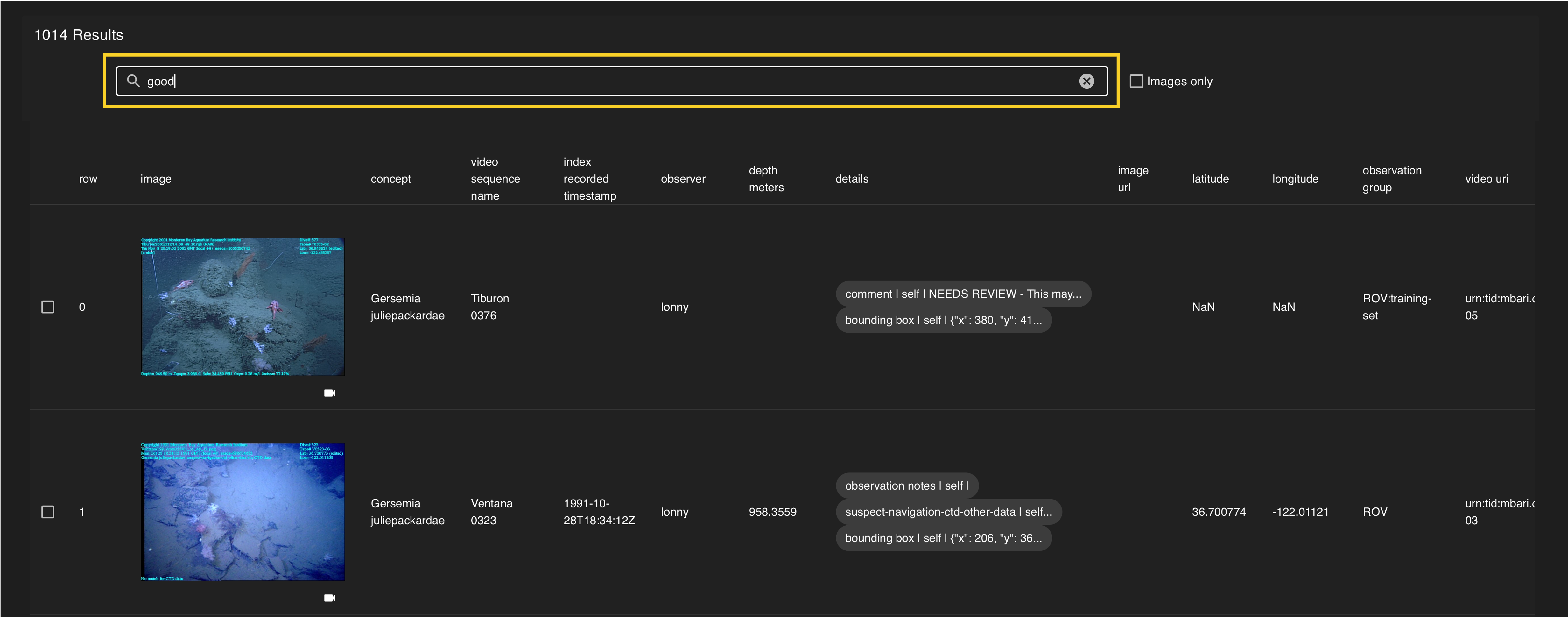

Additional Filtering Post Query

Additional filtering can be made using the search bar at the top of the query table (e.g. typing "good" in the search box will filter only annotations that have good in the details column).

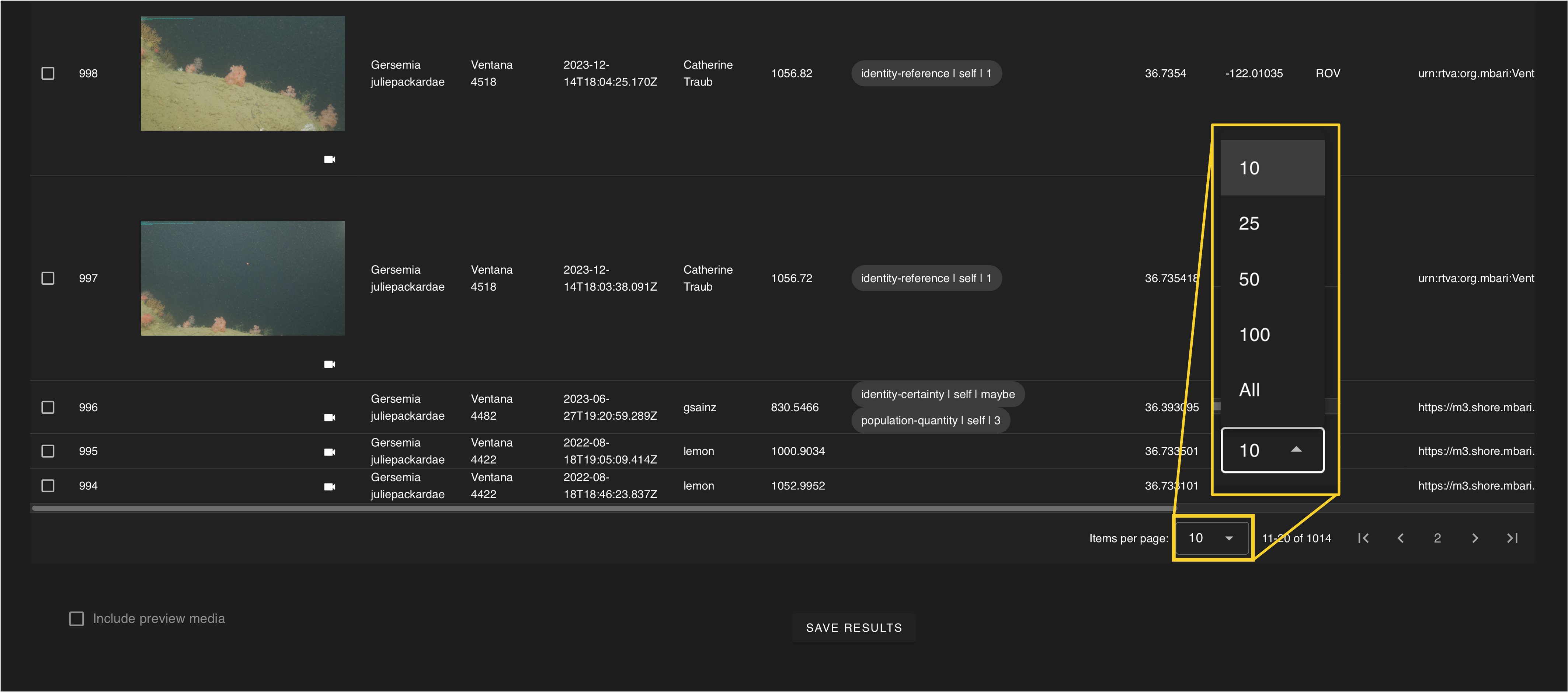

Pagination Toolbar

The table defaults to showing 10 annotations per page. The number of annotations displayed can be changed to 25, 50, 100, or All using the drop-down menu at the bottom of the page. NOTE: Large queries may have decreased performance if all annotations are selected.
