#include <BlobWriter.h>

Inheritance diagram for AbstractBlobWriter:

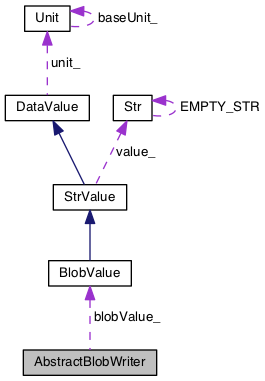

Collaboration diagram for AbstractBlobWriter:

Public Member Functions
virtual	~AbstractBlobWriter ()
	A DataWriter for writing BlobValues, normally created via Component::newBlobWriter() See below for implementation in BlobWriter Also implemented in UniversalWriter::UniversalBlobWriter. More...

virtual bool	write (const DataValue &value, const Timestamp &timestamp)=0

virtual const ElementURI &	getUri (void) const =0

virtual bool	writeBlob (const void *bytes, size_t elements, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Simply writes the binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T , size_t M>
bool	write1DArray (const Unit &unit, T(&x)[M], const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes the array as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T >
bool	write1DClass (const Unit &unit, I1D< T > &i1d, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes data from the class that implements as I1D a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T >
bool	write1DPtr (const Unit &unit, const T *values, int m, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes data from the 1-d pointer as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T , size_t M, size_t N>
bool	write2DArray (const Unit &unit, T(&x)[M][N], const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes the array as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T >
bool	write2DClass (const Unit &unit, I2D< T > &i2d, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes data from the class that implements as I2D a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T >
bool	write2DPtr (const Unit &unit, const T **values, int m, int n, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes data from the 2-d pointer as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T , size_t M, size_t N, size_t O>
bool	write3DArray (const Unit &unit, T(&x)[M][N][O], const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes the array as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T >
bool	write3DClass (const Unit &unit, I3D< T > &i3d, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes data from the class that implements as I3D a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

template<typename T >
bool	write3DPtr (const Unit &unit, const T ***values, int m, int n, int o, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Writes data from the 3-d pointer as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;. More...

Protected Member Functions
	AbstractBlobWriter (const ElementURI &elementUri)

Protected Attributes
BlobValue	blobValue_

Private Member Functions
	AbstractBlobWriter ()

	AbstractBlobWriter (const AbstractBlobWriter &copyFrom)

Constructor & Destructor Documentation

AbstractBlobWriter::AbstractBlobWriter ( const ElementURI & elementUri )

inlineprotected

AbstractBlobWriter::AbstractBlobWriter ( )

private

AbstractBlobWriter::AbstractBlobWriter ( const AbstractBlobWriter & copyFrom )

private

Member Function Documentation

virtual const ElementURI& AbstractBlobWriter::getUri ( void ) const

pure virtual

Implemented in BlobWriter, and UniversalBlobWriter.

Referenced by write1DArray(), write1DPtr(), write2DArray(), write2DPtr(), write3DArray(), and write3DPtr().

virtual bool AbstractBlobWriter::write	(	const DataValue &	value,
		const Timestamp &	timestamp
	)

pure virtual

Implemented in BlobWriter, and UniversalBlobWriter.

Referenced by write1DPtr(), write2DArray(), write2DPtr(), write3DArray(), write3DPtr(), and writeBlob().

template<typename T , size_t M>

bool AbstractBlobWriter::write1DArray	(	const Unit &	unit,
		T(&)	x[M],
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes the array as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References Str::cStr(), ElementURI::getDimension1(), getUri(), and write1DPtr().

Referenced by HFRadarCompactModelForecaster::publishForecast(), and HFRadarModelCalc::writeExpansionCoefficientsToSlate().

template<typename T >

bool AbstractBlobWriter::write1DClass	(	const Unit &	unit,
		I1D< T > &	i1d,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes data from the class that implements as I1D a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References I1D< T >::getM(), I1D< T >::getPtr1d(), and write1DPtr().

Referenced by NAL9602::needFix(), DAT::publishData(), Universal_Test::test1DUniversalBlobReadWrite(), DVL_micro::writeData(), Rowe_600LCM::writeData(), Tracking::writeData(), and Rowe_600::writeData().

template<typename T >

bool AbstractBlobWriter::write1DPtr	(	const Unit &	unit,
		const T *	values,
		int	m,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes data from the 1-d pointer as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References blobValue_, Str::cStr(), ElementURI::getDimension1(), getUri(), BlobValue::setFrom(), and write().

Referenced by write1DArray(), and write1DClass().

template<typename T , size_t M, size_t N>

bool AbstractBlobWriter::write2DArray	(	const Unit &	unit,
		T(&)	x[M][N],
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes the array as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References blobValue_, Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), getUri(), BlobValue::setFrom(), and write().

template<typename T >

bool AbstractBlobWriter::write2DClass	(	const Unit &	unit,
		I2D< T > &	i2d,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes data from the class that implements as I2D a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References I2D< T >::getM(), I2D< T >::getN(), I2D< T >::getPtr2d(), and write2DPtr().

Referenced by HFRadarCompactModelForecaster::publishForecast(), AHRS_3DMGX3::runnable(), AHRS_sp3003D::runnable(), DVL_micro::writeData(), Rowe_600::writeData(), PNI_TCM::writeData(), and HFRadarModelCalc::writeExpansionCoefficientsToSlate().

template<typename T >

bool AbstractBlobWriter::write2DPtr	(	const Unit &	unit,
		const T **	values,
		int	m,
		int	n,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes data from the 2-d pointer as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References blobValue_, Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), getUri(), BlobValue::setFrom(), and write().

Referenced by write2DClass().

template<typename T , size_t M, size_t N, size_t O>

bool AbstractBlobWriter::write3DArray	(	const Unit &	unit,
		T(&)	x[M][N][O],
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes the array as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References blobValue_, Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), ElementURI::getDimension3(), getUri(), BlobValue::setFrom(), and write().

template<typename T >

bool AbstractBlobWriter::write3DClass	(	const Unit &	unit,
		I3D< T > &	i3d,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes data from the class that implements as I3D a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References I3D< T >::getM(), I3D< T >::getN(), I3D< T >::getO(), I3D< T >::getPtr3d(), and write3DPtr().

Referenced by Universal_Test::test3DUniversalBlobReadWrite().

template<typename T >

bool AbstractBlobWriter::write3DPtr	(	const Unit &	unit,
		const T ***	values,
		int	m,
		int	n,
		int	o,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inline

Writes data from the 3-d pointer as a binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References blobValue_, Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), ElementURI::getDimension3(), getUri(), BlobValue::setFrom(), and write().

Referenced by write3DClass().

virtual bool AbstractBlobWriter::writeBlob	(	const void *	bytes,
		size_t	elements,
		const Timestamp &	timestamp = `Timestamp::NOT_SET_TIME`
	)

inlinevirtual

Simply writes the binary blob ElementURI used to declare this DataWriter should have a BLOB TYPE;.

References blobValue_, BlobValue::setFromRaw(), and write().

Referenced by VemcoVR2C::runnable(), and Turbulence_NPS::writeData().

Member Data Documentation

BlobValue AbstractBlobWriter::blobValue_

protected

Referenced by write1DPtr(), write2DArray(), write2DPtr(), write3DArray(), write3DPtr(), and writeBlob().

The documentation for this class was generated from the following file:

/Volumes/ubuntu_share/lrauv-application/Source/data/BlobWriter.h
