DeviceIOStream Class Reference

Wraps a linux device with an IOStream class. More...

#include <DeviceIOStream.h>

Inheritance diagram for DeviceIOStream:

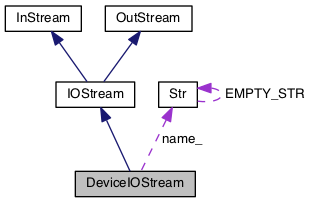

Collaboration diagram for DeviceIOStream:

Public Member Functions
	DeviceIOStream (const char *filename, bool useHardware)
	Constructor 1 argument filename: device filename. More...
	DeviceIOStream (const ConfigURI &configUri, bool useHardware, Logger &logger)
	Constructor 2 argument configUri: device name in vehicle.cfg file argument logger. More...
virtual	~DeviceIOStream ()
virtual IOStream &	read (char *buffer, size_t num)
	reads num bytes from buffer to the output buffer/stream More...
bool	isReadable ()
	indicates whether the stream can actually be read from. More...
virtual bool	eof ()
	Indicates that the end of file can not be reached. More...
virtual OutStream &	write (const char *buffer, size_t num)
	Writes num bytes from buffer to the output buffer/stream. More...
virtual bool	isWritable ()
	indicates that the stream can actually be written to. More...
const char *	getName ()
	returns name of the stream More...
Public Member Functions inherited from InStream
virtual	~InStream ()
	Destructor. More...
InStream &	readChar (signed char &value)
	reads a single byte to the input buffer/stream More...
InStream &	readCharHex (signed char &byte)
	reads a single unsigned char from the input buffer/stream as 2 hex chars More...
InStream &	readUCharHex (unsigned char &byte)
	reads a single unsigned char from the input buffer/stream as 2 hex chars More...
virtual InStream &	readLine (char *buf, unsigned int bufsize)
InStream &	readShort (short &value)
	reads a single short from the input buffer/stream More...
InStream &	readShort (unsigned short &value)
	reads a single short from the input buffer/stream More...
InStream &	readShortHex (short &word)
	reads a single short from the input buffer/stream as 4 hex chars More...
InStream &	readUShortHex (unsigned short &value)
	reads a single unsigned short from the input buffer/stream as 4 hex chars More...
InStream &	readUShortCompact (unsigned short &value)
	reads an unsigned short integer as 1 to 3 bytes, encoded as follows: xxxxxxx0 - 7 bit value, encoded in 1 byte xxxxxx01+1byte - 14 bit value, encoded in 2 bytes xxxxx011+2bytes - 16 bit value, encoded in 3 bytes More...
InStream &	readInt24 (int &medInt)
	reads a 3-byte integer to the input buffer/stream only works on little-endian machines! More...
InStream &	readInt (int &value)
	reads a 4-byte integer to the input buffer/stream More...
InStream &	readLongLong (long long &value)
	reads a 8-byte integer to the input buffer/stream More...
InStream &	readLongLongCompact (long long &value)
	reads a signed long long integer as 1 to 9 bytes, encoded as follows: 0xxxxxxx - 7 bit value, encoded in 1 byte 10xxxxxx+1byte - 14 bit value, encoded in 2 bytes 110xxxxx+2bytes - 21 bit value, encoded in 3 bytes 1110xxxx+3bytes - 28 bit value, encoded in 4 bytes 11110xxx+4bytes - 35 bit value, encoded in 5 bytes 111110xx+5bytes - 42 bit value, encoded in 6 bytes 1111110x+6bytes - 49 bit value, encoded in 7 bytes 11111110+7bytes - 56 bit value, encoded in 8 bytes 11111111+8bytes - 64 bit value, encoded in 9 bytes More...
InStream &	readFloat (float &value)
	reads a 4-byte float to the input buffer/stream More...
InStream &	readFloat2 (float &value)
	reads a 2-byte float to the input buffer/stream More...
InStream &	readFloat3 (float &value)
	reads a 3-byte float to the input buffer/stream More...
InStream &	readDouble (double &value)
	reads a 8-byte double to the input buffer/stream More...
virtual InStream &	readUntil (char *buf, unsigned int num, unsigned char match)
size_t	bytesRead ()
	Indicates the number of bytes read in the last operation. More...
size_t	getBytesRead ()
	Indicates the number of bytes read in the last operation. More...
size_t	getTotalBytesRead ()
	Indicates the total number of bytes read;. More...
Public Member Functions inherited from OutStream
virtual	~OutStream ()
	Destructor. More...
virtual OutStream &	writeHex (const char *buffer, size_t num)
	writes num bytes from buffer to the output buffer/stream as hex chars More...
virtual OutStream &	write (const char *buffer)
	writes zero-terminated buffer to the output buffer/stream More...
virtual OutStream &	writeHex (const char *buffer)
	writes zero-terminated buffer to the output buffer/stream More...
OutStream &	operator<< (const Str buffer)
	write a Str, using stream operator More...
OutStream &	operator<< (const char buffer[])
	write a Str, using stream operator More...
OutStream &	operator<< (const char byte)
	write a Str, using stream operator More...
OutStream &	operator<< (const signed char byte)
	write a Str, using stream operator More...
OutStream &	operator<< (const unsigned char byte)
	write a Str, using stream operator More...
OutStream &	operator<< (const int number)
	write a Str, using stream operator More...
OutStream &	writeChar (const signed char value)
	writes a single byte to the output buffer/stream More...
OutStream &	writeCharHex (const signed char byte)
	writes a single signed char to the output buffer/stream as 2 hex chars More...
OutStream &	writeUCharHex (const unsigned char byte)
	writes a single unsigned char to the output buffer/stream as 2 hex chars More...
OutStream &	writeInteger (const int number, const unsigned int radix=10)
	writes an integer as a base-radix string More...
OutStream &	writeNumber (const double number, const unsigned int radix=10)
OutStream &	writeShort (const short value)
	writes a single short to the output buffer/stream More...
OutStream &	writeShortHex (const short word)
	writes a single short to the output buffer/stream as 4 hex chars More...
OutStream &	writeUShortHex (const unsigned short word)
	writes a single unsigned short to the output buffer/stream as 4 hex chars More...
OutStream &	writeUShortCompact (const unsigned short &value)
	writes an unsigned short integer as 1 to 3 bytes, encoded as follows: xxxxxxx0 - 7 bit value, encoded in 1 byte xxxxxx01+1byte - 14 bit value, encoded in 2 bytes xxxxx011+2bytes - 16 bit value, encoded in 3 bytes More...
OutStream &	writeInt24 (const int medInt)
	writes a 3-byte integer to the output buffer/stream only works on little-endian machines! More...
OutStream &	writeInt (const int value)
	writes a 4-byte integer to the output buffer/stream More...
OutStream &	writeLongLong (const long long value)
	writes a 8-byte integer to the output buffer/stream More...
OutStream &	writeLongLongCompact (const long long &value)
	writes a signed long long integer as 1 to 9 bytes, encoded as follows: 0xxxxxxx - 7 bit value, encoded in 1 byte 10xxxxxx+1byte - 14 bit value, encoded in 2 bytes 110xxxxx+2bytes - 21 bit value, encoded in 3 bytes 1110xxxx+3bytes - 28 bit value, encoded in 4 bytes 11110xxx+4bytes - 35 bit value, encoded in 5 bytes 111110xx+5bytes - 42 bit value, encoded in 6 bytes 1111110x+6bytes - 49 bit value, encoded in 7 bytes 11111110+7bytes - 56 bit value, encoded in 8 bytes 11111111+8bytes - 64 bit value, encoded in 9 bytes More...
OutStream &	writeFloat (const float value)
	writes a 4-byte float to the output buffer/stream More...
OutStream &	writeFloat2 (const float value)
	writes a 2-byte float to the output buffer/stream More...
OutStream &	writeFloat3 (const float value)
	writes a 3-byte float to the output buffer/stream More...
OutStream &	writeDouble (const double value)
	writes a 8-byte double to the output buffer/stream More...
OutStream &	writeDouble6 (const double value)
size_t	bytesWritten ()

Protected Attributes
int	file_
Protected Attributes inherited from OutStream
size_t	lastWritten_

Private Member Functions
	DeviceIOStream (const DeviceIOStream &old)

Static Private Member Functions
static Str	GetFilename (const ConfigURI &configUri, Logger &logger)

Private Attributes
bool	useHardware_
const Str	name_

Additional Inherited Members
Protected Member Functions inherited from InStream
	InStream ()
	Protected Constructor for abstract class. More...
void	zeroBytesRead ()
void	incBytesRead ()
void	incBytesRead (size_t incRead)
void	setBytesRead (size_t lastRead)
void	zeroTotalBytesRead ()
Protected Member Functions inherited from OutStream
	OutStream ()
	Protected Constructor for abstract class. More...
Static Protected Attributes inherited from OutStream
static const unsigned char	HEX_CHARS [] = "0123456789ABCDEF"

Detailed Description

Wraps a linux device with an IOStream class.

Constructor & Destructor Documentation

DeviceIOStream::DeviceIOStream	(	const char *	filename,
		bool	useHardware
	)

Constructor 1 argument filename: device filename.

References Str::cStr(), file_, name_, and useHardware_.

DeviceIOStream::DeviceIOStream	(	const ConfigURI &	configUri,
		bool	useHardware,
		Logger &	logger
	)

Constructor 2 argument configUri: device name in vehicle.cfg file argument logger.

References Str::cStr(), Syslog::ERROR, file_, name_, Logger::syslog(), and useHardware_.

DeviceIOStream::~DeviceIOStream ( )

virtual

References file_.

DeviceIOStream::DeviceIOStream ( const DeviceIOStream &  old )

private

Member Function Documentation

virtual bool DeviceIOStream::eof ( )

inlinevirtual

Indicates that the end of file can not be reached.

Implements InStream.

References file_.

Str DeviceIOStream::GetFilename ( const ConfigURI &  configUri, Logger &  logger  )

staticprivate

References StrValue::asString(), and Slate::ReadOnce().

const char* DeviceIOStream::getName ( )

inlinevirtual

returns name of the stream

Implements InStream.

References Str::cStr(), and name_.

bool DeviceIOStream::isReadable ( )

inlinevirtual

indicates whether the stream can actually be read from.

Implements InStream.

References file_.

Referenced by CommandLine::commandIbitMcp3553(), and AnalogToDigital::readCounts().

virtual bool DeviceIOStream::isWritable ( )

inlinevirtual

indicates that the stream can actually be written to.

Implements OutStream.

References file_.

Referenced by CommandLine::commandIbitMcp3553(), and AnalogToDigital::startRead().

IOStream & DeviceIOStream::read ( char *  buffer, size_t  num  )

virtual

reads num bytes from buffer to the output buffer/stream

reads num bytes from the stream to the buffer

Implements InStream.

References InStream::bytesRead(), file_, and InStream::setBytesRead().

Referenced by CommandLine::commandIbitMcp3553(), AnalogToDigital::readCounts(), LoadControl::readFaults(), and LoadControl::requestVoltageAndCurrent().

OutStream & DeviceIOStream::write ( const char *  buffer, size_t  num  )

virtual

Writes num bytes from buffer to the output buffer/stream.

Implements OutStream.

References file_, and OutStream::lastWritten_.

Referenced by CommandLine::commandIbitMcp3553(), LoadControl::deisolateLoad(), LoadControl::discreteOff(), LoadControl::discreteOn(), LoadControl::isolateLoad(), LoadControl::powerDown(), LoadControl::powerUp(), LoadControl::requestFaults(), LoadControl::requestVoltageAndCurrent(), and AnalogToDigital::startRead().

Member Data Documentation

int DeviceIOStream::file_

protected

Referenced by DeviceIOStream(), eof(), isReadable(), isWritable(), read(), write(), and ~DeviceIOStream().

const Str DeviceIOStream::name_

private

Referenced by DeviceIOStream(), and getName().

bool DeviceIOStream::useHardware_

private

Referenced by DeviceIOStream().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/io/DeviceIOStream.h
• /Volumes/ubuntu_share/lrauv-application/Source/io/DeviceIOStream.cpp
