LRAUV: LoadControl Class Reference

LRAUV revA

This class allows one to control loads on a load controller channel. More...

#include <LoadControl.h>

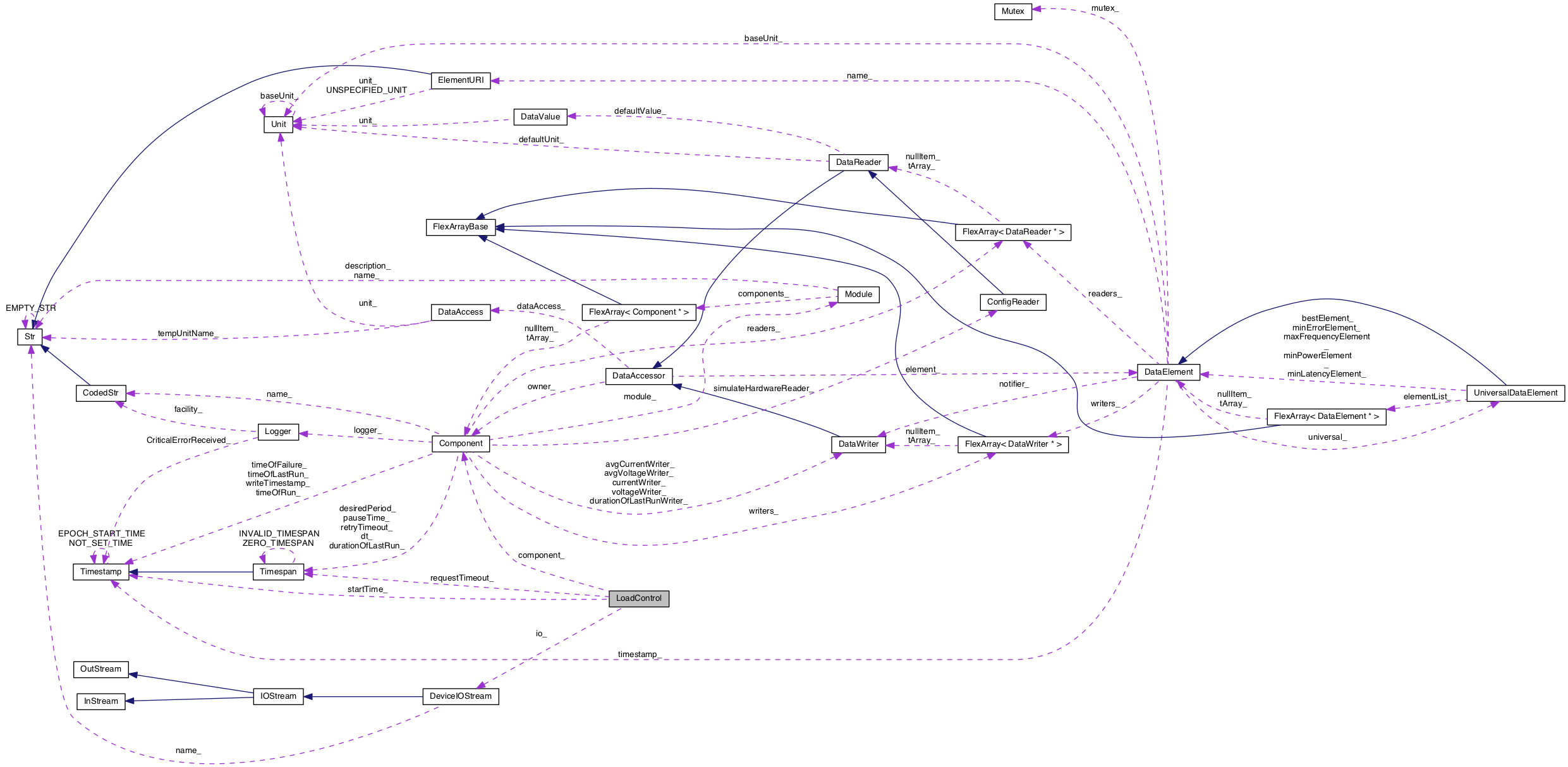

Collaboration diagram for LoadControl:

Collaboration graph

Public Types
enum	LCBError { OK = 0, WDT_RESET = 0x01, INVALID_CMD = 0x02, HW_OVERCURRENT_SHUTDOWN = 0x04, SW_OVERCURRENT_WARNING = 0x08, CL_ACTIVATED = 0x10 }
	LCB Fault Byte. More...

enum	PowerState { POWER_UNKNOWN, POWER_UP, ON, POWER_DOWN_READY, POWER_DOWN, OFF }

enum	LCBData { REQUESTVOLTAGE, PARSEVOLTAGE, REQUESTCURRENT, PARSECURRENT, DONE }

Public Member Functions
	LoadControl (const ConfigURI &loadControlCfg, bool useHardware, Logger &logger, Component *component)
	Constructor. More...

virtual	~LoadControl ()

bool	powerUp ()
	Turns on the device. More...

bool	powerDown ()
	Turns off the device. More...

bool	isolateLoad ()
	Turns off and isolates device. More...

bool	deisolateLoad ()
	Turns off and de-isolates device (i.e. closes relay) More...

bool	discreteOn ()
	Turns on discrete;. More...

bool	discreteOff ()
	Turns off discrete;. More...

void	requestVoltageAndCurrent ()
	Requests voltage information from LCB and writes it to component writers. More...

void	requestFaults ()
	Requests the fault byte. More...

void	readFaults ()
	Reads back the fault byte. To be called after requestFaults. More...

PowerState	getPowerState ()

bool	setPowerStateOn ()

bool	setPowerStateOff ()

bool	hasError ()

Str	errorString ()

Private Member Functions
	LoadControl (const LoadControl &old)

void	initialize ()
	Initializes power switching to the load control backplane. More...

unsigned short	extractCount (char *convertCount, int pos)

Private Attributes
LCBData	dataState_

DeviceIOStream	io_

PowerState	powerState_

bool	initialized_

Timespan	requestTimeout_

Timestamp	startTime_

int	errorStatus_

Component *	component_

Detailed Description

This class allows one to control loads on a load controller channel.

Constructor & Destructor Documentation

LoadControl::LoadControl	(	const ConfigURI &	loadControlCfg,
		bool	useHardware,
		Logger &	logger,
		Component *	component
	)

Constructor.

References initialize(), and initialized_.

LoadControl::~LoadControl ( )

virtual

LoadControl::LoadControl ( const LoadControl & old )

private

Member Function Documentation

bool LoadControl::deisolateLoad ( )

Turns off and de-isolates device (i.e. closes relay)

References initialized_, io_, POWER_DOWN, powerState_, and DeviceIOStream::write().

Referenced by PAR_Licor::initialize(), and Depth_Keller::initialize().

bool LoadControl::discreteOff ( )

Turns off discrete;.

References initialized_, io_, and DeviceIOStream::write().

Referenced by ISUS::stop(), and ISUS::uninitialize().

bool LoadControl::discreteOn ( )

Turns on discrete;.

References initialized_, io_, and DeviceIOStream::write().

Referenced by ISUS::start().

Str LoadControl::errorString ( )

References CL_ACTIVATED, errorStatus_, HW_OVERCURRENT_SHUTDOWN, INVALID_CMD, SW_OVERCURRENT_WARNING, and WDT_RESET.

Referenced by DVL_micro::logVoltageAndCurrent(), CANONSampler::logVoltageAndCurrent(), VemcoVR2C::logVoltageAndCurrent(), ISUS::logVoltageAndCurrent(), AcousticModem_Benthos_ATM900::logVoltageAndCurrent(), DAT::logVoltageAndCurrent(), ESPComponent::logVoltageAndCurrent(), Turbulence_NPS::receive(), SCPI::runnable(), ElevatorServo::runnable(), MassServo::runnable(), Aanderaa_O2::runnable(), BuoyancyServo::runnable(), RudderServo::runnable(), Radio_Surface::runnable(), WetLabsBB2FL::runnable(), AHRS_3DMGX3::runnable(), ThrusterServo::runnable(), PNI_TCM::runnable(), CTD_NeilBrown::runnable(), AHRS_sp3003D::runnable(), Rowe_600LCM::runnable(), Rowe_600::runnable(), NAL9602::runnable(), DVL_micro::stopping(), SCPI::stopping(), ElevatorServo::stopping(), MassServo::stopping(), BuoyancyServo::stopping(), ISUS::stopping(), RudderServo::stopping(), Turner_Cyclops_rhodamine::stopping(), Aanderaa_O2::stopping(), CANONSampler::stopping(), VemcoVR2C::stopping(), Radio_Surface::stopping(), AcousticModem_Benthos_ATM900::stopping(), WetLabsBB2FL::stopping(), Turbulence_NPS::stopping(), ESPComponent::stopping(), DAT::stopping(), AHRS_3DMGX3::stopping(), ThrusterServo::stopping(), PNI_TCM::stopping(), CTD_NeilBrown::stopping(), AHRS_sp3003D::stopping(), Rowe_600LCM::stopping(), Rowe_600::stopping(), and NAL9602::stopping().

unsigned short LoadControl::extractCount	(	char *	convertCount,
		int	pos
	)

private

Referenced by requestVoltageAndCurrent().

PowerState LoadControl::getPowerState ( )

inline

References powerState_.

Referenced by ThrusterServo::runnable(), DVL_micro::stopped(), MassServo::stopped(), ElevatorServo::stopped(), BuoyancyServo::stopped(), RudderServo::stopped(), AcousticModem_Benthos_ATM900::stopped(), WetLabsBB2FL::stopped(), Turbulence_NPS::stopped(), DAT::stopped(), AHRS_3DMGX3::stopped(), ThrusterServo::stopped(), PNI_TCM::stopped(), CTD_NeilBrown::stopped(), AHRS_sp3003D::stopped(), and NAL9602::stopped().

bool LoadControl::hasError ( )

inline

References errorStatus_.

Referenced by DVL_micro::logVoltageAndCurrent(), CANONSampler::logVoltageAndCurrent(), VemcoVR2C::logVoltageAndCurrent(), ISUS::logVoltageAndCurrent(), AcousticModem_Benthos_ATM900::logVoltageAndCurrent(), DAT::logVoltageAndCurrent(), ESPComponent::logVoltageAndCurrent(), Turbulence_NPS::receive(), SCPI::runnable(), ElevatorServo::runnable(), MassServo::runnable(), Aanderaa_O2::runnable(), BuoyancyServo::runnable(), RudderServo::runnable(), Radio_Surface::runnable(), WetLabsBB2FL::runnable(), AHRS_3DMGX3::runnable(), ThrusterServo::runnable(), PNI_TCM::runnable(), CTD_NeilBrown::runnable(), AHRS_sp3003D::runnable(), Rowe_600LCM::runnable(), Rowe_600::runnable(), NAL9602::runnable(), DVL_micro::stopping(), SCPI::stopping(), ElevatorServo::stopping(), MassServo::stopping(), BuoyancyServo::stopping(), ISUS::stopping(), RudderServo::stopping(), Turner_Cyclops_rhodamine::stopping(), Aanderaa_O2::stopping(), CANONSampler::stopping(), VemcoVR2C::stopping(), Radio_Surface::stopping(), AcousticModem_Benthos_ATM900::stopping(), WetLabsBB2FL::stopping(), Turbulence_NPS::stopping(), ESPComponent::stopping(), DAT::stopping(), AHRS_3DMGX3::stopping(), ThrusterServo::stopping(), PNI_TCM::stopping(), CTD_NeilBrown::stopping(), AHRS_sp3003D::stopping(), Rowe_600LCM::stopping(), Rowe_600::stopping(), and NAL9602::stopping().

void LoadControl::initialize ( void )

private

Initializes power switching to the load control backplane.

References dataState_, initialized_, LPC3Reg::PowerOnLoads(), and REQUESTVOLTAGE.

Referenced by LoadControl().

bool LoadControl::isolateLoad ( )

Turns off and isolates device.

Turns off and isolated the device;.

References initialized_, io_, POWER_DOWN, powerState_, and DeviceIOStream::write().

Referenced by AHRS_sp3003D::pause(), and AHRS_sp3003D::uninitialize().

bool LoadControl::powerDown ( )

Turns off the device.

Turns off the device;.

References component_, initialized_, io_, Component::logCurrent(), Component::logVoltage(), POWER_DOWN, powerState_, and DeviceIOStream::write().

Referenced by ElevatorServo::pause(), MassServo::pause(), Aanderaa_O2::pause(), BuoyancyServo::pause(), DVL_micro::pause(), RudderServo::pause(), Turbulence_NPS::pause(), AHRS_3DMGX3::pause(), ThrusterServo::pause(), PNI_TCM::pause(), CTD_NeilBrown::pause(), NAL9602::pause(), ESPComponent::powerDownESP(), SCPI::stop(), ISUS::stop(), CANONSampler::stop(), Turner_Cyclops_rhodamine::stop(), VemcoVR2C::stop(), Radio_Surface::stop(), Rowe_600::stop(), DVL_micro::uninitialize(), ElevatorServo::uninitialize(), Aanderaa_O2::uninitialize(), MassServo::uninitialize(), CANONSampler::uninitialize(), ISUS::uninitialize(), VemcoVR2C::uninitialize(), RudderServo::uninitialize(), AcousticModem_Benthos_ATM900::uninitialize(), BuoyancyServo::uninitialize(), WetLabsBB2FL::uninitialize(), DAT::uninitialize(), Turbulence_NPS::uninitialize(), ESPComponent::uninitialize(), AHRS_3DMGX3::uninitialize(), PNI_TCM::uninitialize(), ThrusterServo::uninitialize(), CTD_NeilBrown::uninitialize(), Rowe_600LCM::uninitialize(), Rowe_600::uninitialize(), and NAL9602::uninitialize().

bool LoadControl::powerUp ( )

Turns on the device.

References errorStatus_, initialized_, io_, POWER_UP, powerState_, and DeviceIOStream::write().

Referenced by ElevatorServo::paused(), MassServo::paused(), BuoyancyServo::paused(), RudderServo::paused(), NAL9602::paused(), ESPComponent::powerUpESP(), DVL_micro::resume(), BuoyancyServo::resume(), Turbulence_NPS::resume(), ThrusterServo::resume(), PNI_TCM::resume(), AHRS_3DMGX3::resume(), CTD_NeilBrown::resume(), AHRS_sp3003D::resume(), SCPI::start(), MassServo::start(), ElevatorServo::start(), BuoyancyServo::start(), RudderServo::start(), Turner_Cyclops_rhodamine::start(), Aanderaa_O2::start(), VemcoVR2C::start(), ISUS::start(), CANONSampler::start(), Radio_Surface::start(), AcousticModem_Benthos_ATM900::start(), WetLabsBB2FL::start(), Turbulence_NPS::start(), DAT::start(), AHRS_3DMGX3::start(), PNI_TCM::start(), DVL_micro::start(), ThrusterServo::start(), CTD_NeilBrown::start(), AHRS_sp3003D::start(), Rowe_600LCM::start(), Rowe_600::start(), and NAL9602::start().

void LoadControl::readFaults ( )

void LoadControl::requestFaults ( )

Requests the fault byte.

References initialized_, io_, and DeviceIOStream::write().

void LoadControl::requestVoltageAndCurrent ( )

Requests voltage information from LCB and writes it to component writers.

References InStream::bytesRead(), component_, dataState_, DONE, Timestamp::elapsed(), errorStatus_, extractCount(), initialized_, io_, Component::logCurrent(), Component::logVoltage(), Timestamp::Now(), PARSECURRENT, PARSEVOLTAGE, DeviceIOStream::read(), REQUESTCURRENT, requestTimeout_, REQUESTVOLTAGE, startTime_, and DeviceIOStream::write().

Referenced by DVL_micro::logVoltageAndCurrent(), CANONSampler::logVoltageAndCurrent(), VemcoVR2C::logVoltageAndCurrent(), ISUS::logVoltageAndCurrent(), AcousticModem_Benthos_ATM900::logVoltageAndCurrent(), DAT::logVoltageAndCurrent(), ESPComponent::logVoltageAndCurrent(), Turbulence_NPS::receive(), SCPI::runnable(), ElevatorServo::runnable(), MassServo::runnable(), Aanderaa_O2::runnable(), BuoyancyServo::runnable(), RudderServo::runnable(), Radio_Surface::runnable(), WetLabsBB2FL::runnable(), PNI_TCM::runnable(), ThrusterServo::runnable(), AHRS_3DMGX3::runnable(), CTD_NeilBrown::runnable(), AHRS_sp3003D::runnable(), Rowe_600LCM::runnable(), Rowe_600::runnable(), and NAL9602::runnable().

bool LoadControl::setPowerStateOff ( )

inline

References OFF, POWER_DOWN, and powerState_.

bool LoadControl::setPowerStateOn ( )

inline

References ON, POWER_UP, and powerState_.

Member Data Documentation

Component* LoadControl::component_

private

Referenced by powerDown(), and requestVoltageAndCurrent().

LCBData LoadControl::dataState_

private

Referenced by initialize(), and requestVoltageAndCurrent().

int LoadControl::errorStatus_

private

Referenced by errorString(), hasError(), powerUp(), readFaults(), and requestVoltageAndCurrent().

bool LoadControl::initialized_

private

Referenced by deisolateLoad(), discreteOff(), discreteOn(), initialize(), isolateLoad(), LoadControl(), powerDown(), powerUp(), readFaults(), requestFaults(), and requestVoltageAndCurrent().

DeviceIOStream LoadControl::io_

private

Referenced by deisolateLoad(), discreteOff(), discreteOn(), isolateLoad(), powerDown(), powerUp(), readFaults(), requestFaults(), and requestVoltageAndCurrent().

PowerState LoadControl::powerState_

private

Referenced by deisolateLoad(), getPowerState(), isolateLoad(), powerDown(), powerUp(), setPowerStateOff(), and setPowerStateOn().

Timespan LoadControl::requestTimeout_

private

Referenced by requestVoltageAndCurrent().

Timestamp LoadControl::startTime_

private

Referenced by requestVoltageAndCurrent().

The documentation for this class was generated from the following files:

/Volumes/ubuntu_share/lrauv-application/Source/io/LoadControl.h
/Volumes/ubuntu_share/lrauv-application/Source/io/LoadControl.cpp
