SyslogEntry Class Reference

LogEntry with information specific to "Syslog"-like text logs. More...

#include <SyslogEntry.h>

Inheritance diagram for SyslogEntry:

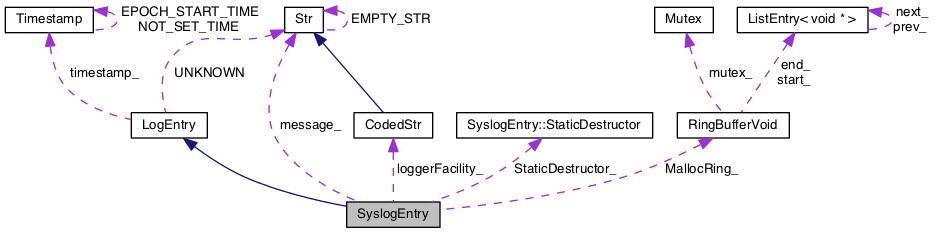

Collaboration diagram for SyslogEntry:

Classes
class	StaticDestructor
	Makes sure that mallocRing_s is deleted on shutdown. More...

Public Member Functions
	SyslogEntry (const Str &inMsg, Syslog::Severity sev, const CodedStr &loggerFacility, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Constructor, initialized from a Str. More...
	SyslogEntry (const SyslogEntry &syslogEntry)
	Copy Constructor. More...
virtual	~SyslogEntry ()
	Destructor. More...
void *	operator new (size_t size)
	Override new. More...
void	operator delete (void *p)
	Override delete. More...
virtual unsigned int	write (Timestamp &timeBase, OutStream &logStream) const
	Send payload to a stream. More...
virtual Str	toString (const Unit *unit=NULL) const
	Convert payload to Str. More...
virtual Str	toKmlString (const Unit *unit=NULL) const
	Return Str. More...
const Str &	getMessage (void) const
	Get the message. More...
Syslog::Severity	getSeverity (void) const
	Return the severity. More...
const CodedStr &	getLoggerFacility (void) const
Public Member Functions inherited from LogEntry
virtual	~LogEntry ()
	Destructor. More...
const Timestamp &	getTimestamp (void) const
	Accessors. More...
const Timestamp &	setTimestamp (const Timestamp &newTime)
const Timestamp &	setTimestamp (const double newTime)
Type	getType (void) const

Static Public Member Functions
static SyslogEntry *	Read (Timestamp &timeBase, Timespan &timeAdjust, InStream &inStream, unsigned short firstWord, Logger &logger)
	Read new SyslogEntry from a stream. More...
Static Public Member Functions inherited from LogEntry
static LogEntry *	Read (Timestamp &timeBase, Timespan &timeAdjust, InStream &inStream, Logger &logger)
	Read in a new entry from a stream. More...
static const char *	TypeToString (Type theType)
	Convert types to Strs. More...

Private Attributes
Str	message_
	The stored freetext message. More...
Syslog::Severity	severity_
const CodedStr &	loggerFacility_

Static Private Attributes
static RingBufferVoid *	MallocRing_
	Declared as a pointer to avoid including RingBuffer.h header here. More...
static SyslogEntry::StaticDestructor	StaticDestructor_
	Static instance of StaticDestructor. More...

Additional Inherited Members
Public Types inherited from LogEntry
enum	Type {   NOT_LOG_ENTRY = -1, EVENT_LOG_ENTRY = 0, DIRECTORY_LOG_ENTRY = 1, DATA_LOG_ENTRY = 2,   SYSLOG_LOG_ENTRY = 3 }
	Defines an enum for "typing" the various LogEntries. More...
Static Public Attributes inherited from LogEntry
static const int	TYPE_MASK = 0x0003
Protected Member Functions inherited from LogEntry
	LogEntry (Type myType, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Constructor. More...
unsigned int	writeTimestamp (const Timestamp &timeBase, bool changed, OutStream &logStream, Logger::TimePrecisionType timePrecision) const
Static Protected Member Functions inherited from LogEntry
static bool	ReadTimestamp (Timestamp &timestamp, bool &changed, InStream &inStream, Logger &logger, Logger::TimePrecisionType timePrecision)
Protected Attributes inherited from LogEntry
Type	type_
	Stores the type of a given LogEntry. More...
Timestamp	timestamp_
Static Protected Attributes inherited from LogEntry
static const Str	UNKNOWN

Detailed Description

LogEntry with information specific to "Syslog"-like text logs.

A Syslog::Severity value is associated with each text entry, indicating its importance. Severities include:

• Syslog::NONE - Currently is ignored
• Syslog::DEBUG - Currently is logged to syslog text file only.
• Syslog::INFO - Currently is logged and shown on screen
• Syslog::ERROR - Currently is logged and shown on screen
• Syslog::IMPORTANT - Currently is logged, shown on screen, and sent via radio to shore
• Syslog::FAULT - Currently is logged, shown on screen, and sent via radio to shore
• Syslog::CRITICAL - Currently is logged, shown on screen, and sent via radio to shore

A SyslogEntry is serialized as:

• a 16-bit header (serialized using OutStream::writeUShortCompact) including:
  • 12 high bits: Actor code (which can be used to look up what code unit is writing to the log)
  • 2 bits: Syslog::Severity code, indicating the severity of the message being logged: from debug messages to messages that must be relayed to shore via satellite.
  • 2 bits: the value 2, indicating this is a SyslogEntry
• 64-bit Timespan as integer microseconds since the previous LogEntry, serialized using OutStream::writeLongLongCompact.
• 16-bit integer length of the character sequence that follows, serialized using OutStream::writeUShortCompact
• the characters of the message, with no termination character.

Constructor & Destructor Documentation

SyslogEntry::SyslogEntry	(	const Str &	inMsg,
		Syslog::Severity	sev,
		const CodedStr &	loggerFacility,
		const Timestamp &	timestamp = Timestamp::NOT_SET_TIME
	)

Constructor, initialized from a Str.

Referenced by Read().

SyslogEntry::SyslogEntry

(

const SyslogEntry &

syslogEntry

)

Copy Constructor.

SyslogEntry::~SyslogEntry ( )

virtual

Destructor.

Member Function Documentation

const CodedStr& SyslogEntry::getLoggerFacility ( void  ) const

inline

References loggerFacility_.

Referenced by MostRecentLogWriter::write(), DirectoryManagingLogWriter::writeSyslog(), MultiLogWriter::writeSyslog(), and LinearApproximationLogWriter::writeSyslog().

const Str& SyslogEntry::getMessage ( void  ) const

inline

Get the message.

References message_.

Referenced by SyslogStartRule::check(), MostRecentLogWriter::write(), and write().

Syslog::Severity SyslogEntry::getSeverity ( void  ) const

inline

Return the severity.

References severity_.

Referenced by SyslogSeverityRule::check(), Logger::log(), and MostRecentLogWriter::write().

void SyslogEntry::operator delete

(

void *

p

)

Override delete.

void * SyslogEntry::operator new

(

size_t

size

)

Override new.

SyslogEntry * SyslogEntry::Read ( Timestamp &  timeBase, Timespan &  timeAdjust, InStream &  inStream, unsigned short  firstWord, Logger &  logger  )

static

Read new SyslogEntry from a stream.

Implements requirement: Time values must be stored to at least millisecond resolution, with the option for less resolution.

References InStream::bytesRead(), InStream::eof(), Syslog::ERROR, Slate::GetName(), Timespan::INVALID_TIMESPAN, InStream::read(), LogEntry::ReadTimestamp(), InStream::readUShortCompact(), LogEntry::setTimestamp(), Syslog::SEVERITY_MASK, Logger::syslog(), SyslogEntry(), and Logger::TIME_PRECISION_MILLIS.

Referenced by LogEntry::Read().

Str SyslogEntry::toKmlString ( const Unit *  unit = NULL ) const

virtual

Return Str.

References loggerFacility_, message_, LogEntry::timestamp_, and Timestamp::toSmallString().

Str SyslogEntry::toString ( const Unit *  unit = NULL ) const

virtual

Convert payload to Str.

Implements LogEntry.

References Timestamp::asDouble(), loggerFacility_, message_, Syslog::NONE, severity_, Syslog::SeverityToString(), LogEntry::timestamp_, and Timestamp::toString().

unsigned int SyslogEntry::write ( Timestamp &  timeBase, OutStream &  logStream  ) const

virtual

Send payload to a stream.

Implements requirement: Time values must be stored to at least millisecond resolution, with the option for less resolution.

Implements LogEntry.

References OutStream::bytesWritten(), Str::data(), CodedStr::getCode(), getMessage(), Str::length(), loggerFacility_, MIN, Syslog::NONE, severity_, LogEntry::SYSLOG_LOG_ENTRY, Logger::TIME_PRECISION_MILLIS, UINT16_MAX, OutStream::write(), LogEntry::writeTimestamp(), and OutStream::writeUShortCompact().

Member Data Documentation

const CodedStr& SyslogEntry::loggerFacility_

private

Referenced by getLoggerFacility(), toKmlString(), toString(), and write().

RingBufferVoid * SyslogEntry::MallocRing_

staticprivate

Declared as a pointer to avoid including RingBuffer.h header here.

Referenced by SyslogEntry::StaticDestructor::~StaticDestructor().

Str SyslogEntry::message_

private

The stored freetext message.

Referenced by getMessage(), toKmlString(), and toString().

Syslog::Severity SyslogEntry::severity_

private

Referenced by getSeverity(), toString(), and write().

SyslogEntry::StaticDestructor SyslogEntry::StaticDestructor_

staticprivate

Static instance of StaticDestructor.

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/logger/SyslogEntry.h
• /Volumes/ubuntu_share/lrauv-application/Source/logger/SyslogEntry.cpp
