Defines a LogWriter that can perform lossy decimation on a stream of DataEntries, by outputting values that can be reconstructed via linear interpolation. More...

#include <LinearApproximationLogWriter.h>

Inheritance diagram for LinearApproximationLogWriter:

[legend]

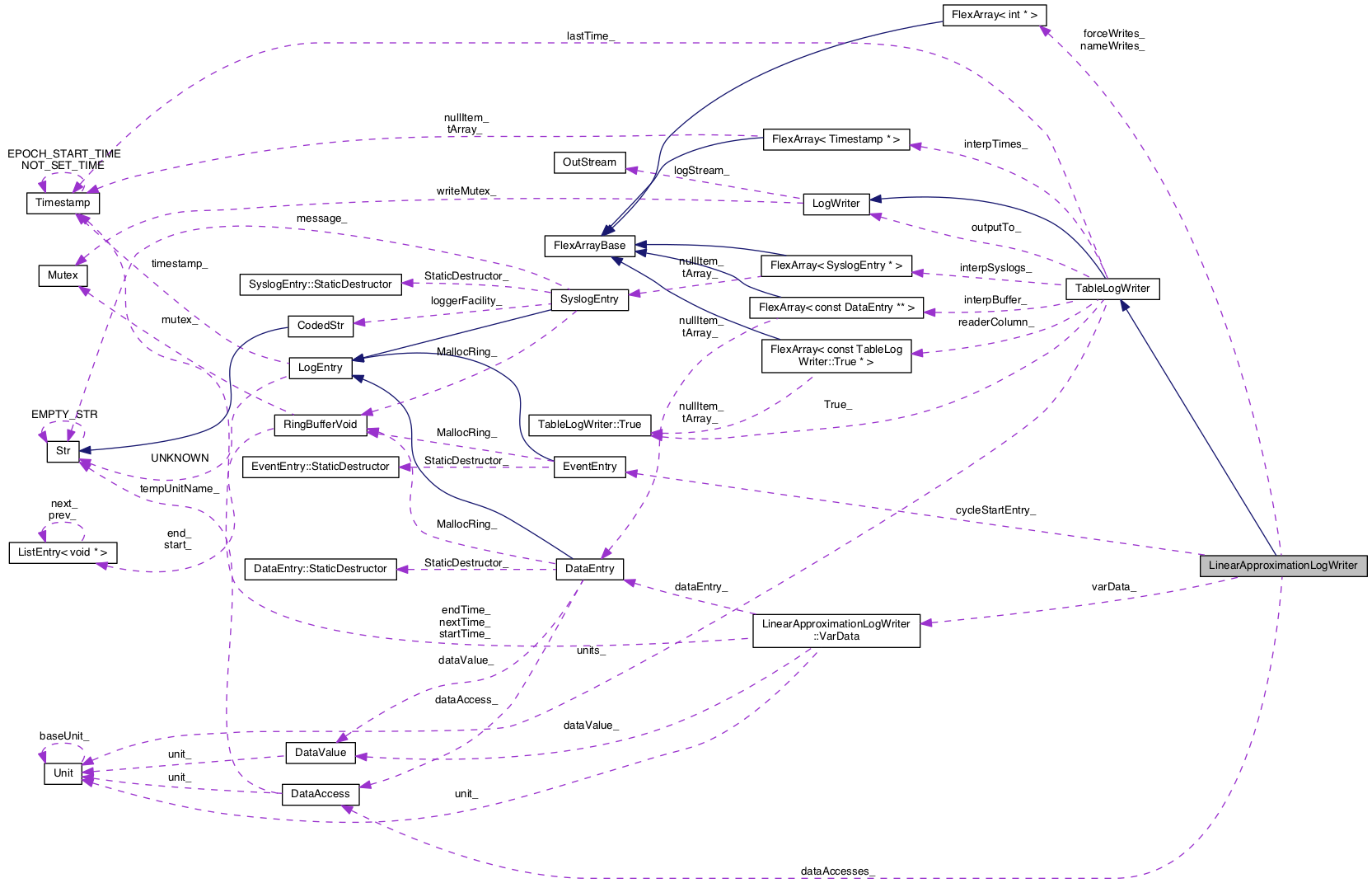

Collaboration diagram for LinearApproximationLogWriter:

[legend]

Classes
class	VarData

Public Member Functions
	LinearApproximationLogWriter (LogWriter outputTo, int varCount, char varList, char unitList, float approxErrors, bool sendAtStartCycle, bool makeDirEntries=false)

virtual	~LinearApproximationLogWriter ()

virtual unsigned int	writeHeader ()
	Write the log header, if any. More...

virtual void	endCycle ()
	Do what needs to be done at the end of the cycle. More...

virtual void	config (Logger &logger)
	Configure from a config file. More...

virtual unsigned int	writeFooter ()
	Write the log footer, if any. More...

void	resetDirectoryEntries ()

unsigned int	forceWrite (DataEntry *dataEntry)

unsigned int	forceWriteRow ()

Public Member Functions inherited from TableLogWriter
	TableLogWriter (int varCount, char varList, char unitList, bool interpolate)
	Constructor. More...

	TableLogWriter (LogWriter outputTo, int varCount, char varList, char *unitList, bool interpolate)
	Constructor. More...

virtual	~TableLogWriter ()
	Destructor. More...

virtual unsigned int	write (const LogEntry entry, const Unit unit=NULL)
	Write an entry to the text log. More...

virtual unsigned int	writeAllInterpolated ()

virtual void	resetInputs ()
	Reset cached input settings. More...

Public Member Functions inherited from LogWriter
virtual	~LogWriter ()
	Destructor. More...

virtual void	setOutStream (OutStream &outStream)
	Sets the OutStream. More...

virtual bool	isValid ()
	Return true if logStream_ is available. More...

void	addParent ()

void	removeParent ()

int	getParentCount ()

virtual void	activate ()

virtual void	deactivate ()

virtual bool	isActive ()

virtual void	lockWrites ()

virtual void	unlockWrites ()

Private Member Functions
	LinearApproximationLogWriter (const LinearApproximationLogWriter &old)

void	preInitialize ()

virtual unsigned int	writeToColumn (const DataEntry *dataEntry, const int column)

virtual unsigned int	writeRow ()

virtual unsigned int	writeSyslog (const SyslogEntry *syslogEntry)

unsigned int	sendOutput (DataEntry *dataEntry, int varIndex)

Private Attributes
float *	approxErrors_

bool	sendAtStartCycle_

bool	makeDirEntries_

LinearApproximationLogWriter::VarData **	varData_

FlexArray< int * >	nameWrites_

FlexArray< int * >	forceWrites_

DataAccess **	dataAccesses_

bool *	dataAccessHidden_

bool	recentOutput_

EventEntry	cycleStartEntry_

Friends
class	Supervisor

Additional Inherited Members
Public Types inherited from LogWriter
enum	ServiceType { NO_SERVICE = -1, SERVICE_COURIER, SERVICE_EXPRESS, SERVICE_PRIORITY, SERVICE_NORMAL, SERVICE_BULK, SERVICE_COUNT, SERVICE_MULTI }

Static Public Member Functions inherited from LogWriter
static ServiceType	Str2ServiceType (const char *const serviceTypeStr, int len=-1)

static const char *	ServiceType2Str (LogWriter::ServiceType serviceType)

static size_t	ServiceType2Strlen (LogWriter::ServiceType serviceType)

Static Public Attributes inherited from LogWriter
static const char *const	SERVICE_TYPE_STRS [SERVICE_COUNT]

static size_t const	SERVICE_TYPE_STRLEN [SERVICE_COUNT]

Protected Member Functions inherited from TableLogWriter
	TableLogWriter (const TableLogWriter &old)

void	initializeTableLogWriter ()

virtual void	clearRow ()

const DataEntry **	newDataEntryRow ()

void	deleteDataEntryRow (const DataEntry **dataEntryRow)

unsigned int	writeInterpolated (const LogEntry *logEntry, const int column)

unsigned int	writeDataEntryRow (unsigned int row)

DataEntry *	interpolateDataEntry (const Timestamp &timestamp, const DataEntry startEntry, const DataEntry endEntry)

DataEntry *	nanDataEntry (const Timestamp &timestamp, const DataEntry *origEntry)

Protected Member Functions inherited from LogWriter
	LogWriter ()
	Protected constructor for pure virtual class. More...

	LogWriter (OutStream &outStream)
	Protected constructor for pure virtual class. More...

Protected Attributes inherited from TableLogWriter
LogWriter *	outputTo_

int	varCount_

char **	varList_

char **	unitList_

const Unit **	units_

unsigned short *	uriCodes_

bool *	isUniversal_

int *	codeLookup_

bool	interpolate_

FlexArray< const DataEntry ** >	interpBuffer_

FlexArray< SyslogEntry * >	interpSyslogs_

FlexArray< Timestamp * >	interpTimes_

FlexArray< const True * >	readerColumn_

Timestamp	lastTime_

bool	initializedTableLogWriter_

unsigned int	slateElementURICount_

bool	deleteLists_

Protected Attributes inherited from LogWriter
OutStream *	logStream_
	Stores an OutStream. More...

bool	wroteHeader_

bool	wroteFooter_

Mutex	writeMutex_

int	parentCount_

bool	active_

Static Protected Attributes inherited from TableLogWriter
static True	True_

Detailed Description

Defines a LogWriter that can perform lossy decimation on a stream of DataEntries, by outputting values that can be reconstructed via linear interpolation.

The resulting output will have no more error than the specified error limits (using the DataValue's absDiff() function to calculate differences – important in the case of Location values). See:
K. Konstantinides and B. K. Natarajan, “An architecture for lossy compression of waveforms using piecewise linear approximation,” IEEE Trans. Signal Processing, vol. 42, no. 9, pp. 2449-2454, Sept. 1994. (http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=317866)

See TextLogWriter for conversion to text See FileLogWriter for output to the filesystem.

Constructor & Destructor Documentation

LinearApproximationLogWriter::LinearApproximationLogWriter	(	LogWriter *	outputTo,
		int	varCount,
		char **	varList,
		char **	unitList,
		float *	approxErrors,
		bool	sendAtStartCycle,
		bool	makeDirEntries = `false`
	)

References preInitialize().

LinearApproximationLogWriter::~LinearApproximationLogWriter ( )

virtual

References approxErrors_, dataAccesses_, dataAccessHidden_, TableLogWriter::deleteLists_, TableLogWriter::varCount_, varData_, writeFooter(), and LogWriter::wroteFooter_.

LinearApproximationLogWriter::LinearApproximationLogWriter ( const LinearApproximationLogWriter & old )

private

Member Function Documentation

virtual void LinearApproximationLogWriter::config ( Logger & logger )

inlinevirtual

Configure from a config file.

Reimplemented from LogWriter.

References LogWriter::config(), and TableLogWriter::outputTo_.

virtual void LinearApproximationLogWriter::endCycle ( )

inlinevirtual

Do what needs to be done at the end of the cycle.

Reimplemented from LogWriter.

References LogWriter::endCycle(), and TableLogWriter::outputTo_.

unsigned int LinearApproximationLogWriter::forceWrite ( DataEntry * dataEntry )

References forceWrites_, DataEntry::getDataAccess(), DataAccess::getElementCode(), Slate::GetElementURI(), Slate::GetName(), DataAccess::getOwnerCode(), makeDirEntries_, nameWrites_, TableLogWriter::outputTo_, and LogWriter::write().

unsigned int LinearApproximationLogWriter::forceWriteRow ( )

References LinearApproximationLogWriter::VarData::advance(), recentOutput_, sendOutput(), TableLogWriter::varCount_, varData_, and writeRow().

Referenced by Supervisor::RestartLogs(), and writeFooter().

void LinearApproximationLogWriter::preInitialize ( )

private

References dataAccesses_, dataAccessHidden_, TableLogWriter::varCount_, and varData_.

Referenced by LinearApproximationLogWriter().

void LinearApproximationLogWriter::resetDirectoryEntries ( )

References dataAccesses_, dataAccessHidden_, forceWrites_, FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), nameWrites_, and TableLogWriter::varCount_.

unsigned int LinearApproximationLogWriter::sendOutput	(	DataEntry *	dataEntry,
		int	varIndex
	)

private

unsigned int LinearApproximationLogWriter::writeFooter ( )

virtual

Write the log footer, if any.

Reimplemented from TableLogWriter.

References forceWriteRow().

Referenced by Supervisor::RestartLogs(), and ~LinearApproximationLogWriter().

unsigned int LinearApproximationLogWriter::writeHeader ( )

virtual

Write the log header, if any.

Reimplemented from TableLogWriter.

References TableLogWriter::outputTo_, and LogWriter::writeHeader().

Referenced by Supervisor::RestartLogs().

unsigned int LinearApproximationLogWriter::writeRow ( )

privatevirtual

Reimplemented from TableLogWriter.

References cycleStartEntry_, TableLogWriter::lastTime_, TableLogWriter::outputTo_, recentOutput_, sendAtStartCycle_, LogEntry::setTimestamp(), TableLogWriter::varCount_, LogWriter::write(), and writeToColumn().

Referenced by forceWriteRow().

unsigned int LinearApproximationLogWriter::writeSyslog ( const SyslogEntry * syslogEntry )

privatevirtual

Reimplemented from TableLogWriter.

References CodedStr::getCode(), SyslogEntry::getLoggerFacility(), makeDirEntries_, nameWrites_, TableLogWriter::outputTo_, and LogWriter::write().

unsigned int LinearApproximationLogWriter::writeToColumn	(	const DataEntry *	dataEntry,
		const int	column
	)

privatevirtual

Reimplemented from TableLogWriter.

References LinearApproximationLogWriter::VarData::advance(), approxErrors_, LinearApproximationLogWriter::VarData::checkNextEntry(), LinearApproximationLogWriter::VarData::getDataEntry(), recentOutput_, sendOutput(), varData_, and LinearApproximationLogWriter::VarData::wasNaN().

Referenced by writeRow().

Friends And Related Function Documentation

friend class Supervisor

friend

Member Data Documentation

float* LinearApproximationLogWriter::approxErrors_

private

Referenced by sendOutput(), writeToColumn(), and ~LinearApproximationLogWriter().

EventEntry LinearApproximationLogWriter::cycleStartEntry_

private

Referenced by writeRow().

DataAccess** LinearApproximationLogWriter::dataAccesses_

private

Referenced by preInitialize(), resetDirectoryEntries(), sendOutput(), and ~LinearApproximationLogWriter().

bool* LinearApproximationLogWriter::dataAccessHidden_

private

Referenced by preInitialize(), resetDirectoryEntries(), sendOutput(), and ~LinearApproximationLogWriter().

FlexArray< int* > LinearApproximationLogWriter::forceWrites_

private

Referenced by forceWrite(), and resetDirectoryEntries().

bool LinearApproximationLogWriter::makeDirEntries_

private

Referenced by forceWrite(), sendOutput(), and writeSyslog().

FlexArray< int* > LinearApproximationLogWriter::nameWrites_

private

Referenced by forceWrite(), resetDirectoryEntries(), sendOutput(), and writeSyslog().

bool LinearApproximationLogWriter::recentOutput_

private

Referenced by forceWriteRow(), writeRow(), and writeToColumn().

bool LinearApproximationLogWriter::sendAtStartCycle_

private

Referenced by writeRow().

LinearApproximationLogWriter::VarData** LinearApproximationLogWriter::varData_

private

Referenced by forceWriteRow(), preInitialize(), writeToColumn(), and ~LinearApproximationLogWriter().

The documentation for this class was generated from the following files:

/Volumes/ubuntu_share/lrauv-application/Source/logger/LinearApproximationLogWriter.h
/Volumes/ubuntu_share/lrauv-application/Source/logger/LinearApproximationLogWriter.cpp
