Code unit that represents an event to be stored in the log file. More...

#include <EventEntry.h>

Inheritance diagram for EventEntry:

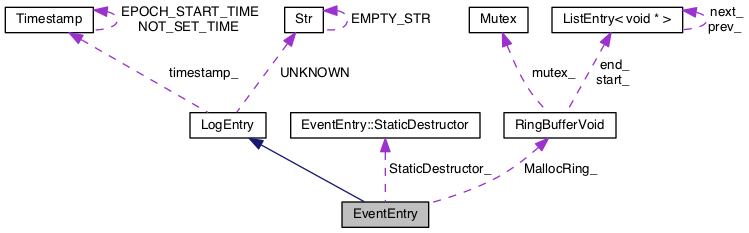

Collaboration diagram for EventEntry:

Classes
class	StaticDestructor
	Makes sure that mallocRing_s is deleted on shutdown. More...

Public Types
enum	EventType { START_CYCLE = 0, SET_DATA_ACCURACY = 1 << 2, SET_DATA_STATE = 2 << 2, COMPONENT_ACTION = 3 << 2 }
	Type of data event. More...

enum	DataStateChange { NO_DATA_STATE_CHANGE = 0, DATA_STATE_CHANGE_UNAVAILABLE = 2, DATA_STATE_CHANGE_AVAILABLE = 4, DATA_STATE_CHANGE_ORPHANED = 8, DATA_STATE_CHANGE_UNORPHANED = 16, DATA_STATE_CHANGE_SET_BEST = 32, DATA_STATE_CHANGE_INVALID = 64, DATA_STATE_CHANGE_VALID = 128 }

enum	ComponentAction { COMPONENT_LOAD = 0, COMPONENT_MISSION_RUN = 1 << 2, COMPONENT_FAIL = 2 << 2 }
	Type of component event. More...

Public Types inherited from LogEntry
enum	Type { NOT_LOG_ENTRY = -1, EVENT_LOG_ENTRY = 0, DIRECTORY_LOG_ENTRY = 1, DATA_LOG_ENTRY = 2, SYSLOG_LOG_ENTRY = 3 }
	Defines an enum for "typing" the various LogEntries. More...

Public Member Functions
	EventEntry (Component actor, DataElement dataElement, const EventType eventType)
	EventType Constructor. More...

	EventEntry (Component actor, DataElement dataElement, const DataStateChange dataStateChange)
	DataStateChange Constructor. More...

	EventEntry (Component *actor, const bool loaded)
	ComponentAction = COMPONENT_LOAD Constructor. More...

	EventEntry (Component *actor, const int loop)
	ComponentAction = COMPONENT_RUN Constructor. More...

	EventEntry (Component *actor, const FailureMode::FailType failure, const int failCount)
	ComponentAction = COMPONENT_FAIL Constructor. More...

virtual	~EventEntry ()
	Destructor. More...

void *	operator new (size_t size)
	Override new. More...

void	operator delete (void *p)
	Override delete. More...

const void	setAccuracy (const double &accuracy)

const double &	getAccuracy (void) const

virtual unsigned int	write (Timestamp &timeBase, OutStream &logStream) const
	Send payload to a stream. More...

virtual Str	toString (const Unit *unit=NULL) const
	Convert payload to Str. More...

unsigned short	getActorCode () const

ComponentAction	getComponentAction (void) const

unsigned short	getDataElementCode (void) const

EventType	getEventType (void) const

DataStateChange	getDataStateChange (void) const

void	setDataStateChange (const DataStateChange dataStateChange)

int	getRunLoop () const

bool	getLoaded () const

FailureMode::FailType	getFailureMode () const

int	getFailCount () const

Public Member Functions inherited from LogEntry
virtual	~LogEntry ()
	Destructor. More...

const Timestamp &	getTimestamp (void) const
	Accessors. More...

const Timestamp &	setTimestamp (const Timestamp &newTime)

const Timestamp &	setTimestamp (const double newTime)

Type	getType (void) const

Static Public Member Functions
static EventEntry *	Read (Timestamp &timeBase, Timespan &timeAdjust, InStream &inStream, unsigned short firstWord, Logger &logger)
	Read new EventEntry from a stream. More...

static const char *	EventTypeToString (EventType theAction)
	Convert actions to Strs. More...

static const char *	StateChangeToString (DataStateChange dataStateChange)
	Convert actions to Strs. More...

Static Public Member Functions inherited from LogEntry
static LogEntry *	Read (Timestamp &timeBase, Timespan &timeAdjust, InStream &inStream, Logger &logger)
	Read in a new entry from a stream. More...

static const char *	TypeToString (Type theType)
	Convert types to Strs. More...

Static Public Attributes
static const int	EVENT_TYPE_MASK = 3 << 2

static const int	COMPONENT_ACTION_MASK = 3 << 2

Static Public Attributes inherited from LogEntry
static const int	TYPE_MASK = 0x0003

Protected Member Functions
	EventEntry (const Timestamp &timestamp, const unsigned short actorCode, const unsigned short dataElementCode, const EventType action, const double &accuracy=0.0)
	Protected EventType Constructor. More...

	EventEntry (const Timestamp &timestamp, const unsigned short actorCode, const unsigned short dataElementCode, const DataStateChange dataStateChange, const double &accuracy=0.0)
	Protected DataStateChange Constructor. More...

	EventEntry (const Timestamp &timestamp, const unsigned short actorCode, const bool loaded)
	Protected ComponentAction = COMPONENT_LOAD Constructor. More...

	EventEntry (const Timestamp &timestamp, const unsigned short actorCode, const int loop)
	Protected ComponentAction = COMPONENT_RUN Constructor. More...

	EventEntry (const Timestamp &timestamp, const unsigned short actorCode, const FailureMode::FailType failure, const int failCount)
	Protected ComponentAction = COMPONENT_FAIL Constructor. More...

virtual const Str	makeComponentActionString () const

virtual const Str	makeDataValueString () const

Protected Member Functions inherited from LogEntry
	LogEntry (Type myType, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Constructor. More...

unsigned int	writeTimestamp (const Timestamp &timeBase, bool changed, OutStream &logStream, Logger::TimePrecisionType timePrecision) const

Protected Attributes
unsigned short	actorCode_
	Arg1. More...

union {
unsigned short dataElementCode_

bool loaded_

int runLoop_

FailureMode::FailType failureMode_

};
	Arg2. More...

EventType	eventType_
	Arg3. More...

union {
DataStateChange dataStateChange_

ComponentAction componentAction_

};
	Arg4. More...

union {
double accuracy_

int failCount_

};
	Arg5. More...

Protected Attributes inherited from LogEntry
Type	type_
	Stores the type of a given LogEntry. More...

Timestamp	timestamp_

Static Protected Attributes
static RingBufferVoid *	MallocRing_
	Declared as a pointer to avoid including RingBuffer.h header here. More...

static EventEntry::StaticDestructor	StaticDestructor_
	Static instance of StaticDestructor. More...

Static Protected Attributes inherited from LogEntry
static const Str	UNKNOWN

Additional Inherited Members
Static Protected Member Functions inherited from LogEntry
static bool	ReadTimestamp (Timestamp &timestamp, bool &changed, InStream &inStream, Logger &logger, Logger::TimePrecisionType timePrecision)

Detailed Description

Code unit that represents an event to be stored in the log file.

The kinds of events include:

Starting a computation cycle
Setting the accuracy of a variable
Setting the state of a variable
Setting the "Best" value of a UniversalDataElement

An EventEntry is serialized as:

a 16-bit header (serialized using OutStream::writeUShortCompact) including:
- 12 high bits: Actor code (which can be used to look up what code unit is causing the event), or zero if this is the start of a cycle
- 2 bits: EventEntry::Action code, indicating the type of action being logged; e.g., the start of a cycle, the setting of accuracy, the setting of the state of a variable, or the setting of a variable to the "best" for its associated Universal variable
- 2 bits: the code 00, indicating this is a EventEntry
Unless the action is EventEntry::START_CYCLE, 16 bits (serialized using OutStream::writeUShortCompact) indicating the DataAccessor code of the DataElement undergoing the event.
If the action is EventEntry::START_CYCLE, a 64-bit Timestamp as integer microseconds since the start of the epoch. Otherwise, a 64-bit Timespan as integer microseconds since the previous LogEntry. (In both cases, serialized using OutStream::writeLongLongCompact).
If the action is EventEntry::SET_DATA_ACCURACY, a 16-bit floating point number (serialized using OutStream::writeFloat2) indicating the new accuracy of the DataElement. Or if the action is EventEntry::SET_DATA_STATE, a 8-bit ORed result of the EventEntry::StateChange flags for the DataElement.

Constructor & Destructor Documentation

EventEntry::EventEntry	(	Component *	actor,
		DataElement *	dataElement,
		const EventType	eventType
	)

EventType Constructor.

Referenced by Read().

EventEntry::EventEntry	(	Component *	actor,
		DataElement *	dataElement,
		const DataStateChange	dataStateChange
	)

DataStateChange Constructor.

EventEntry::EventEntry	(	Component *	actor,
		const bool	loaded
	)

ComponentAction = COMPONENT_LOAD Constructor.

EventEntry::EventEntry	(	Component *	actor,
		const int	loop
	)

ComponentAction = COMPONENT_RUN Constructor.

EventEntry::EventEntry	(	Component *	actor,
		const FailureMode::FailType	failure,
		const int	failCount
	)

ComponentAction = COMPONENT_FAIL Constructor.

EventEntry::~EventEntry ( )

virtual

Destructor.

EventEntry::EventEntry	(	const Timestamp &	timestamp,
		const unsigned short	actorCode,
		const unsigned short	dataElementCode,
		const EventType	action,
		const double &	accuracy = `0.0`
	)

protected

Protected EventType Constructor.

EventEntry::EventEntry	(	const Timestamp &	timestamp,
		const unsigned short	actorCode,
		const unsigned short	dataElementCode,
		const DataStateChange	dataStateChange,
		const double &	accuracy = `0.0`
	)

protected

Protected DataStateChange Constructor.

EventEntry::EventEntry	(	const Timestamp &	timestamp,
		const unsigned short	actorCode,
		const bool	loaded
	)

protected

Protected ComponentAction = COMPONENT_LOAD Constructor.

EventEntry::EventEntry	(	const Timestamp &	timestamp,
		const unsigned short	actorCode,
		const int	loop
	)

protected

Protected ComponentAction = COMPONENT_RUN Constructor.

EventEntry::EventEntry	(	const Timestamp &	timestamp,
		const unsigned short	actorCode,
		const FailureMode::FailType	failure,
		const int	failCount
	)

protected

Protected ComponentAction = COMPONENT_FAIL Constructor.

Member Function Documentation

const char * EventEntry::EventTypeToString ( EventType theAction )

static

Convert actions to Strs.

Convert an Action to a char*.

References COMPONENT_ACTION, SET_DATA_ACCURACY, SET_DATA_STATE, and START_CYCLE.

Referenced by toString(), and EventTypeRule::toString().

const double& EventEntry::getAccuracy ( void ) const

inline

References accuracy_.

Referenced by write().

unsigned short EventEntry::getActorCode ( ) const

inline

References actorCode_.

Referenced by BinaryLogReader::read().

ComponentAction EventEntry::getComponentAction ( void ) const

inline

References componentAction_.

Referenced by BinaryLogReader::read(), and write().

unsigned short EventEntry::getDataElementCode ( void ) const

inline

References dataElementCode_.

Referenced by write().

DataStateChange EventEntry::getDataStateChange ( void ) const

inline

References dataStateChange_.

Referenced by write().

EventType EventEntry::getEventType ( void ) const

inline

References eventType_.

Referenced by EventTypeRule::check(), BinaryLogReader::read(), KmlLogWriter::write(), TableLogWriter::write(), and FilterLogWriter::write().

int EventEntry::getFailCount ( void ) const

inline

References failCount_.

Referenced by write().

FailureMode::FailType EventEntry::getFailureMode ( ) const

inline

References failureMode_.

Referenced by write().

bool EventEntry::getLoaded ( ) const

inline

References loaded_.

Referenced by write().

int EventEntry::getRunLoop ( ) const

inline

References runLoop_.

Referenced by BinaryLogReader::read(), and write().

const Str EventEntry::makeComponentActionString ( ) const

protectedvirtual

References COMPONENT_FAIL, COMPONENT_LOAD, COMPONENT_MISSION_RUN, componentAction_, failCount_, failureMode_, loaded_, runLoop_, and FailureMode::ToString().

Referenced by toString().

const Str EventEntry::makeDataValueString ( ) const

protectedvirtual

References accuracy_, dataStateChange_, eventType_, SET_DATA_ACCURACY, SET_DATA_STATE, and StateChangeToString().

Referenced by toString().

void EventEntry::operator delete ( void * p )

Override delete.

void * EventEntry::operator new ( size_t size )

Override new.

EventEntry * EventEntry::Read	(	Timestamp &	timeBase,
		Timespan &	timeAdjust,
		InStream &	inStream,
		unsigned short	firstWord,
		Logger &	logger
	)

static

const void EventEntry::setAccuracy ( const double & accuracy )

inline

References accuracy_.

void EventEntry::setDataStateChange ( const DataStateChange dataStateChange )

inline

References dataStateChange_.

const char * EventEntry::StateChangeToString ( DataStateChange dataStateChange )

static

Convert actions to Strs.

Convert an Action to a char*.

References DATA_STATE_CHANGE_AVAILABLE, DATA_STATE_CHANGE_INVALID, DATA_STATE_CHANGE_ORPHANED, DATA_STATE_CHANGE_SET_BEST, DATA_STATE_CHANGE_UNAVAILABLE, DATA_STATE_CHANGE_UNORPHANED, DATA_STATE_CHANGE_VALID, and NO_DATA_STATE_CHANGE.

Referenced by makeDataValueString().

Str EventEntry::toString ( const Unit * unit = NULL ) const

virtual

Convert payload to Str.

Implements LogEntry.

References actorCode_, Timestamp::asDouble(), COMPONENT_ACTION, dataElementCode_, eventType_, EventTypeToString(), Slate::GetElementURI(), Slate::GetName(), makeComponentActionString(), makeDataValueString(), CodedStr::NO_CODE, START_CYCLE, LogEntry::timestamp_, Timestamp::toString(), and LogEntry::UNKNOWN.

unsigned int EventEntry::write	(	Timestamp &	timeBase,
		OutStream &	logStream
	)		const

virtual

Member Data Documentation

union { ... }

Arg2.

union { ... }

Arg4.

union { ... }

Arg5.

double EventEntry::accuracy_

Referenced by getAccuracy(), makeDataValueString(), and setAccuracy().

unsigned short EventEntry::actorCode_

protected

Arg1.

Referenced by getActorCode(), toString(), and write().

const int EventEntry::COMPONENT_ACTION_MASK = 3 << 2

static

ComponentAction EventEntry::componentAction_

Referenced by getComponentAction(), and makeComponentActionString().

unsigned short EventEntry::dataElementCode_

Referenced by getDataElementCode(), and toString().

DataStateChange EventEntry::dataStateChange_

Referenced by getDataStateChange(), makeDataValueString(), and setDataStateChange().

const int EventEntry::EVENT_TYPE_MASK = 3 << 2

static

Referenced by Read().

EventType EventEntry::eventType_

protected

Arg3.

Referenced by getEventType(), makeDataValueString(), toString(), and write().

int EventEntry::failCount_

Referenced by getFailCount(), and makeComponentActionString().

FailureMode::FailType EventEntry::failureMode_

Referenced by getFailureMode(), and makeComponentActionString().

bool EventEntry::loaded_

Referenced by getLoaded(), and makeComponentActionString().

RingBufferVoid * EventEntry::MallocRing_

staticprotected

Declared as a pointer to avoid including RingBuffer.h header here.

Referenced by EventEntry::StaticDestructor::~StaticDestructor().

int EventEntry::runLoop_

Referenced by getRunLoop(), and makeComponentActionString().

EventEntry::StaticDestructor EventEntry::StaticDestructor_

staticprotected

Static instance of StaticDestructor.

The documentation for this class was generated from the following files:

/Volumes/ubuntu_share/lrauv-application/Source/logger/EventEntry.h
/Volumes/ubuntu_share/lrauv-application/Source/logger/EventEntry.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
