KmlLogWriter Class Reference

Defines a LogWriter that can convert Location and depth triples into write kml format text (see http://en.wikipedia.org/wiki/Kml ) More...

#include <KmlLogWriter.h>

Inheritance diagram for KmlLogWriter:

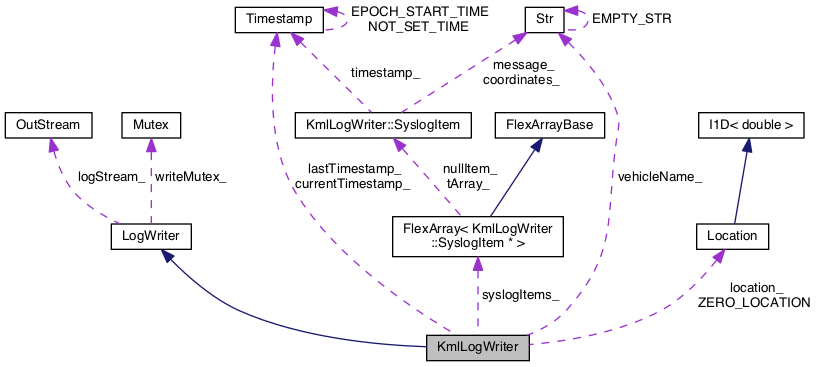

Collaboration diagram for KmlLogWriter:

Classes
class	SyslogItem

Public Member Functions
	KmlLogWriter (Str vehicleName, bool emitTimestamps=true, bool doDepth=true)
	Constructor. More...
virtual	~KmlLogWriter ()
	Destructor. More...
virtual unsigned int	write (const LogEntry *entry, const Unit *unit=NULL)
	Write an entry to the text log. More...
virtual unsigned int	writeHeader ()
	Write the log header, if any. More...
virtual unsigned int	writeFooter ()
	Write the log footer, if any. More...
void	setColor (const char *color)
Public Member Functions inherited from LogWriter
virtual	~LogWriter ()
	Destructor. More...
virtual void	setOutStream (OutStream &outStream)
	Sets the OutStream. More...
virtual bool	isValid ()
	Return true if logStream_ is available. More...
virtual void	endCycle ()
	Do what needs to be done at the end of the cycle. More...
virtual void	config (Logger &logger)
	Configure from a config file. More...
virtual void	resetInputs ()
	Reset cached input settings. More...
void	addParent ()
void	removeParent ()
int	getParentCount ()
virtual void	activate ()
virtual void	deactivate ()
virtual bool	isActive ()
virtual void	lockWrites ()
virtual void	unlockWrites ()

Static Public Member Functions
static char **	GetKmlArgs (bool doKmlSimple=false)
static char **	GetKmlUnits (bool doKmlSimple=false)
static float *	GetKmlErrors (bool doKmlSimple=false)
Static Public Member Functions inherited from LogWriter
static ServiceType	Str2ServiceType (const char *const serviceTypeStr, int len=-1)
static const char *	ServiceType2Str (LogWriter::ServiceType serviceType)
static size_t	ServiceType2Strlen (LogWriter::ServiceType serviceType)

Protected Member Functions
unsigned int	writeSyslogItems (const char *latestCoordinates)
Protected Member Functions inherited from LogWriter
	LogWriter ()
	Protected constructor for pure virtual class. More...
	LogWriter (OutStream &outStream)
	Protected constructor for pure virtual class. More...

Protected Attributes
Str	vehicleName_
FlexArray< SyslogItem * >	syslogItems_
Protected Attributes inherited from LogWriter
OutStream *	logStream_
	Stores an OutStream. More...
bool	wroteHeader_
bool	wroteFooter_
Mutex	writeMutex_
int	parentCount_
bool	active_

Private Attributes
bool	emitTimestamps_
bool	doDepth_
bool	haveFirstLocation_
bool	haveFirstDepth_
bool	haveNewLatitude_
bool	haveNewLongitude_
bool	haveNewDepth_
bool	started_
Timestamp	lastTimestamp_
Timestamp	currentTimestamp_
unsigned int	lineCount_
Location	location_
double	lastLatitude_
double	lastLongitude_
double	depth_
const char *	color_

Static Private Attributes
static const char *	KmlArgs_ [3] = {"depth", "latitude", "longitude"}
static const char *	KmlUnits_ [3] = {Units::METER.getName(), Units::DEGREE.getName(), Units::DEGREE.getName()}
static float	KmlErrors_ [3] = { 0.5, D2R( 0.000005 ), D2R( 0.000005 ) }
static const Location	ZERO_LOCATION

Additional Inherited Members
Public Types inherited from LogWriter
enum	ServiceType {   NO_SERVICE = -1, SERVICE_COURIER, SERVICE_EXPRESS, SERVICE_PRIORITY,   SERVICE_NORMAL, SERVICE_BULK, SERVICE_COUNT, SERVICE_MULTI }
Static Public Attributes inherited from LogWriter
static const char *const	SERVICE_TYPE_STRS [SERVICE_COUNT]
static size_t const	SERVICE_TYPE_STRLEN [SERVICE_COUNT]

Detailed Description

Defines a LogWriter that can convert Location and depth triples into write kml format text (see http://en.wikipedia.org/wiki/Kml )

See FileLogWriter for output to the filesystem.

Constructor & Destructor Documentation

KmlLogWriter::KmlLogWriter	(	Str	vehicleName,
		bool	emitTimestamps = true,
		bool	doDepth = true
	)

Constructor.

KmlLogWriter::~KmlLogWriter ( )

virtual

Destructor.

Member Function Documentation

static char** KmlLogWriter::GetKmlArgs ( bool  doKmlSimple = false )

inlinestatic

References KmlArgs_.

Referenced by Supervisor::initialize(), and Unserialize::Run().

static float* KmlLogWriter::GetKmlErrors ( bool  doKmlSimple = false )

inlinestatic

References KmlErrors_.

Referenced by Supervisor::initialize(), and Unserialize::Run().

static char** KmlLogWriter::GetKmlUnits ( bool  doKmlSimple = false )

inlinestatic

References KmlUnits_.

Referenced by Supervisor::initialize(), and Unserialize::Run().

void KmlLogWriter::setColor ( const char *  color )

inline

References color_.

Referenced by Unserialize::Run().

unsigned int KmlLogWriter::write ( const LogEntry *  entry, const Unit *  unit = NULL  )

virtual

Write an entry to the text log.

Write the given Entry to the OutStream.

Pipes the toString() method of the entry to the OutStream with some formatting.

Implements LogWriter.

References OutStream::bytesWritten(), DataValue::copyTo(), currentTimestamp_, LogEntry::DATA_LOG_ENTRY, Units::DEGREE, UniversalURI::DEPTH, depth_, doDepth_, emitTimestamps_, LogEntry::EVENT_LOG_ENTRY, DataEntry::getDataAccess(), DataEntry::getDataValue(), Location::getDistance(), EventEntry::getEventType(), Location::getLat(), Location::getLon(), LogEntry::getTimestamp(), LogEntry::getType(), DataAccess::getUniversalCode(), haveFirstDepth_, haveFirstLocation_, haveNewDepth_, haveNewLatitude_, haveNewLongitude_, DataEntry::isBest(), LogWriter::isValid(), lastLatitude_, lastLongitude_, lastTimestamp_, UniversalURI::LATITUDE, lineCount_, location_, LogWriter::logStream_, UniversalURI::LONGITUDE, Units::METER, Units::RADIAN, Location::setLat(), Location::setLon(), EventEntry::START_CYCLE, started_, LogEntry::SYSLOG_LOG_ENTRY, syslogItems_, Timestamp::toString(), OutStream::write(), LogWriter::writeMutex_, writeSyslogItems(), and ZERO_LOCATION.

unsigned int KmlLogWriter::writeFooter ( )

virtual

Write the log footer, if any.

Reimplemented from LogWriter.

References OutStream::bytesWritten(), currentTimestamp_, Units::DEGREE, depth_, doDepth_, emitTimestamps_, Location::getLat(), Location::getLon(), LogWriter::isValid(), lastLatitude_, lastLongitude_, lastTimestamp_, location_, LogWriter::logStream_, started_, Timestamp::toString(), OutStream::write(), writeSyslogItems(), LogWriter::wroteFooter_, and LogWriter::wroteHeader_.

unsigned int KmlLogWriter::writeHeader ( )

virtual

Write the log header, if any.

Reimplemented from LogWriter.

References OutStream::bytesWritten(), color_, Str::cStr(), LogWriter::isValid(), LogWriter::logStream_, vehicleName_, OutStream::write(), LogWriter::wroteFooter_, and LogWriter::wroteHeader_.

unsigned int KmlLogWriter::writeSyslogItems ( const char *  latestCoordinates )

protected

References OutStream::bytesWritten(), KmlLogWriter::SyslogItem::coordinates_, Syslog::CRITICAL, Str::cStr(), Syslog::DEBUG, doDepth_, emitTimestamps_, Str::EMPTY_STR, Syslog::ERROR, Syslog::FAULT, Syslog::IMPORTANT, Syslog::INFO, Str::length(), LogWriter::logStream_, KmlLogWriter::SyslogItem::message_, Syslog::NONE, KmlLogWriter::SyslogItem::severity_, syslogItems_, KmlLogWriter::SyslogItem::timestamp_, Timestamp::toString(), and OutStream::write().

Referenced by write(), and writeFooter().

Member Data Documentation

const char* KmlLogWriter::color_

private

Referenced by setColor(), and writeHeader().

Timestamp KmlLogWriter::currentTimestamp_

private

Referenced by write(), and writeFooter().

double KmlLogWriter::depth_

private

Referenced by write(), and writeFooter().

bool KmlLogWriter::doDepth_

private

Referenced by write(), writeFooter(), and writeSyslogItems().

bool KmlLogWriter::emitTimestamps_

private

Referenced by write(), writeFooter(), and writeSyslogItems().

bool KmlLogWriter::haveFirstDepth_

private

Referenced by write().

bool KmlLogWriter::haveFirstLocation_

private

Referenced by write().

bool KmlLogWriter::haveNewDepth_

private

Referenced by write().

bool KmlLogWriter::haveNewLatitude_

private

Referenced by write().

bool KmlLogWriter::haveNewLongitude_

private

Referenced by write().

const char * KmlLogWriter::KmlArgs_ = {"depth", "latitude", "longitude"}

staticprivate

Referenced by GetKmlArgs().

float KmlLogWriter::KmlErrors_ = { 0.5, D2R( 0.000005 ), D2R( 0.000005 ) }

staticprivate

Referenced by GetKmlErrors().

const char * KmlLogWriter::KmlUnits_ = {Units::METER.getName(), Units::DEGREE.getName(), Units::DEGREE.getName()}

staticprivate

Referenced by GetKmlUnits().

double KmlLogWriter::lastLatitude_

private

Referenced by write(), and writeFooter().

double KmlLogWriter::lastLongitude_

private

Referenced by write(), and writeFooter().

Timestamp KmlLogWriter::lastTimestamp_

private

Referenced by write(), and writeFooter().

unsigned int KmlLogWriter::lineCount_

private

Referenced by write().

Location KmlLogWriter::location_

private

Referenced by write(), and writeFooter().

bool KmlLogWriter::started_

private

Referenced by write(), and writeFooter().

FlexArray<SyslogItem*> KmlLogWriter::syslogItems_

protected

Referenced by write(), and writeSyslogItems().

Str KmlLogWriter::vehicleName_

protected

Referenced by writeHeader().

const Location KmlLogWriter::ZERO_LOCATION

staticprivate

Referenced by write().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/logger/KmlLogWriter.h
• /Volumes/ubuntu_share/lrauv-application/Source/logger/KmlLogWriter.cpp
