Implementation of a DataElement as a "UniversalDataElement". More...

#include <UniversalDataElement.h>

Inheritance diagram for UniversalDataElement:

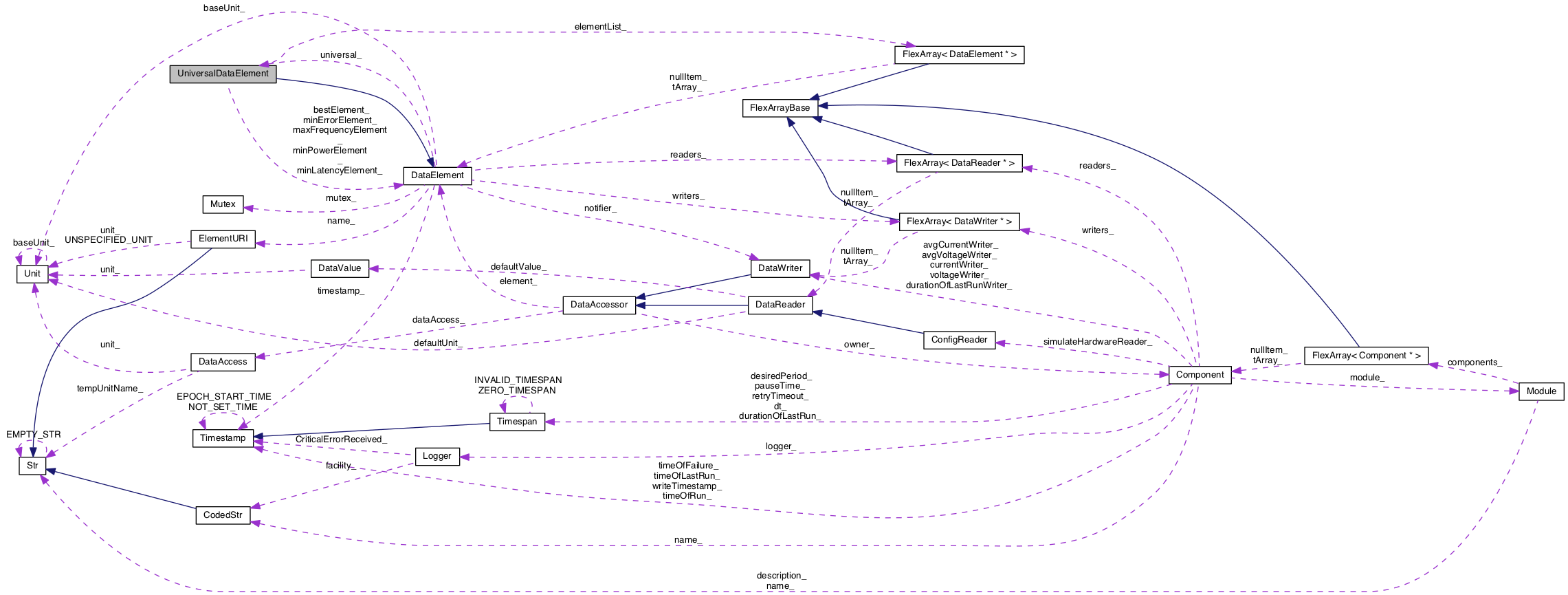

Collaboration diagram for UniversalDataElement:

Public Member Functions
	UniversalDataElement (const UniversalURI &name, const DataValue *dataValue)
	Constructor for a universal DataElement. More...

virtual	~UniversalDataElement ()
	Destructor. More...

virtual DataValue *	getDataValue (void) const
	Implements the pure virtual from DataElement. More...

virtual float	getAccuracy (const Unit &unit) const throw ( UninitializedException )
	Get the current DataElement accuracy. More...

virtual float	getWrittenAccuracy (const Unit &unit) const
	Get the last written DataElement accuracy. More...

virtual bool	isOrphaned (void) const
	Implements the UniversalDataElement's sense of "orphaned." A UniversalDataElement is orphaned if it has no DataElements registered to it. More...

void	addElement (DataElement &element)
	Adds the given DataElement to the list of participants in this Universal. More...

virtual bool	isUniversal () const

void	notifyChangeDone (Component *notifier)
	Causes the universal to be recalculated, if a change is pending. More...

void	notifyChangeDone (DataWriter *notifier)

void	recalculate (void)
	Reevaluate all participants and choose a new best solution. More...

DataElement *	getBestElement (DataAccessor::RequestStrategy strategy=DataAccessor::MIN_ERROR) const

virtual bool	wasTouchedSinceLastRun (const Component *component)
	Returns true if the value was touched since the last run of the indicated component. More...

virtual const Timestamp &	getTimestamp () const
	Returns the timestamp of last write. More...

bool	isDataRequested (DataElement *element)
	Returns true if one of the registered readers is requesting data and the indicated element is intended to provide the data. More...

bool	isAnyDataRequested ()
	Returns true if one of the registered readers is requesting data. More...

Public Member Functions inherited from DataElement
virtual	~DataElement ()
	Destructor. More...

DataReader *	findReader (const ElementURI &uri)
	Returns the DataReader associated with this DataElement and the specified ElementURI. More...

DataWriter *	findWriter (const ElementURI &uri)
	Returns the DataWriter associated with this DataElement and the specified ElementURI. More...

const ElementURI &	getUri (void) const
	Get the full ElementURI for the DataElement. More...

virtual bool	isUnavailable (void) const
	Is the element "unavailable". More...

virtual bool	isInvalid (void) const
	Is the element "invalid". More...

virtual bool	isOwnersFailed (void) const

bool	setUnavailable (bool unavailable, DataWriter *notifier)
	Set the element's unavailable flag. More...

bool	setUnavailable (bool unavailable, Component *notifier)

bool	setInvalid (bool invalid, DataWriter *notifier)
	Set the element's invalid flag. More...

bool	setInvalid (bool invalid, Component *notifier)

virtual void	setTimestamp (const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Sets the timestamp of last write Used if a more acurate timestamp is available. More...

virtual bool	isOwnersActive (void) const

virtual bool	isActivatable (void) const
	Indicates if the element is capable of being "active". More...

virtual bool	isActive (void) const
	Indicates if the element is "active". More...

bool	isBest (DataAccessor::RequestStrategy strategy=DataAccessor::MIN_ERROR) const
	Indicates if the element is the "best" of a set of measurements that feed into a universal. More...

const Unit *	getUnit (void) const
	Returns the Unit associated with this data element or NULL if no Unit is associated. More...

void	registerUniversal (UniversalDataElement *abstract)
	Indicates this DataElement should participate in the selection process for the given Universal. More...

UniversalDataElement *	getUniversal (void) const
	Returns the universal data element registered to this data element. More...

void	registerReader (DataReader *reader)
	Add the given DataReader to the list of readers for this DataElement. More...

void	unregisterReader (DataReader *reader)
	Remove the given DataReader from the list of reader for this DataElement. More...

unsigned int	readerCount () const
	The number of readers currently registered to this DataElement. More...

bool	hasReaders (void) const
	Does this DataElement have any readers? More...

bool	isDataRequested ()
	Returns true if one of the registered readers is requesting data. More...

bool	isImplemented ()
	Returns true if there is a non-failed "implementor" reader of this element. More...

void	registerWriter (DataWriter *writer)
	Add the given writer to the list of registered writers for this DataElement. More...

void	unregisterWriter (DataWriter *writer)
	Remove the given writer from the list of registered writers for this DataElement. More...

unsigned int	writerCount () const
	Number of writers registered to this DataElement. More...

bool	hasWriters (void) const
	Does this DataElement have any writers? More...

virtual void	registerRead (DataReader &reader)

virtual void	registerWrite (DataWriter &writer, bool changed)

void	registerChangePending (DataWriter *writer)

void	registerChangeDone (Component *notifier)

void	registerChangeDone (void)

virtual bool	setAccuracy (DataWriter &writer, const Unit &unit, const float accuracy)
	Set just the accuracy. More...

virtual const Unit *	getBaseUnit ()
	The base unit that all writers and readers must use when accessing this value. More...

virtual size_t	getTypeSize ()
	The base size that all writers must specify. More...

float	getPower ()
	Power used by the component that owns this element. More...

float	getError ()
	Error in measurements. More...

float	getLatency ()
	Latency involved in requesting a measurement. More...

float	getFrequency ()
	Frequency of measurements possible. More...

void	setPower (float power)
	Power used by the component that owns this element. More...

void	setLatency (float latency)
	Latency involved in requesting a measurement. More...

void	setFrequency (float frequency)
	Frequency of measurements possible. More...

virtual bool	get (DataReader &reader, const Unit &unit, bool &readTo) throw ( UninitializedException )

virtual bool	get (DataReader &reader, const Unit &unit, unsigned char &readTo) throw ( UninitializedException )

virtual bool	get (DataReader &reader, const Unit &unit, double &readTo) throw ( UninitializedException )

virtual bool	get (DataReader &reader, const Unit &unit, float &readTo) throw ( UninitializedException )

virtual bool	get (DataReader &reader, const Unit &unit, int &readTo) throw ( UninitializedException )

virtual bool	get (DataReader &reader, DataValue &readTo) throw ( UninitializedException )

virtual const double	asDouble (DataReader &reader, const Unit &unit) throw ( UninitializedException )

virtual const int	asInt (DataReader &reader, const Unit &unit) throw ( UninitializedException )

virtual const Str	asString (DataReader &reader, const Unit &unit) throw ( UninitializedException )

virtual bool	set (DataWriter &writer, const Unit &unit, const bool value, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set functions set int value. More...

virtual bool	set (DataWriter &writer, const Unit &unit, const unsigned char value, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set functions set int value. More...

virtual bool	set (DataWriter &writer, const Unit &unit, const double value, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set functions set int value. More...

virtual bool	set (DataWriter &writer, const Unit &unit, const float value, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set functions set int value. More...

virtual bool	set (DataWriter &writer, const Unit &unit, const int value, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set functions set int value. More...

virtual bool	set (DataWriter &writer, const DataValue &value, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set functions set int value. More...

virtual bool	setWithAccuracy (DataWriter &writer, const Unit &unit, const bool value, const float accuracy, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set w/ Accuracy functions. More...

virtual bool	setWithAccuracy (DataWriter &writer, const Unit &unit, const unsigned char value, const float accuracy, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set w/ Accuracy functions. More...

virtual bool	setWithAccuracy (DataWriter &writer, const Unit &unit, const double value, const float accuracy, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set w/ Accuracy functions. More...

virtual bool	setWithAccuracy (DataWriter &writer, const Unit &unit, const int value, const float accuracy, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set w/ Accuracy functions. More...

virtual bool	setWithAccuracy (DataWriter &writer, const DataValue &value, const float accuracy, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Set w/ Accuracy functions. More...

Protected Member Functions
virtual float	setAccuracy (const Unit &unit, float accuracy)
	Protected function. More...

virtual void	setDataValue (DataValue *dataValue)

virtual float	getBaseAccuracy () const
	Returns the accuracy in base, unscaled SI units. More...

Protected Member Functions inherited from DataElement
	DataElement (const ElementURI &name, const Unit *baseUnit, size_t typeSize)
	Protected constructor for base class. More...

bool	setWrittenAccuracy ()
	Called before set commands to update the written accuracy Returns true if the written accuracy has changed. More...

virtual void	setBaseUnit (const Unit *baseUnit)

virtual void	setTypeSize (const size_t typeSize)

Protected Attributes
DataElement *	bestElement_
	The current "best" DataElement (minError and enabled). More...

DataElement *	minPowerElement_
	The current "minPower" DataElement. More...

DataElement *	minErrorElement_
	The current "minError" DataElement. More...

DataElement *	minLatencyElement_
	The current "minLatency" DataElement. More...

DataElement *	maxFrequencyElement_
	The current "maxFrequency" DataElement. More...

float	accuracy_
	The defaultValue_ to use if there if the Universal can't find a "best value". More...

DataElementList	elementList_
	List of participating DataElements. More...

Protected Attributes inherited from DataElement
ElementURI	name_
	The DataElement ElementURI. More...

UniversalDataElement *	universal_
	Queue of UniversalElements which this DataElement "participates in". More...

DataWriter *	notifier_
	The data writer responsable for notifying this element's Universal data element that a change is pending. More...

FlexArray< DataWriter * >	writers_
	List of all registered DataWriters. More...

FlexArray< DataReader * >	readers_
	List of all registered DataReaders. More...

bool	unavailable_
	The "unavailable" flag is actually a simple boolean which is set by the user or by the DataElement itself. More...

bool	invalid_
	The "invalid" flag is actually a simple boolean which is set by the user or by the DataElement itself. More...

bool	wasOrphaned_
	Indicates that the element was previously orphaned. More...

Mutex	mutex_
	Mutex for thread-safing an instance of DataElement. More...

float	writtenAccuracy_
	Accuracy of last written value. More...

Timestamp	timestamp_
	Timestamp of last write. More...

bool	hasBeenSet_
	Flag – false until the first call to set done. More...

const Unit *	baseUnit_
	The base unit that all writers and readers must use when accessing this value. More...

size_t	typeSize_
	The base size that all writers must specify. More...

float	power_
	Power used by the component that owns this element. More...

float	latency_
	Latency involved in requesting a measurement. More...

float	frequency_
	Frequency of measurements possible. More...

Private Member Functions
	UniversalDataElement (const UniversalDataElement &old)

Additional Inherited Members
Static Public Attributes inherited from DataElement
static const float	NO_ACCURACY = 3.25e30
	Defines an accuracy quantity which means "no accuracy specified" typically means "don't use" i.e. More...

Detailed Description

Implementation of a DataElement as a "UniversalDataElement".

Universal DataElements essentially contain a list of DataElements with the same UniversalURI name. When a DataValue is requested, the DataValue from the "best" DataElement is returned.

The determination of "best" is done whenever a DataElement changes in a significnat way, such as changing its accuracy, its failed state, or its orphaned state.

Constructor & Destructor Documentation

UniversalDataElement::UniversalDataElement	(	const UniversalURI &	name,
		const DataValue *	dataValue
	)

Constructor for a universal DataElement.

Parameters

name	The UniversalURI for this universal.
dataValue	Initial dataValue used to define dataType & size, etc.

UniversalDataElement::~UniversalDataElement ( )

virtual

Destructor.

UniversalDataElement::UniversalDataElement ( const UniversalDataElement & old )

private

Member Function Documentation

void UniversalDataElement::addElement ( DataElement & element )

Adds the given DataElement to the list of participants in this Universal.

Parameters

element The DataElement which is now checked for this Universal.

References elementList_, DataElement::mutex_, and FlexArray< T >::push().

Referenced by Component::newUniversalBlobWriter(), Slate::NewUniversalWriter(), and Component::newUniversalWriter().

float UniversalDataElement::getAccuracy	(	const Unit &	unit	)	const
throw	(	UninitializedException
	)

virtual

Get the current DataElement accuracy.

Implements the pure virtual from DataElement.

Returns: Current accuracy metric for the DataValue.

Implements DataElement.

virtual float UniversalDataElement::getBaseAccuracy ( ) const

inlineprotectedvirtual

Returns the accuracy in base, unscaled SI units.

Implements DataElement.

References accuracy_.

DataElement * UniversalDataElement::getBestElement ( DataAccessor::RequestStrategy strategy = DataAccessor::MIN_ERROR ) const

References bestElement_.

Referenced by DataElement::isBest().

DataValue * UniversalDataElement::getDataValue ( void ) const

virtual

Implements the pure virtual from DataElement.

Returns: Pointer to the the DataValue.

Implements DataElement.

References bestElement_, DataElement::getDataValue(), and DataElement::isInvalid().

const Timestamp & UniversalDataElement::getTimestamp ( void ) const

virtual

Returns the timestamp of last write.

Reimplemented from DataElement.

References bestElement_, DataElement::getTimestamp(), and Timestamp::NOT_SET_TIME.

float UniversalDataElement::getWrittenAccuracy ( const Unit & unit ) const

virtual

Get the last written DataElement accuracy.

Overrides the virtual from DataElement.

Returns: Last written accuracy metric for the DataValue.

Reimplemented from DataElement.

References bestElement_, DataElement::getWrittenAccuracy(), DataElement::isInvalid(), and DataElement::NO_ACCURACY.

bool UniversalDataElement::isAnyDataRequested ( )

Returns true if one of the registered readers is requesting data.

References DataReader::getRequestStrategy(), DataAccessor::NO_STRATEGY, DataElement::readers_, and FlexArrayBase::size().

Referenced by UniversalDataWriter::isAnyDataRequested().

bool UniversalDataElement::isDataRequested ( DataElement * element )

Returns true if one of the registered readers is requesting data and the indicated element is intended to provide the data.

References DataAccessor::ALL_DEVICES, DataReader::getRequestStrategy(), DataAccessor::MAX_FREQUENCY, maxFrequencyElement_, DataAccessor::MIN_ERROR, DataAccessor::MIN_LATENCY, DataAccessor::MIN_POWER, minErrorElement_, minLatencyElement_, minPowerElement_, DataAccessor::NO_STRATEGY, DataElement::readers_, and FlexArrayBase::size().

Referenced by DataElement::isDataRequested().

bool UniversalDataElement::isOrphaned ( void ) const

virtual

Implements the UniversalDataElement's sense of "orphaned." A UniversalDataElement is orphaned if it has no DataElements registered to it.

It is not orphaned (it is failed) if it's unable to select a DataElement.

Returns: true if this UniversalDataElement has no DataElements registered to it.

Reimplemented from DataElement.

References elementList_, and FlexArrayBase::isEmpty().

virtual bool UniversalDataElement::isUniversal ( ) const

inlinevirtual

Reimplemented from DataElement.

void UniversalDataElement::notifyChangeDone ( Component * notifier )

Causes the universal to be recalculated, if a change is pending.

References bestElement_, EventEntry::DATA_STATE_CHANGE_SET_BEST, Component::getLogger(), Logger::log(), and recalculate().

Referenced by Component::newUniversalBlobWriter(), Slate::NewUniversalWriter(), Component::newUniversalWriter(), and DataElement::registerChangeDone().

void UniversalDataElement::notifyChangeDone ( DataWriter * notifier )

References bestElement_, EventEntry::DATA_STATE_CHANGE_SET_BEST, Component::getLogger(), DataAccessor::getOwner(), Logger::log(), and recalculate().

void UniversalDataElement::recalculate ( void )

Reevaluate all participants and choose a new best solution.

The heart of the Universal, go through all registered DataElements, find the best (most accurate).

References accuracy_, bestElement_, elementList_, DataElement::getBaseAccuracy(), DataElement::getError(), DataElement::getFrequency(), DataElement::getLatency(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), DataElement::getPower(), DataElement::hasBeenSet_, DataElement::invalid_, DataElement::isActivatable(), DataElement::isActive(), DataElement::isInvalid(), maxFrequencyElement_, minErrorElement_, minLatencyElement_, minPowerElement_, DataElement::mutex_, and DataElement::NO_ACCURACY.

Referenced by notifyChangeDone(), and Component::setRunState().

float UniversalDataElement::setAccuracy	(	const Unit &	unit,
		float	accuracy
	)

protectedvirtual

Protected function.

Shouldn't be able to set the Universal's accuracy. Does nothing. Returns current value for accuracy.

Implements DataElement.

virtual void UniversalDataElement::setDataValue ( DataValue * dataValue )

inlineprotectedvirtual

Implements DataElement.

bool UniversalDataElement::wasTouchedSinceLastRun ( const Component * component )

virtual

Returns true if the value was touched since the last run of the indicated component.

Reimplemented from DataElement.

References bestElement_, and DataElement::wasTouchedSinceLastRun().

Member Data Documentation

float UniversalDataElement::accuracy_

protected

The defaultValue_ to use if there if the Universal can't find a "best value".

The current Universal accuracy. Set either to the accuracy of the current "best value" or to DataElement::NoAccuracy_s if the Universal is failed.

Referenced by getBaseAccuracy(), and recalculate().

DataElement* UniversalDataElement::bestElement_

protected

The current "best" DataElement (minError and enabled).

Referenced by getBestElement(), getDataValue(), getTimestamp(), getWrittenAccuracy(), notifyChangeDone(), recalculate(), and wasTouchedSinceLastRun().

DataElementList UniversalDataElement::elementList_

protected

List of participating DataElements.

Referenced by addElement(), isOrphaned(), and recalculate().

DataElement* UniversalDataElement::maxFrequencyElement_

protected

The current "maxFrequency" DataElement.

Referenced by isDataRequested(), and recalculate().

DataElement* UniversalDataElement::minErrorElement_

protected

The current "minError" DataElement.

Referenced by isDataRequested(), and recalculate().

DataElement* UniversalDataElement::minLatencyElement_

protected

The current "minLatency" DataElement.

Referenced by isDataRequested(), and recalculate().

DataElement* UniversalDataElement::minPowerElement_

protected

The current "minPower" DataElement.

Referenced by isDataRequested(), and recalculate().

The documentation for this class was generated from the following files:

/Volumes/ubuntu_share/lrauv-application/Source/data/UniversalDataElement.h
/Volumes/ubuntu_share/lrauv-application/Source/data/UniversalDataElement.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
