DataReader Class Reference

A DataAccessor that reads values from the Slate Contains a default dataValue that must not be NULL, which is returned if a dataValue request is made and this Accessor's associated DataElement is unavailable for some reason (not initialized, orphaned, or failed). More...

#include <DataReader.h>

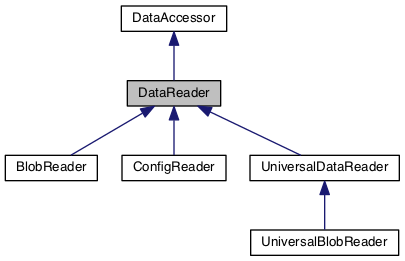

Inheritance diagram for DataReader:

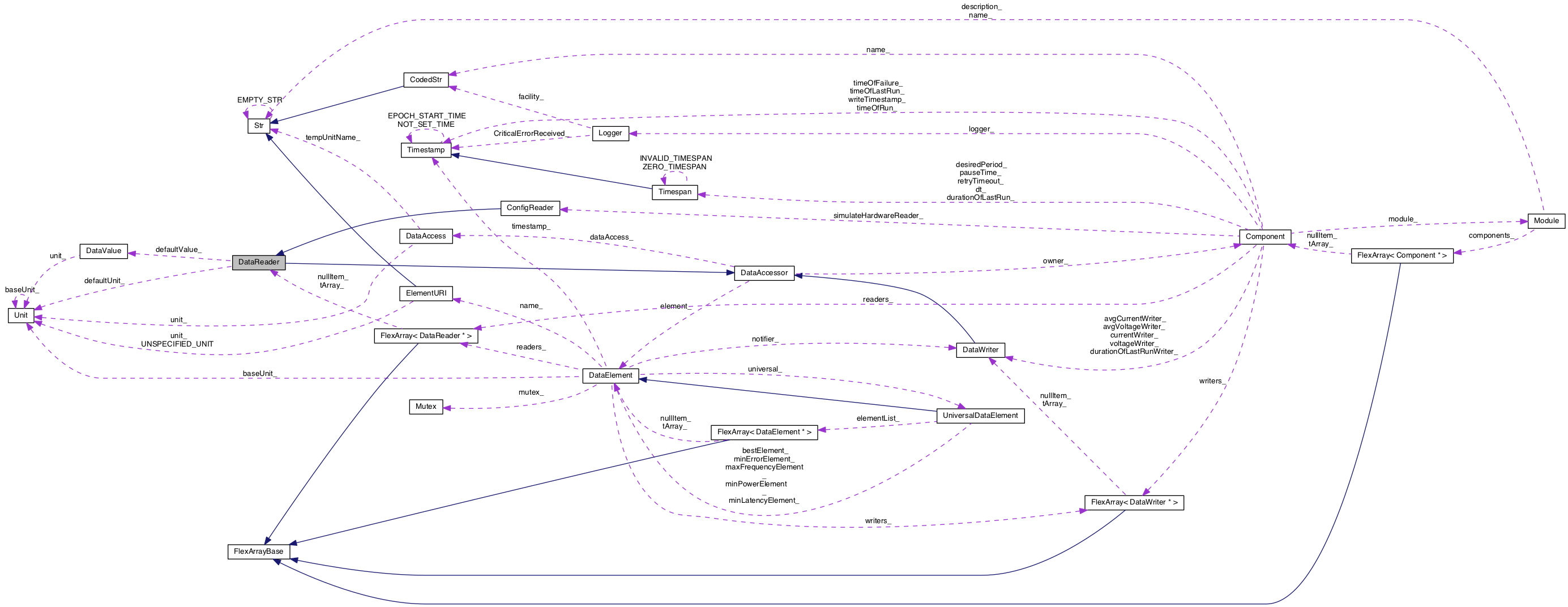

Collaboration diagram for DataReader:

Public Member Functions
	DataReader (Component *owner, DataElement &element, const DataValue *defaultValue, bool deleteDefaultValue=true)
	DataReader (Component *owner, DataElement &element, const Unit &defaultUnit)
virtual	~DataReader ()
const Unit *	getDefaultUnit ()
bool	isUnavailable (void)
	Status and state functions. More...
bool	isInvalid (void)
bool	isOrphaned (void)
bool	isActive (void)
bool	read (const Unit &unit, unsigned char &readTo)
	Get functions. More...
bool	read (const Unit &unit, double &readTo)
bool	read (const Unit &unit, float &readTo)
bool	read (const Unit &unit, int &readTo)
bool	read (bool &readTo)
bool	read (Timespan &readTo)
bool	read (DataValue &readTo)
int	asInt (const Unit &unit)
double	asDouble (const Unit &unit) __attribute__((deprecated))
Str	asString (const Unit &unit)
const Timestamp &	getTimestamp (void) const
	Returns the Timestamp of the last write to this reader's DataElement. More...
bool	wasTouchedSinceLastRun (const Component *component)
	Returns true if the value was touched since the last run of the indicated component. More...
virtual void	requestData (bool requestingData)
virtual void	requestData (RequestStrategy requestStrategy)
bool	isRequestingData (void)
RequestStrategy	getRequestStrategy (void)
void	setImplementor (bool implementor=true)
bool	isImplementor ()
Public Member Functions inherited from DataAccessor
virtual	~DataAccessor ()
virtual DataElement &	getElement (void) const
virtual Component *	getOwner (void) const
virtual const ElementURI &	getUri (void) const
AccessorType	getAccessorType () const
DataAccess *	getDataAccess () const
Logger::TimePrecisionType	getTimePrecision () const

Protected Attributes
RequestStrategy	requestStrategy_
const DataValue *	defaultValue_
const Unit &	defaultUnit_
bool	deleteDefaultValue_
bool	implementor_
Protected Attributes inherited from DataAccessor
Component *	owner_
DataElement &	element_
AccessorType	accessorType_
Logger::TimePrecisionType	timePrecision_
DataAccess *	dataAccess_

Private Member Functions
	DataReader (const DataReader &old)

Additional Inherited Members
Public Types inherited from DataAccessor
enum	AccessorType { DATA_READER = 0, DATA_WRITER = 1 }
enum	RequestStrategy {   NO_STRATEGY = -1, MIN_POWER, MIN_ERROR, MIN_LATENCY,   MAX_FREQUENCY, ALL_DEVICES, STRATEGY_COUNT }
Static Public Member Functions inherited from DataAccessor
static RequestStrategy	Str2RequestStrategy (const char *const strategyStr)
static const char *	RequestStrategy2Str (DataAccessor::RequestStrategy strategy)
Static Public Attributes inherited from DataAccessor
static const char *const	REQUEST_STRATEGY_STRS [STRATEGY_COUNT]
Protected Member Functions inherited from DataAccessor
	DataAccessor (Component *owner, DataElement &element, AccessorType accessorType, UniversalDataElement *universal, Logger::TimePrecisionType timePrecision=Logger::TIME_PRECISION_MILLIS)
	Protected Constructor. More...

Detailed Description

A DataAccessor that reads values from the Slate Contains a default dataValue that must not be NULL, which is returned if a dataValue request is made and this Accessor's associated DataElement is unavailable for some reason (not initialized, orphaned, or failed).

Constructor & Destructor Documentation

DataReader::DataReader	(	Component *	owner,
		DataElement &	element,
		const DataValue *	defaultValue,
		bool	deleteDefaultValue = true
	)

References Component::registerReader(), and DataElement::registerReader().

DataReader::DataReader	(	Component *	owner,
		DataElement &	element,
		const Unit &	defaultUnit
	)

References Component::registerReader(), and DataElement::registerReader().

DataReader::~DataReader ( )

virtual

References defaultValue_, deleteDefaultValue_, DataAccessor::element_, DataAccessor::owner_, Component::unregisterReader(), and DataElement::unregisterReader().

DataReader::DataReader ( const DataReader &  old )

private

Member Function Documentation

double DataReader::asDouble

(

const Unit &

unit

)

References DataElement::asDouble(), DataValue::copyTo(), defaultValue_, DataAccessor::element_, and DataElement::isActive().

int DataReader::asInt

(

const Unit &

unit

)

References DataElement::asInt(), DataValue::copyTo(), defaultValue_, DataAccessor::element_, and DataElement::isActive().

Referenced by CBIT::handleComponentFaults(), OffshoreEnvelope::readParams(), WaterDepthEnvelope::readParams(), and Turbulence_NPS::writeData().

Str DataReader::asString

(

const Unit &

unit

)

References DataElement::asString(), defaultValue_, DataAccessor::element_, DataElement::isActive(), and DataValue::toString().

Referenced by SBIT::initialize(), ExternalSim::initialize(), and SyslogComponent::run().

const Unit * DataReader::getDefaultUnit

(

)

References defaultUnit_.

Referenced by LuaAPI::Exec(), MissionItem::initialize(), and ReadDataComponent::requestData().

RequestStrategy DataReader::getRequestStrategy ( void  )

inline

References requestStrategy_.

Referenced by UniversalDataElement::isAnyDataRequested(), and UniversalDataElement::isDataRequested().

const Timestamp & DataReader::getTimestamp

(

void

)

const

Returns the Timestamp of the last write to this reader's DataElement.

• Meets requirement Time of last update for every data value must be available.

References DataAccessor::element_, and DataElement::getTimestamp().

Referenced by PeakDetectHorizontal::calcSatisfied(), ValueClause::evalSide(), ReadDataComponent::isSatisfied(), Navigator::readExternalFix(), InternalSim::run(), and NavigationSim::run().

bool DataReader::isActive

(

void

)

References DataAccessor::element_, and DataElement::isActive().

Referenced by VerticalTemperatureHomogeneityIndexCalculator::addSample(), NAL9602::awake(), NAL9602::belowSurfaceThreshold(), ZigZag::calculate(), YoYo::calculate(), CBIT::checkDepth(), GoToSurface::checkPitchAndAltitude(), HorizontalControl::controlHeading(), VerticalControl::controlVertical(), Lane::doRun(), CBIT::empiricalFaultClassification(), PNI_TCM::getMagneticVariation(), NAL9602::goToSleep(), CBIT::handleComponentFaults(), Waypoint::initialize(), Circle::initialize(), HFRadarModelPoint::initialize(), Lane::initialize(), NAL9602::isDataRequested(), ElevatorServo::isNeeded(), RudderServo::isNeeded(), ThrusterServo::isNeeded(), Waypoint::isSatisfied(), Circle::isSatisfied(), KeepStation::isSatisfied(), HFRCMSurfaceCurrentAtVehicleLocation::lookupEmpiricalOrthogonalFunctions(), VerticalControl::overrideVertical(), DVL_micro::processNQ1(), StratificationFrontDetector::readData(), SetSpeed::readParams(), PeakDetectHorizontal::readParams(), PeakDetectVsDepth::readParams(), OffshoreEnvelope::readParams(), WaterDepthEnvelope::readParams(), Lane::readParams(), AltitudeEnvelope::readParams(), TempGradientCalculator::run(), SpeedCalculator::run(), Depth_Keller::run(), SpeedControl::run(), IBIT::run(), VerticalControl::run(), NavChart::run(), HorizontalControl::run(), HFRCMReconstructedInterpolator::run(), HFRCMTimeInterpolator::run(), DepthRateCalculator::run(), Tracking::run(), ElevatorServo::runnable(), MassServo::runnable(), RudderServo::runnable(), BuoyancyServo::runnable(), ThrusterServo::runnable(), AHRS_3DMGX3::runnable(), CTD_NeilBrown::runnable(), AHRS_sp3003D::runnable(), VerticalControl::setMassAndElevator(), VerticalControl::setPitch(), Radio_Surface::shouldBeOn(), Universal_Test::test1DUniversalBlobReadWrite(), Universal_Test::test3DUniversalBlobReadWrite(), Blob_Test::testReadWrite(), and Blob_Test::testReadWriteConversions().

bool DataReader::isImplementor ( )

inline

References implementor_.

Referenced by DataElement::isImplemented().

bool DataReader::isInvalid

(

void

)

References DataAccessor::element_, and DataElement::isInvalid().

bool DataReader::isOrphaned

(

void

)

References DataAccessor::element_, and DataElement::isOrphaned().

bool DataReader::isRequestingData ( void  )

inline

References DataAccessor::NO_STRATEGY, and requestStrategy_.

Referenced by CommandLine::getLines(), and DataElement::isDataRequested().

bool DataReader::isUnavailable

(

void

)

Status and state functions.

References DataAccessor::element_, and DataElement::isUnavailable().

bool DataReader::read	(	const Unit &	unit,
		unsigned char &	readTo
	)

Get functions.

References DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), and DataElement::isActive().

Referenced by BuoyancyServo::abovePumpDepth(), VerticalTemperatureHomogeneityIndexCalculator::addSample(), HFRCMVirtualSurfaceDrifter::advect(), NAL9602::belowSurfaceThreshold(), PeakDetectVsDepth::calcSatisfied(), Buoyancy::calcSatisfied(), ZigZag::calculate(), YoYo::calculate(), CBIT::checkDepth(), CBIT::checkLocation(), GoToSurface::checkPitchAndAltitude(), CommandLine::commandConversation(), VerticalControl::controlDepth(), VerticalControl::controlDepthRate(), HorizontalControl::controlHeading(), SpeedControl::controlSpeed(), VerticalControl::controlVertical(), IBIT::ctrlSurfaceCheckPos(), SBIT::ctrlSurfaceCheckPos(), Lane::doRun(), CBIT::empiricalFaultClassification(), ValueClause::evalSide(), LuaAPI::Exec(), VerticalControl::floatAtSurface(), CommandLine::getLines(), PNI_TCM::getMagneticVariation(), AcousticModem_Benthos_ATM900::gotNewQuery(), DAT::gotNewQuery(), HorizontalControl::headingControl(), HFRadarModelCalc::HFRadarModelCalc(), HFRCMSurfaceCurrentAtVehicleLocation::HFRCMSurfaceCurrentAtVehicleLocation(), UniversalFixResidualReporter::initialize(), Circle::initialize(), Point::initialize(), Waypoint::initialize(), NavChartDb::initialize(), HFRadarModelPoint::initialize(), HFRCMSpaceInterpolator::initialize(), HFRCMReconstructedInterpolator::initialize(), HorizontalControl::initialize(), KeepStation::initialize(), Lane::initialize(), MissionItem::initialize(), ElevatorServo::isNeeded(), RudderServo::isNeeded(), BuoyancyServo::isNeeded(), MassServo::isNeeded(), ThrusterServo::isNeeded(), Waypoint::isSatisfied(), Circle::isSatisfied(), HFRadarModelPoint::isSatisfied(), KeepStation::isSatisfied(), HFRadarCompactModelForecaster::loadHistory(), SimulatorUtils::LoadInit(), GoToSurface::loadParams(), HFRCMSurfaceCurrentAtVehicleLocation::lookupEmpiricalOrthogonalFunctions(), VerticalControl::massAndElevatorControl(), CBIT::monitorBatteryTemps(), CBIT::monitorEnvironmentals(), VerticalControl::overrideVertical(), CTD_NeilBrown::preprocessData(), Tracking::processFromDAT(), DVL_micro::processNQ1(), DepthEnvelope::projectDepth(), ExternalSim::publishState(), HFRCMReconstructedInterpolator::publishSurfaceCurrentAtVehicleLocation(), HFRadarModelCalc::publishSurfaceCurrentAtVehicleLocation(), UniversalBlobReader::read(), BlobReader::read(), Rowe_600::readAccuracyConfigs(), ESPComponent::readAdjustableConfigs(), TempGradientCalculator::readConfig(), VerticalTemperatureHomogeneityIndexCalculator::readConfig(), DepthServo::readConfig(), StratificationFrontDetector::readConfig(), Depth_Keller::readConfig(), IBIT::readConfig(), VerticalControl::readConfig(), SBIT::readConfig(), SpeedControl::readConfig(), PitchServo::readConfig(), DVL_micro::readConfig(), PAR_Licor::readConfig(), Onboard::readConfig(), WetLabsBB2FL::readConfig(), AcousticModem_Benthos_ATM900::readConfig(), HorizontalControl::readConfig(), DAT::readConfig(), SCPI::readConfig(), AHRS_3DMGX3::readConfig(), PNI_TCM::readConfig(), CTD_NeilBrown::readConfig(), CANONSampler::readConfig(), PrepareToDive::readConfig(), Batt_Ocean_Server::readConfig(), DataOverHttps::readConfig(), BPC1::readConfig(), EZServoServo::readConfig(), Turner_Cyclops_rhodamine::readConfig(), Rowe_600::readConfig(), Rowe_600LCM::readConfig(), ElevatorServo::readConfig(), RudderServo::readConfig(), CBIT::readConfig(), MassServo::readConfig(), ThrusterServo::readConfig(), BuoyancyServo::readConfig(), AltitudeEnvelope::readConfig(), DepthEnvelope::readConfig(), YoYo::readConfig(), AHRS_sp3003D::readConfig(), NAL9602::readConfig(), Navigator::readConfigs(), ESPComponent::readConfigs(), StratificationFrontDetector::readData(), Navigator::readExternalFix(), Tracking::readFromDAT(), Rowe_600::readInterfaceConfigs(), Rowe_600::readOffsetConfigs(), SetSpeed::readParams(), Point::readParams(), GoToSurface::readParams(), PeakDetectHorizontal::readParams(), PeakDetectVsDepth::readParams(), PrepareToDive::readParams(), Pitch::readParams(), WaterDepthEnvelope::readParams(), OffshoreEnvelope::readParams(), DepthServo::readParams(), PitchServo::readParams(), AltitudeEnvelope::readParams(), Lane::readParams(), DepthEnvelope::readParams(), Pitch::readSettings(), DeadReckonUsingSpeedCalculator::readVehicleVelocity(), DeadReckonWithRespectToWater::readVehicleVelocity(), DeadReckonUsingDVLWaterTrack::readVehicleVelocity(), DeadReckonWithRespectToSeafloor::readVehicleVelocity(), DeadReckonUsingCompactModelForecast::readVehicleVelocity(), DeadReckonUsingMultipleVelocitySources::readVehicleVelocity(), Rowe_600::readWriterConfigs(), UniversalFixResidualReporter::reportFixResidual(), PeakDetectHorizontal::reportPeak(), ReadDataComponent::requestData(), TempGradientCalculator::run(), SpeedCalculator::run(), PAR_Licor::run(), Depth_Keller::run(), IBIT::run(), LoopControl::run(), NavChart::run(), YawRateCalculator::run(), HFRCMSurfaceCurrentAtVehicleLocation::run(), PitchRateCalculator::run(), HFRadarModelPoint::run(), MissionManager::run(), Circle::run(), DepthRateCalculator::run(), InternalSim::run(), ExternalSim::run(), NavigationSim::run(), DepthServo::run(), MissionItem::run(), HFRadarModel::runIfUnsatisfied(), AltitudeEnvelope::runIfUnsatisfied(), DepthEnvelope::runIfUnsatisfied(), ValueDetect::runIfUnsatisfied(), OffshoreEnvelope::runIfUnsatisfied(), WaterDepthEnvelope::runIfUnsatisfied(), MissionItem::runIfUnsatisfied(), ElevatorServo::runnable(), MassServo::runnable(), RudderServo::runnable(), BuoyancyServo::runnable(), ThrusterServo::runnable(), AHRS_3DMGX3::runnable(), CTD_NeilBrown::runnable(), AHRS_sp3003D::runnable(), CBIT::scanGFChan(), VerticalControl::setBuoyancy(), AHRS_sp3003D::setCalMode(), YoYo::setGoingDown(), HorizontalControl::setHeading(), HorizontalControl::setHeadingRate(), VerticalControl::setMassAndElevator(), VerticalControl::setPitch(), VerticalControl::setPitchRate(), Radio_Surface::shouldBeOn(), Component::simulateHardware(), OffshoreEnvelope_Test::testRun(), and WetLabsBB2FL::writeData().

bool DataReader::read	(	const Unit &	unit,
		double &	readTo
	)

References DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), and DataElement::isActive().

bool DataReader::read	(	const Unit &	unit,
		float &	readTo
	)

References DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), and DataElement::isActive().

bool DataReader::read	(	const Unit &	unit,
		int &	readTo
	)

References DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), and DataElement::isActive().

bool DataReader::read

(

bool &

readTo

)

References Units::BOOL, DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), and DataElement::isActive().

bool DataReader::read

(

Timespan &

readTo

)

References DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), DataElement::isActive(), Units::SECOND, and Timespan::Seconds().

bool DataReader::read

(

DataValue &

readTo

)

References DataValue::copyTo(), defaultValue_, DataAccessor::element_, DataElement::get(), and DataElement::isActive().

virtual void DataReader::requestData ( bool  requestingData )

inlinevirtual

Reimplemented in UniversalDataReader.

References DataAccessor::MIN_POWER, and DataAccessor::NO_STRATEGY.

Referenced by CommandLine::commandGFscan(), CommandLine::commandIbit(), CommandLine::getLines(), DeadReckonUsingSpeedCalculator::initialize(), DeadReckonUsingDVLWaterTrack::initialize(), DepthEnvelope::initialize(), HFRCMReconstructedInterpolator::initialize(), DeadReckonUsingMultipleVelocitySources::initialize(), HFRCMTimeInterpolator::initialize(), Tracking::requestAcousticData(), ReadDataComponent::requestData(), Tracking::requestVehiclePose(), IBIT::run(), and DepthEnvelope::uninitialize().

virtual void DataReader::requestData ( RequestStrategy  requestStrategy )

inlinevirtual

Reimplemented in UniversalDataReader.

References requestStrategy_.

void DataReader::setImplementor ( bool  implementor = true )

inline

References implementor_.

Referenced by BuoyancyServo::BuoyancyServo(), ElevatorServo::ElevatorServo(), MassServo::MassServo(), RudderServo::RudderServo(), and ThrusterServo::ThrusterServo().

bool DataReader::wasTouchedSinceLastRun

(

const Component *

component

)

Returns true if the value was touched since the last run of the indicated component.

References DataAccessor::element_, and DataElement::wasTouchedSinceLastRun().

Referenced by ZigZag::calculate(), YoYo::calculate(), CBIT::checkDepth(), VerticalControl::controlDepth(), HorizontalControl::controlHeading(), SpeedControl::controlSpeed(), VerticalControl::controlVertical(), Lane::doRun(), AcousticModem_Benthos_ATM900::gotNewQuery(), DAT::gotNewQuery(), CBIT::handleComponentFaults(), CBIT::monitorBatteryTemps(), VerticalControl::overrideVertical(), ExternalSim::publishState(), StratificationFrontDetector::readData(), PeakDetectHorizontal::readParams(), PeakDetectVsDepth::readParams(), DepthServo::readParams(), AltitudeEnvelope::readParams(), DepthEnvelope::readParams(), UniversalFixResidualReporter::run(), LoopControl::run(), HFRadarModelCalc::run(), NavChart::run(), HFRCMReconstructedInterpolator::run(), HFRCMTimeInterpolator::run(), HFRadarCompactModelForecaster::run(), ExternalSim::run(), Tracking::run(), VerticalControl::setMassAndElevator(), VerticalControl::setPitch(), ValueClause::wasTouchedSinceLastRun(), and WetLabsBB2FL::writeData().

Member Data Documentation

const Unit& DataReader::defaultUnit_

protected

Referenced by getDefaultUnit().

const DataValue* DataReader::defaultValue_

protected

Referenced by asDouble(), asInt(), asString(), read(), and ~DataReader().

bool DataReader::deleteDefaultValue_

protected

Referenced by ~DataReader().

bool DataReader::implementor_

protected

Referenced by isImplementor(), and setImplementor().

RequestStrategy DataReader::requestStrategy_

protected

Referenced by getRequestStrategy(), isRequestingData(), UniversalDataReader::requestData(), and requestData().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/data/DataReader.h
• /Volumes/ubuntu_share/lrauv-application/Source/data/DataReader.cpp
