#include <UniversalDataReader.h>

Inheritance diagram for UniversalBlobReader:

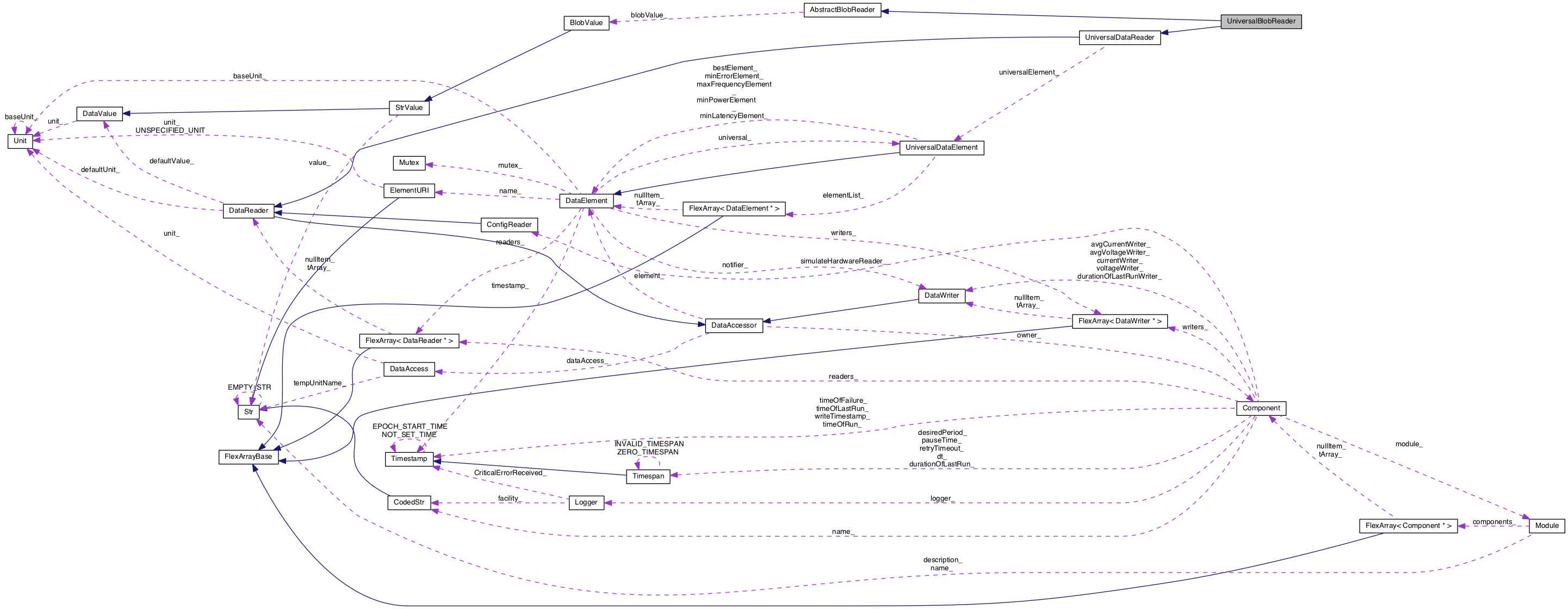

Collaboration diagram for UniversalBlobReader:

Public Member Functions
virtual	~UniversalBlobReader ()

virtual bool	read (DataValue &readTo)

virtual const ElementURI &	getUri (void) const

Public Member Functions inherited from UniversalDataReader
	UniversalDataReader (Component owner, UniversalDataElement &universalElement, const DataValue defaultValue, bool deleteDefaultValue=true)

	UniversalDataReader (Component *owner, UniversalDataElement &universalElement, const Unit &defaultUnit)

virtual	~UniversalDataReader ()

float	getAccuracy (const Unit &unit)
	Returns the DataElement's current accuracy (i.e., for the next write) More...

float	getWrittenAccuracy (const Unit &unit)
	Returns the DataElement's accuracy at the time of the last write;. More...

virtual void	requestData (bool requestingData)

void	requestData (RequestStrategy requestStrategy)

UniversalDataElement &	getUniversalElement ()

Public Member Functions inherited from DataReader
	DataReader (Component owner, DataElement &element, const DataValue defaultValue, bool deleteDefaultValue=true)

	DataReader (Component *owner, DataElement &element, const Unit &defaultUnit)

virtual	~DataReader ()

const Unit *	getDefaultUnit ()

bool	isUnavailable (void)
	Status and state functions. More...

bool	isInvalid (void)

bool	isOrphaned (void)

bool	isActive (void)

bool	read (const Unit &unit, unsigned char &readTo)
	Get functions. More...

bool	read (const Unit &unit, double &readTo)

bool	read (const Unit &unit, float &readTo)

bool	read (const Unit &unit, int &readTo)

bool	read (bool &readTo)

bool	read (Timespan &readTo)

bool	read (DataValue &readTo)

int	asInt (const Unit &unit)

double	asDouble (const Unit &unit) __attribute__((deprecated))

Str	asString (const Unit &unit)

const Timestamp &	getTimestamp (void) const
	Returns the Timestamp of the last write to this reader's DataElement. More...

bool	wasTouchedSinceLastRun (const Component *component)
	Returns true if the value was touched since the last run of the indicated component. More...

bool	isRequestingData (void)

RequestStrategy	getRequestStrategy (void)

void	setImplementor (bool implementor=true)

bool	isImplementor ()

Public Member Functions inherited from DataAccessor
virtual	~DataAccessor ()

virtual DataElement &	getElement (void) const

virtual Component *	getOwner (void) const

AccessorType	getAccessorType () const

DataAccess *	getDataAccess () const

Logger::TimePrecisionType	getTimePrecision () const

Public Member Functions inherited from AbstractBlobReader
virtual	~AbstractBlobReader ()
	Abstract parent class that adds the capability of reading BlobValues to a "normal" DataReader See below for implementation in BlobReader Also implemented in UniversalReader::UniversalBlobReader. More...

BlobValue	readBlob (bool &success)

template<typename T , size_t M>
int	read1DArray (const Unit &unit, T(&x)[M])

template<typename T >
int	read1DClass (const Unit &unit, I1D< T > &i1d)

template<typename T >
int	read1DPtr (const Unit &unit, T *values, int m)

template<typename T , size_t M, size_t N>
int	read2DArray (const Unit &unit, T(&x)[M][N])

template<typename T >
int	read2DClass (const Unit &unit, I2D< T > &i2d)

template<typename T >
int	read2DPtr (const Unit &unit, T **values, int m, int n)

template<typename T , size_t M, size_t N, size_t O>
int	read3DArray (const Unit &unit, T(&x)[M][N][O])

template<typename T >
int	read3DClass (const Unit &unit, I3D< T > &i3d)

template<typename T >
int	read3DPtr (const Unit &unit, T ***values, int m, int n, int o)

Protected Member Functions
	UniversalBlobReader (Component *owner, UniversalDataElement &universalElement, const Unit &defaultUnit)

Protected Member Functions inherited from DataAccessor
	DataAccessor (Component owner, DataElement &element, AccessorType accessorType, UniversalDataElement universal, Logger::TimePrecisionType timePrecision=Logger::TIME_PRECISION_MILLIS)
	Protected Constructor. More...

Protected Member Functions inherited from AbstractBlobReader
	AbstractBlobReader (const ElementURI &uri)

Friends
class	Component

Additional Inherited Members
Public Types inherited from DataAccessor
enum	AccessorType { DATA_READER = 0, DATA_WRITER = 1 }

enum	RequestStrategy { NO_STRATEGY = -1, MIN_POWER, MIN_ERROR, MIN_LATENCY, MAX_FREQUENCY, ALL_DEVICES, STRATEGY_COUNT }

Static Public Member Functions inherited from DataAccessor
static RequestStrategy	Str2RequestStrategy (const char *const strategyStr)

static const char *	RequestStrategy2Str (DataAccessor::RequestStrategy strategy)

Static Public Attributes inherited from DataAccessor
static const char *const	REQUEST_STRATEGY_STRS [STRATEGY_COUNT]

Protected Attributes inherited from DataReader
RequestStrategy	requestStrategy_

const DataValue *	defaultValue_

const Unit &	defaultUnit_

bool	deleteDefaultValue_

bool	implementor_

Protected Attributes inherited from DataAccessor
Component *	owner_

DataElement &	element_

AccessorType	accessorType_

Logger::TimePrecisionType	timePrecision_

DataAccess *	dataAccess_

Protected Attributes inherited from AbstractBlobReader
BlobValue	blobValue_
