#include <BlobReader.h>

Inheritance diagram for AbstractBlobReader:

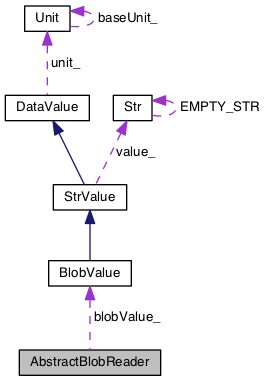

Collaboration diagram for AbstractBlobReader:

Public Member Functions
virtual	~AbstractBlobReader ()
	Abstract parent class that adds the capability of reading BlobValues to a "normal" DataReader See below for implementation in BlobReader Also implemented in UniversalReader::UniversalBlobReader. More...

virtual bool	read (DataValue &readTo)=0

virtual const ElementURI &	getUri (void) const =0

BlobValue	readBlob (bool &success)

template<typename T , size_t M>
int	read1DArray (const Unit &unit, T(&x)[M])

template<typename T >
int	read1DClass (const Unit &unit, I1D< T > &i1d)

template<typename T >
int	read1DPtr (const Unit &unit, T *values, int m)

template<typename T , size_t M, size_t N>
int	read2DArray (const Unit &unit, T(&x)[M][N])

template<typename T >
int	read2DClass (const Unit &unit, I2D< T > &i2d)

template<typename T >
int	read2DPtr (const Unit &unit, T **values, int m, int n)

template<typename T , size_t M, size_t N, size_t O>
int	read3DArray (const Unit &unit, T(&x)[M][N][O])

template<typename T >
int	read3DClass (const Unit &unit, I3D< T > &i3d)

template<typename T >
int	read3DPtr (const Unit &unit, T ***values, int m, int n, int o)

Protected Member Functions
	AbstractBlobReader (const ElementURI &uri)

Protected Attributes
BlobValue	blobValue_

Private Member Functions
	AbstractBlobReader ()

	AbstractBlobReader (const AbstractBlobReader &copyFrom)

Constructor & Destructor Documentation

AbstractBlobReader::AbstractBlobReader ( const ElementURI & uri )

inlineprotected

AbstractBlobReader::AbstractBlobReader ( )

private

AbstractBlobReader::AbstractBlobReader ( const AbstractBlobReader & copyFrom )

private

Member Function Documentation

virtual const ElementURI& AbstractBlobReader::getUri ( void ) const

pure virtual

Implemented in BlobReader, and UniversalBlobReader.

Referenced by read1DArray(), read1DPtr(), read2DArray(), read2DPtr(), read3DArray(), read3DPtr(), and readBlob().

virtual bool AbstractBlobReader::read ( DataValue & readTo )

pure virtual

Implemented in BlobReader, and UniversalBlobReader.

Referenced by read1DPtr(), read2DArray(), read2DPtr(), read3DArray(), read3DPtr(), and readBlob().

template<typename T , size_t M>

int AbstractBlobReader::read1DArray	(	const Unit &	unit,
		T(&)	x[M]
	)

inline

References Str::cStr(), ElementURI::getDimension1(), getUri(), and read1DPtr().

Referenced by HFRCMTimeInterpolator::run(), Blob_Test::testReadWrite(), Blob_Test::testReadWriteConversions(), and HFRCMReconstructedInterpolator::updateExpansionCoefficients().

template<typename T >

int AbstractBlobReader::read1DClass	(	const Unit &	unit,
		I1D< T > &	i1d
	)

inline

References I1D< T >::getM(), I1D< T >::getPtr1d(), and read1DPtr().

Referenced by Tracking::readFromDAT(), DeadReckonUsingDVLWaterTrack::readVehicleVelocity(), DeadReckonWithRespectToSeafloor::readVehicleVelocity(), DeadReckonUsingMultipleVelocitySources::readVehicleVelocity(), and Universal_Test::test1DUniversalBlobReadWrite().

template<typename T >

int AbstractBlobReader::read1DPtr	(	const Unit &	unit,
		T *	values,
		int	m
	)

inline

References blobValue_, BlobValue::copyTo(), Str::cStr(), BlobValue::getElements(), getUri(), MIN, and read().

Referenced by read1DArray(), and read1DClass().

template<typename T , size_t M, size_t N>

int AbstractBlobReader::read2DArray	(	const Unit &	unit,
		T(&)	x[M][N]
	)

inline

References blobValue_, BlobValue::copyTo(), Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), BlobValue::getElements(), getUri(), MIN, and read().

template<typename T >

int AbstractBlobReader::read2DClass	(	const Unit &	unit,
		I2D< T > &	i2d
	)

inline

References I2D< T >::getM(), I2D< T >::getN(), I2D< T >::getPtr2d(), and read2DPtr().

Referenced by Tracking::processFromDAT(), Navigator::readVehicleOrientation(), HFRCMTimeInterpolator::run(), and HFRCMReconstructedInterpolator::updateExpansionCoefficients().

template<typename T >

int AbstractBlobReader::read2DPtr	(	const Unit &	unit,
		T **	values,
		int	m,
		int	n
	)

inline

References blobValue_, BlobValue::copyTo(), Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), BlobValue::getElements(), getUri(), MIN, and read().

Referenced by read2DClass().

template<typename T , size_t M, size_t N, size_t O>

int AbstractBlobReader::read3DArray	(	const Unit &	unit,
		T(&)	x[M][N][O]
	)

inline

References blobValue_, BlobValue::copyTo(), Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), ElementURI::getDimension3(), BlobValue::getElements(), getUri(), MIN, and read().

template<typename T >

int AbstractBlobReader::read3DClass	(	const Unit &	unit,
		I3D< T > &	i3d
	)

inline

References I3D< T >::getM(), I3D< T >::getN(), I3D< T >::getO(), I3D< T >::getPtr3d(), and read3DPtr().

Referenced by Universal_Test::test3DUniversalBlobReadWrite().

template<typename T >

int AbstractBlobReader::read3DPtr	(	const Unit &	unit,
		T ***	values,
		int	m,
		int	n,
		int	o
	)

inline

References blobValue_, BlobValue::copyTo(), Str::cStr(), ElementURI::getDimension1(), ElementURI::getDimension2(), ElementURI::getDimension3(), BlobValue::getElements(), getUri(), MIN, and read().

Referenced by read3DClass().

BlobValue AbstractBlobReader::readBlob ( bool & success )

inline

References blobValue_, BlobValue::getBytes(), BlobValue::getElements(), getUri(), and read().

Referenced by Universal_Test::test1DUniversalBlobReadWrite(), Universal_Test::test3DUniversalBlobReadWrite(), Blob_Test::testReadWrite(), and Blob_Test::testReadWriteConversions().

Member Data Documentation

BlobValue AbstractBlobReader::blobValue_

protected

Referenced by read1DPtr(), read2DArray(), read2DPtr(), read3DArray(), read3DPtr(), and readBlob().

The documentation for this class was generated from the following file:

/Volumes/ubuntu_share/lrauv-application/Source/data/BlobReader.h
