UniversalDataReader Class Reference

A DataAccessor that reads values from the Slate Contains a default dataValue that must not be NULL, which is returned if a dataValue request is made and this Accessor's associated DataElement is unavailable for some reason (not initialized, orphaned, or failed). More...

#include <UniversalDataReader.h>

Inheritance diagram for UniversalDataReader:

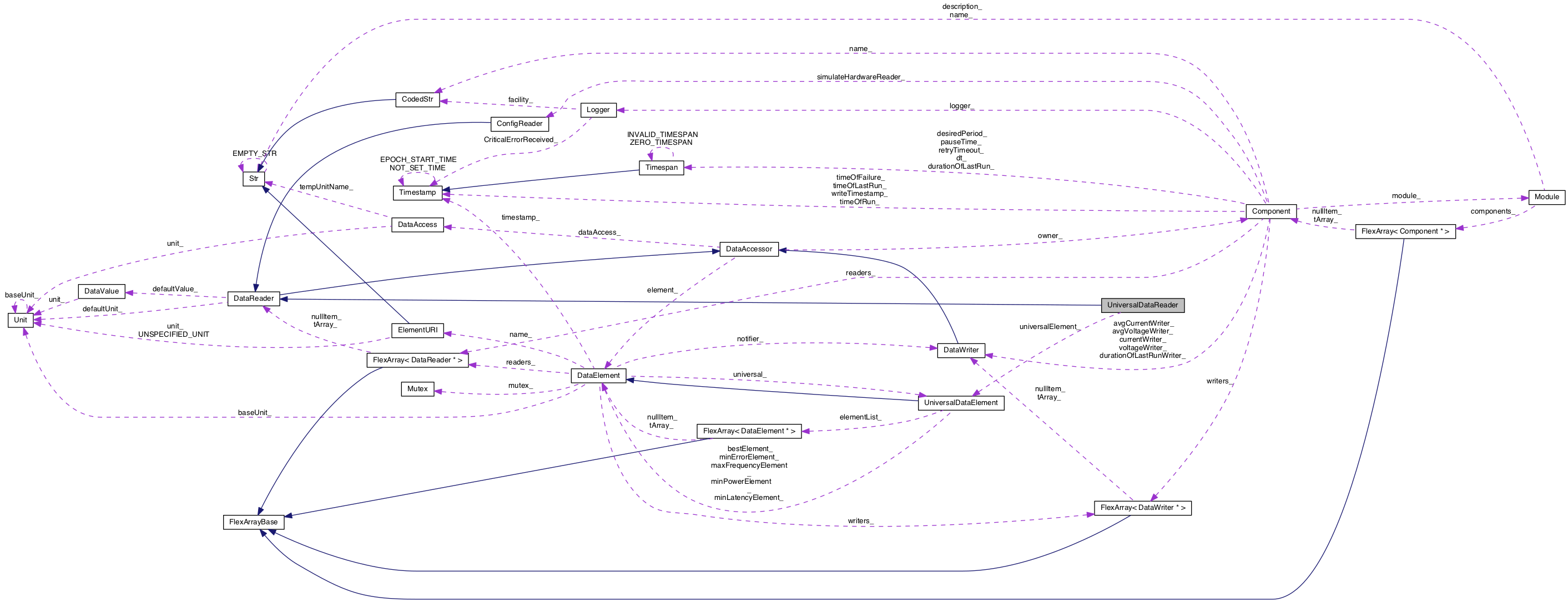

Collaboration diagram for UniversalDataReader:

Public Member Functions
	UniversalDataReader (Component *owner, UniversalDataElement &universalElement, const DataValue *defaultValue, bool deleteDefaultValue=true)
	UniversalDataReader (Component *owner, UniversalDataElement &universalElement, const Unit &defaultUnit)
virtual	~UniversalDataReader ()
float	getAccuracy (const Unit &unit)
	Returns the DataElement's current accuracy (i.e., for the next write) More...
float	getWrittenAccuracy (const Unit &unit)
	Returns the DataElement's accuracy at the time of the last write;. More...
virtual void	requestData (bool requestingData)
void	requestData (RequestStrategy requestStrategy)
UniversalDataElement &	getUniversalElement ()
Public Member Functions inherited from DataReader
	DataReader (Component *owner, DataElement &element, const DataValue *defaultValue, bool deleteDefaultValue=true)
	DataReader (Component *owner, DataElement &element, const Unit &defaultUnit)
virtual	~DataReader ()
const Unit *	getDefaultUnit ()
bool	isUnavailable (void)
	Status and state functions. More...
bool	isInvalid (void)
bool	isOrphaned (void)
bool	isActive (void)
bool	read (const Unit &unit, unsigned char &readTo)
	Get functions. More...
bool	read (const Unit &unit, double &readTo)
bool	read (const Unit &unit, float &readTo)
bool	read (const Unit &unit, int &readTo)
bool	read (bool &readTo)
bool	read (Timespan &readTo)
bool	read (DataValue &readTo)
int	asInt (const Unit &unit)
double	asDouble (const Unit &unit) __attribute__((deprecated))
Str	asString (const Unit &unit)
const Timestamp &	getTimestamp (void) const
	Returns the Timestamp of the last write to this reader's DataElement. More...
bool	wasTouchedSinceLastRun (const Component *component)
	Returns true if the value was touched since the last run of the indicated component. More...
bool	isRequestingData (void)
RequestStrategy	getRequestStrategy (void)
void	setImplementor (bool implementor=true)
bool	isImplementor ()
Public Member Functions inherited from DataAccessor
virtual	~DataAccessor ()
virtual DataElement &	getElement (void) const
virtual Component *	getOwner (void) const
virtual const ElementURI &	getUri (void) const
AccessorType	getAccessorType () const
DataAccess *	getDataAccess () const
Logger::TimePrecisionType	getTimePrecision () const

Private Member Functions
	UniversalDataReader (const UniversalDataReader &old)

Private Attributes
UniversalDataElement &	universalElement_

Additional Inherited Members
Public Types inherited from DataAccessor
enum	AccessorType { DATA_READER = 0, DATA_WRITER = 1 }
enum	RequestStrategy {   NO_STRATEGY = -1, MIN_POWER, MIN_ERROR, MIN_LATENCY,   MAX_FREQUENCY, ALL_DEVICES, STRATEGY_COUNT }
Static Public Member Functions inherited from DataAccessor
static RequestStrategy	Str2RequestStrategy (const char *const strategyStr)
static const char *	RequestStrategy2Str (DataAccessor::RequestStrategy strategy)
Static Public Attributes inherited from DataAccessor
static const char *const	REQUEST_STRATEGY_STRS [STRATEGY_COUNT]
Protected Member Functions inherited from DataAccessor
	DataAccessor (Component *owner, DataElement &element, AccessorType accessorType, UniversalDataElement *universal, Logger::TimePrecisionType timePrecision=Logger::TIME_PRECISION_MILLIS)
	Protected Constructor. More...
Protected Attributes inherited from DataReader
RequestStrategy	requestStrategy_
const DataValue *	defaultValue_
const Unit &	defaultUnit_
bool	deleteDefaultValue_
bool	implementor_
Protected Attributes inherited from DataAccessor
Component *	owner_
DataElement &	element_
AccessorType	accessorType_
Logger::TimePrecisionType	timePrecision_
DataAccess *	dataAccess_

Detailed Description

A DataAccessor that reads values from the Slate Contains a default dataValue that must not be NULL, which is returned if a dataValue request is made and this Accessor's associated DataElement is unavailable for some reason (not initialized, orphaned, or failed).

Constructor & Destructor Documentation

UniversalDataReader::UniversalDataReader	(	Component *	owner,
		UniversalDataElement &	universalElement,
		const DataValue *	defaultValue,
		bool	deleteDefaultValue = true
	)

UniversalDataReader::UniversalDataReader	(	Component *	owner,
		UniversalDataElement &	universalElement,
		const Unit &	defaultUnit
	)

UniversalDataReader::~UniversalDataReader ( )

virtual

UniversalDataReader::UniversalDataReader ( const UniversalDataReader &  old )

private

Member Function Documentation

float UniversalDataReader::getAccuracy

(

const Unit &

unit

)

Returns the DataElement's current accuracy (i.e., for the next write)

Returns

DataElement's current accuracy

References DataAccessor::element_, DataElement::getAccuracy(), DataElement::isActive(), and DataElement::NO_ACCURACY.

Referenced by DeadReckonWithRespectToWater::readVehicleVelocity(), DeadReckonWithRespectToSeafloor::readVehicleVelocity(), DeadReckonUsingCompactModelForecast::readVehicleVelocity(), DeadReckonUsingMultipleVelocitySources::readVehicleVelocity(), TempGradientCalculator::run(), YawRateCalculator::run(), PitchRateCalculator::run(), and DepthRateCalculator::run().

UniversalDataElement& UniversalDataReader::getUniversalElement ( )

inline

References universalElement_.

float UniversalDataReader::getWrittenAccuracy

(

const Unit &

unit

)

Returns the DataElement's accuracy at the time of the last write;.

Returns

DataElement's accuracy at the time of the last write.

References DataAccessor::element_, and DataElement::getWrittenAccuracy().

Referenced by Navigator::readExternalFix().

virtual void UniversalDataReader::requestData ( bool  requestingData )

inlinevirtual

Reimplemented from DataReader.

References DataAccessor::MIN_POWER, and DataAccessor::NO_STRATEGY.

Referenced by DeadReckonUsingSpeedCalculator::initialize(), DeadReckonWithRespectToWater::initialize(), DeadReckonUsingDVLWaterTrack::initialize(), DeadReckonWithRespectToSeafloor::initialize(), DeadReckonUsingCompactModelForecast::initialize(), Pitch::initialize(), GoToSurface::initialize(), Point::initialize(), AltitudeEnvelope::initialize(), HFRadarModelPoint::initialize(), DepthRateCalculator::initialize(), YawRateCalculator::initialize(), HFRCMReconstructedInterpolator::initialize(), YoYo::initialize(), OffshoreEnvelope::initialize(), WaterDepthEnvelope::initialize(), HFRCMSurfaceCurrentAtVehicleLocation::initialize(), DeadReckonUsingMultipleVelocitySources::initialize(), Lane::initialize(), Waypoint::isSatisfied(), Circle::isSatisfied(), KeepStation::isSatisfied(), Lane::readParams(), Tracking::requestVehiclePose(), DepthRateCalculator::uninitialize(), AltitudeEnvelope::uninitialize(), HFRadarModelPoint::uninitialize(), YoYo::uninitialize(), GoToSurface::uninitialize(), Point::uninitialize(), Pitch::uninitialize(), Lane::uninitialize(), WaterDepthEnvelope::uninitialize(), and OffshoreEnvelope::uninitialize().

void UniversalDataReader::requestData ( RequestStrategy  requestStrategy )

virtual

Reimplemented from DataReader.

References DataReader::requestStrategy_.

Member Data Documentation

UniversalDataElement& UniversalDataReader::universalElement_

private

Referenced by getUniversalElement().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/data/UniversalDataReader.h
• /Volumes/ubuntu_share/lrauv-application/Source/data/UniversalDataReader.cpp
