BinaryLogWriter Class Reference

Defines a LogWriter specific to writing binary values to a stream See FileLogWriter for output to the filesystem. More...

#include <BinaryLogWriter.h>

Inheritance diagram for BinaryLogWriter:

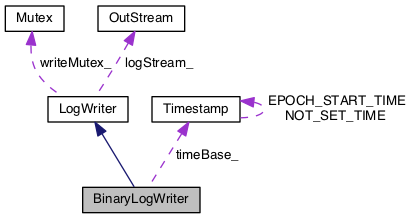

Collaboration diagram for BinaryLogWriter:

Public Member Functions
	BinaryLogWriter (bool withDirectory=false)
	Default Constructor Assumes that the stream will be assigned later via setOutStream() More...
	BinaryLogWriter (OutStream &stream, bool withDirectory=false)
	Constructor, takes an OutStream. More...
virtual	~BinaryLogWriter ()
	Destructor. More...
virtual unsigned int	writeHeader ()
	Start the binary log. More...
virtual unsigned int	write (const LogEntry *entry, const Unit *unit=NULL)
	Write an entry to the log. More...
virtual void	resetTimeBase ()
	Calling this resets the time base to "zero". More...
Public Member Functions inherited from LogWriter
virtual	~LogWriter ()
	Destructor. More...
virtual void	setOutStream (OutStream &outStream)
	Sets the OutStream. More...
virtual bool	isValid ()
	Return true if logStream_ is available. More...
virtual void	endCycle ()
	Do what needs to be done at the end of the cycle. More...
virtual unsigned int	writeFooter ()
	Write the log footer, if any. More...
virtual void	config (Logger &logger)
	Configure from a config file. More...
virtual void	resetInputs ()
	Reset cached input settings. More...
void	addParent ()
void	removeParent ()
int	getParentCount ()
virtual void	activate ()
virtual void	deactivate ()
virtual bool	isActive ()
virtual void	lockWrites ()
virtual void	unlockWrites ()

Protected Attributes
Timestamp	timeBase_
	Start of the cycle time. More...
bool	withDirectory_
Protected Attributes inherited from LogWriter
OutStream *	logStream_
	Stores an OutStream. More...
bool	wroteHeader_
bool	wroteFooter_
Mutex	writeMutex_
int	parentCount_
bool	active_

Additional Inherited Members
Public Types inherited from LogWriter
enum	ServiceType {   NO_SERVICE = -1, SERVICE_COURIER, SERVICE_EXPRESS, SERVICE_PRIORITY,   SERVICE_NORMAL, SERVICE_BULK, SERVICE_COUNT, SERVICE_MULTI }
Static Public Member Functions inherited from LogWriter
static ServiceType	Str2ServiceType (const char *const serviceTypeStr, int len=-1)
static const char *	ServiceType2Str (LogWriter::ServiceType serviceType)
static size_t	ServiceType2Strlen (LogWriter::ServiceType serviceType)
Static Public Attributes inherited from LogWriter
static const char *const	SERVICE_TYPE_STRS [SERVICE_COUNT]
static size_t const	SERVICE_TYPE_STRLEN [SERVICE_COUNT]
Protected Member Functions inherited from LogWriter
	LogWriter ()
	Protected constructor for pure virtual class. More...
	LogWriter (OutStream &outStream)
	Protected constructor for pure virtual class. More...

Detailed Description

Defines a LogWriter specific to writing binary values to a stream See FileLogWriter for output to the filesystem.

Constructor & Destructor Documentation

BinaryLogWriter::BinaryLogWriter

(

bool

withDirectory = false

)

Default Constructor Assumes that the stream will be assigned later via setOutStream()

Parameters

withDirectory

If true, include DirectoryEntry entries.

BinaryLogWriter::BinaryLogWriter	(	OutStream &	stream,
		bool	withDirectory = false
	)

Constructor, takes an OutStream.

Parameters

stream	An OutStream for output.
withDirectory	If true, include DirectoryEntry entries.

BinaryLogWriter::~BinaryLogWriter ( )

virtual

Destructor.

Member Function Documentation

virtual void BinaryLogWriter::resetTimeBase ( )

inlinevirtual

Calling this resets the time base to "zero".

References Timestamp::NOT_SET_TIME, and timeBase_.

Referenced by Supervisor::RestartLogs().

unsigned int BinaryLogWriter::write ( const LogEntry *  entry, const Unit *  unit = NULL  )

virtual

Write an entry to the log.

This does not actually change units, since binary logs are always in the base unit.

Parameters

entry	The LogEntry to write/serialize
unit	optional unit to express the value in

Returns

Returns number of bytes written

Implements LogWriter.

References LogWriter::logStream_, timeBase_, LogEntry::write(), and LogWriter::writeMutex_.

unsigned int BinaryLogWriter::writeHeader ( )

virtual

Start the binary log.

Reimplemented from LogWriter.

Reimplemented in DirectoryLogWriter.

References OutStream::isWritable(), LogWriter::logStream_, timeBase_, withDirectory_, and DirectoryEntry::write().

Referenced by DirectoryLogWriter::writeHeader().

Member Data Documentation

Timestamp BinaryLogWriter::timeBase_

protected

Start of the cycle time.

Referenced by resetTimeBase(), write(), and writeHeader().

bool BinaryLogWriter::withDirectory_

protected

Referenced by writeHeader().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/logger/BinaryLogWriter.h
• /Volumes/ubuntu_share/lrauv-application/Source/logger/BinaryLogWriter.cpp
