DirectoryEntry Class Reference

Code unit that represents an event to be stored in the log file. More...

#include <DirectoryEntry.h>

Inheritance diagram for DirectoryEntry:

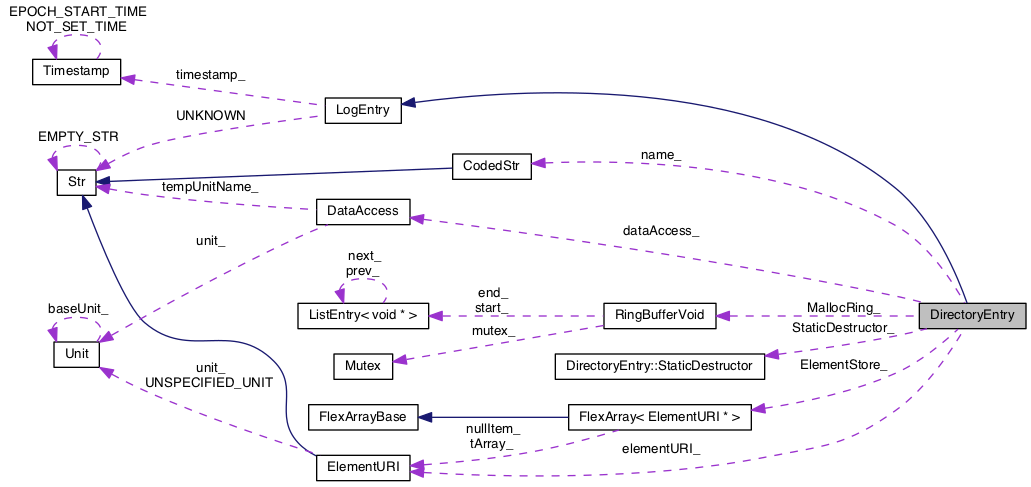

Collaboration diagram for DirectoryEntry:

Classes
class	StaticDestructor
	Makes sure that mallocRing_s is deleted on shutdown. More...

Public Types
enum	DirectoryType { ACCESSOR = 'a', ELEMENT = 'e', NAME = 'n', VERSION = 'v' }
	Type of directory entry. More...
Public Types inherited from LogEntry
enum	Type {   NOT_LOG_ENTRY = -1, EVENT_LOG_ENTRY = 0, DIRECTORY_LOG_ENTRY = 1, DATA_LOG_ENTRY = 2,   SYSLOG_LOG_ENTRY = 3 }
	Defines an enum for "typing" the various LogEntries. More...

Public Member Functions
	DirectoryEntry (const short version=0)
	Version Construnctor. More...
	DirectoryEntry (DataAccess *dataAccess)
	Accessor Constructor. More...
	DirectoryEntry (const CodedStr *name)
	Name Constructor. More...
	DirectoryEntry (ElementURI *elementURI)
	ElementURI Constructor. More...
virtual	~DirectoryEntry ()
	Destructor. More...
void *	operator new (size_t size)
	Override new. More...
void	operator delete (void *p)
	Override delete. More...
virtual unsigned int	write (Timestamp &timeBase, OutStream &logStream) const
	Send payload to a stream. More...
virtual Str	toString (const Unit *unit=NULL) const
	Convert payload to Str. More...
DirectoryType	getDirectoryType (void) const
Public Member Functions inherited from LogEntry
virtual	~LogEntry ()
	Destructor. More...
const Timestamp &	getTimestamp (void) const
	Accessors. More...
const Timestamp &	setTimestamp (const Timestamp &newTime)
const Timestamp &	setTimestamp (const double newTime)
Type	getType (void) const

Static Public Member Functions
static unsigned short	GetCurrentLogVersion ()
static unsigned short	GetMinimumLogVersion ()
static DirectoryEntry *	Read (Timestamp &timeBase, InStream &inStream, unsigned short firstWord, Logger &logger)
	Read new DirectoryEntry from a stream. More...
static const char *	DirectoryTypeToString (DirectoryType directoryType)
	Convert actions to Strs. More...
Static Public Member Functions inherited from LogEntry
static LogEntry *	Read (Timestamp &timeBase, Timespan &timeAdjust, InStream &inStream, Logger &logger)
	Read in a new entry from a stream. More...
static const char *	TypeToString (Type theType)
	Convert types to Strs. More...

Static Public Attributes
static const int	DIRECTORY_TYPE_MASK = 7 << 2
Static Public Attributes inherited from LogEntry
static const int	TYPE_MASK = 0x0003

Protected Attributes
DirectoryType	directoryType_
union {
unsigned short   version_
DataAccess *   dataAccess_
ElementURI *   elementURI_
const CodedStr *   name_
};
bool	wasRead_
	Indicates whether the value was read in, and therefore can be deleted. More...
Protected Attributes inherited from LogEntry
Type	type_
	Stores the type of a given LogEntry. More...
Timestamp	timestamp_

Static Protected Attributes
static unsigned short	MinimumLogVersion_
static unsigned short	CurrentLogVersion_
static RingBufferVoid *	MallocRing_
	Declared as a pointer to avoid including RingBuffer.h header here. More...
static DirectoryEntry::StaticDestructor	StaticDestructor_
	Static instance of StaticDestructor. More...
static FlexArray< ElementURI * >	ElementStore_
	Static storage of ElementURIs to delete at cleanup. More...
Static Protected Attributes inherited from LogEntry
static const Str	UNKNOWN

Additional Inherited Members
Protected Member Functions inherited from LogEntry
	LogEntry (Type myType, const Timestamp &timestamp=Timestamp::NOT_SET_TIME)
	Constructor. More...
unsigned int	writeTimestamp (const Timestamp &timeBase, bool changed, OutStream &logStream, Logger::TimePrecisionType timePrecision) const
Static Protected Member Functions inherited from LogEntry
static bool	ReadTimestamp (Timestamp &timestamp, bool &changed, InStream &inStream, Logger &logger, Logger::TimePrecisionType timePrecision)

Detailed Description

Code unit that represents an event to be stored in the log file.

The kinds of events include:

• Starting a computation cycle
• Setting the accuracy of a variable
• Setting the state of a variable
• Setting the "Best" value of a UniversalDataElement

An DirectoryEntry is serialized as:

• a 16-bit header (serialized using OutStream::writeUShortCompact) including:
  • 8 high bits: character "<"
  • 3 bits: Zero.
  • 3 bits: DirectoryEntry::DirectoryType code, indicating the type of action being logged; e.g., the start of a cycle, the setting of accuracy, the setting of the state of a variable, or the setting of a variable to the "best" for its associated Universal variable
  • 2 bits: the code 01, indicating this is a DirectoryEntry
• contents, depending on the type of Directory Entry, ending in a ">"

Constructor & Destructor Documentation

DirectoryEntry::DirectoryEntry

(

const short

version = 0

)

Version Construnctor.

Ver Construnctor.

Referenced by Read().

DirectoryEntry::DirectoryEntry

(

DataAccess *

dataAccess

)

Accessor Constructor.

DirectoryEntry::DirectoryEntry

(

const CodedStr *

name

)

Name Constructor.

Entity Name Constructor.

DirectoryEntry::DirectoryEntry

(

ElementURI *

elementURI

)

ElementURI Constructor.

DirectoryEntry::~DirectoryEntry ( )

virtual

Destructor.

Member Function Documentation

const char * DirectoryEntry::DirectoryTypeToString ( DirectoryType  directoryType )

static

Convert actions to Strs.

Convert an Action to a char*.

References ACCESSOR, ELEMENT, NAME, and VERSION.

Referenced by toString().

static unsigned short DirectoryEntry::GetCurrentLogVersion ( )

inlinestatic

References CurrentLogVersion_.

Referenced by LogEntry::ReadTimestamp(), and Unserialize::Run().

DirectoryType DirectoryEntry::getDirectoryType ( void  ) const

inline

References directoryType_.

static unsigned short DirectoryEntry::GetMinimumLogVersion ( )

inlinestatic

References MinimumLogVersion_.

Referenced by Unserialize::Run().

void DirectoryEntry::operator delete

(

void *

p

)

Override delete.

void * DirectoryEntry::operator new

(

size_t

size

)

Override new.

DirectoryEntry * DirectoryEntry::Read ( Timestamp &  timeBase, InStream &  inStream, unsigned short  firstWord, Logger &  logger  )

static

Read new DirectoryEntry from a stream.

Implements requirement: Time values must be stored to at least millisecond resolution, with the option for less resolution.

References ACCESSOR, InStream::bytesRead(), Syslog::CRITICAL, CurrentLogVersion_, LogEntry::DIRECTORY_LOG_ENTRY, DirectoryEntry(), ELEMENT, ElementStore_, Syslog::ERROR, InStream::getName(), InStream::getTotalBytesRead(), MinimumLogVersion_, NAME, FlexArray< T >::push(), CodedStr::Read(), ElementURI::Read(), DataAccess::Read(), InStream::readChar(), InStream::readShortHex(), Slate::RegisterCodedName(), Slate::RegisterDataAccess(), Slate::RegisterElementURI(), Logger::syslog(), and VERSION.

Referenced by LogEntry::Read().

Str DirectoryEntry::toString ( const Unit *  unit = NULL ) const

virtual

Convert payload to Str.

Implements LogEntry.

References ACCESSOR, DataAccess::asString(), dataAccess_, directoryType_, DirectoryTypeToString(), ELEMENT, elementURI_, CodedStr::getCode(), ElementURI::getCode(), NAME, name_, VERSION, and version_.

unsigned int DirectoryEntry::write ( Timestamp &  timeBase, OutStream &  logStream  ) const

virtual

Send payload to a stream.

Implements requirement: Time values must be stored to at least millisecond resolution, with the option for less resolution.

Implements LogEntry.

References ACCESSOR, OutStream::bytesWritten(), dataAccess_, LogEntry::DIRECTORY_LOG_ENTRY, directoryType_, ELEMENT, elementURI_, NAME, name_, VERSION, version_, CodedStr::write(), ElementURI::write(), DataAccess::write(), OutStream::writeChar(), OutStream::writeShortHex(), and OutStream::writeUShortCompact().

Referenced by BinaryLogWriter::writeHeader(), and TextLogWriter::writeHeader().

Member Data Documentation

union { ... }

unsigned short DirectoryEntry::CurrentLogVersion_

staticprotected

Referenced by GetCurrentLogVersion(), and Read().

DataAccess* DirectoryEntry::dataAccess_

Referenced by toString(), and write().

const int DirectoryEntry::DIRECTORY_TYPE_MASK = 7 << 2

static

DirectoryType DirectoryEntry::directoryType_

protected

Referenced by getDirectoryType(), toString(), and write().

FlexArray< ElementURI * > DirectoryEntry::ElementStore_

staticprotected

Static storage of ElementURIs to delete at cleanup.

Referenced by Read(), and DirectoryEntry::StaticDestructor::~StaticDestructor().

ElementURI* DirectoryEntry::elementURI_

Referenced by toString(), and write().

RingBufferVoid * DirectoryEntry::MallocRing_

staticprotected

Declared as a pointer to avoid including RingBuffer.h header here.

Referenced by DirectoryEntry::StaticDestructor::~StaticDestructor().

unsigned short DirectoryEntry::MinimumLogVersion_

staticprotected

Referenced by GetMinimumLogVersion(), and Read().

const CodedStr* DirectoryEntry::name_

Referenced by toString(), and write().

DirectoryEntry::StaticDestructor DirectoryEntry::StaticDestructor_

staticprotected

Static instance of StaticDestructor.

unsigned short DirectoryEntry::version_

Referenced by toString(), and write().

bool DirectoryEntry::wasRead_

protected

Indicates whether the value was read in, and therefore can be deleted.

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/logger/DirectoryEntry.h
• /Volumes/ubuntu_share/lrauv-application/Source/logger/DirectoryEntry.cpp
