HDF5Dataset Class Reference

#include <HDF5.h>

Inheritance diagram for HDF5Dataset:

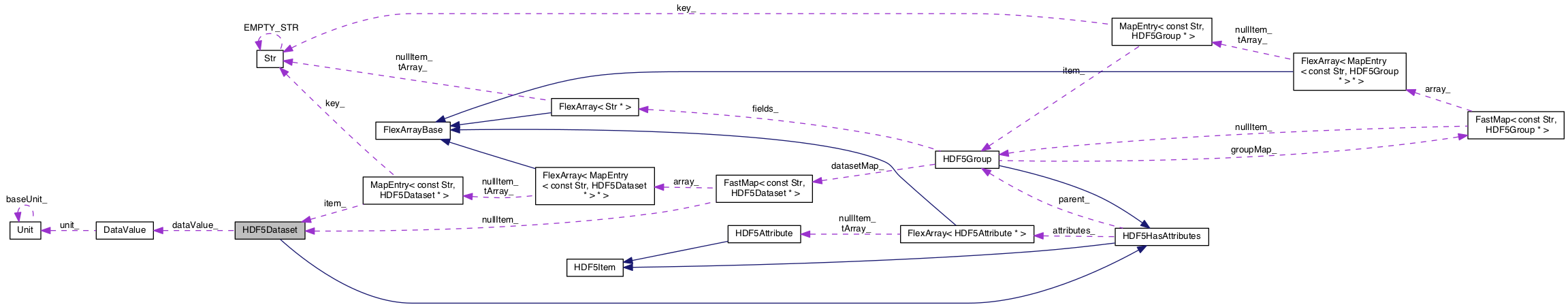

Collaboration diagram for HDF5Dataset:

Public Member Functions
	HDF5Dataset (HDF5Group *parent, const char *name, BinaryDataType binaryType, const Unit &unit, bool useChunks, BlobType blobType=NOT_BLOB, int rank=1, unsigned short m=0, unsigned short n=0, unsigned short o=0)
	HDF5Dataset (HDF5Group *parent, const char *name, const char *value, size_t length, const Unit &unit)
virtual	~HDF5Dataset ()
DataValue *	getDataValue ()
bool	writeDataValue ()
bool	finalize ()
Public Member Functions inherited from HDF5HasAttributes
	HDF5HasAttributes (HDF5Group *parent)
virtual	~HDF5HasAttributes ()
int	getId ()
virtual HDF5Group *	getParent ()
virtual bool	isMatlab ()
virtual HDF5Group *	getRoot ()
void	addAttribute (const char *name, const char *value)
void	addAttribute (const char *name, const int value)
virtual bool	writeHeader ()
Public Member Functions inherited from HDF5Item
virtual	~HDF5Item ()
int	getId ()

Static Public Member Functions
static int	TypeIdFromBlobType (BlobType blobType)
static const char *	MatlabClassFromBlobType (BlobType blobType)

Protected Attributes
DataValue *	dataValue_
BlobType	blobType_
int	rank_
unsigned short	m_
unsigned short	n_
unsigned short	o_
int	propsId_
size_t	numRecs_
Protected Attributes inherited from HDF5HasAttributes
HDF5Group *	parent_
FlexArray< HDF5Attribute * >	attributes_
Protected Attributes inherited from HDF5Item
int	id_
int	typeId_
int	spaceId_

Static Protected Attributes
static const int	MAX_RANK = 4

Private Member Functions
	HDF5Dataset (const HDF5Dataset &old)

Additional Inherited Members
Protected Member Functions inherited from HDF5Item
	HDF5Item ()

Constructor & Destructor Documentation

HDF5Dataset::HDF5Dataset	(	HDF5Group *	parent,
		const char *	name,
		BinaryDataType	binaryType,
		const Unit &	unit,
		bool	useChunks,
		BlobType	blobType = NOT_BLOB,
		int	rank = 1,
		unsigned short	m = 0,
		unsigned short	n = 0,
		unsigned short	o = 0
	)

References HDF5HasAttributes::addAttribute(), blobType_, DEBUG_HDF5, DOUBLE4, DOUBLE6, DOUBLE8, FLOAT2, FLOAT3, FLOAT4, HDF5HasAttributes::getId(), HDF5Item::id_, INT4, HDF5HasAttributes::isMatlab(), m_, MatlabClassFromBlobType(), AuvMath::Max(), MAX_RANK, MULTIVALUE, n_, NO_TYPE, NOT_BLOB, o_, propsId_, rank_, SHORT2, HDF5Item::spaceId_, HDF5Item::typeId_, TypeIdFromBlobType(), UCHAR1, and USHORT2.

HDF5Dataset::HDF5Dataset	(	HDF5Group *	parent,
		const char *	name,
		const char *	value,
		size_t	length,
		const Unit &	unit
	)

References HDF5HasAttributes::addAttribute(), Units::BYTE, DEBUG_HDF5, HDF5HasAttributes::getId(), HDF5Item::id_, HDF5HasAttributes::isMatlab(), HDF5Item::spaceId_, and HDF5Item::typeId_.

HDF5Dataset::~HDF5Dataset ( )

virtual

References dataValue_.

HDF5Dataset::HDF5Dataset ( const HDF5Dataset &  old )

private

Member Function Documentation

bool HDF5Dataset::finalize ( )

virtual

Reimplemented from HDF5HasAttributes.

References HDF5HasAttributes::finalize(), HDF5Item::id_, and propsId_.

Referenced by HDF5Group::finalize().

DataValue * HDF5Dataset::getDataValue

(

void

)

References dataValue_.

Referenced by HDF5LogWriter::writeData().

const char * HDF5Dataset::MatlabClassFromBlobType ( BlobType  blobType )

static

References BLOB_FLOAT32BE, BLOB_FLOAT32LE, BLOB_FLOAT64BE, BLOB_FLOAT64LE, BLOB_INT16BE, BLOB_INT16LE, BLOB_INT32BE, BLOB_INT32LE, BLOB_INT64BE, BLOB_INT64LE, BLOB_INT8, BLOB_UINT16BE, BLOB_UINT16LE, BLOB_UINT32BE, BLOB_UINT32LE, BLOB_UINT64BE, BLOB_UINT64LE, BLOB_UINT8, and NOT_BLOB.

Referenced by HDF5Dataset().

int HDF5Dataset::TypeIdFromBlobType ( BlobType  blobType )

static

References BLOB_FLOAT32BE, BLOB_FLOAT32LE, BLOB_FLOAT64BE, BLOB_FLOAT64LE, BLOB_INT16BE, BLOB_INT16LE, BLOB_INT32BE, BLOB_INT32LE, BLOB_INT64BE, BLOB_INT64LE, BLOB_INT8, BLOB_UINT16BE, BLOB_UINT16LE, BLOB_UINT32BE, BLOB_UINT32LE, BLOB_UINT64BE, BLOB_UINT64LE, BLOB_UINT8, and NOT_BLOB.

Referenced by HDF5Dataset().

bool HDF5Dataset::writeDataValue

(

)

References HDF5Group::addGroup(), HDF5Group::addScalarDataset(), BLOB_FLOAT32BE, BLOB_FLOAT32LE, BLOB_FLOAT64BE, BLOB_FLOAT64LE, blobType_, DataValue::copyTo(), Str::cStr(), dataValue_, DOUBLE4, DOUBLE6, DOUBLE8, HDF5Group::findGroup(), FLOAT2, FLOAT3, FLOAT4, DataValue::getBinaryType(), HDF5Group::getDatasetCount(), HDF5HasAttributes::getId(), HDF5HasAttributes::getRoot(), DataValue::getUnit(), HDF5Item::id_, INT4, Str::length(), m_, AuvMath::Max(), MAX_RANK, memfill(), AuvMath::Min(), MULTIVALUE, n_, NO_TYPE, NOT_BLOB, numRecs_, o_, rank_, SHORT2, Str::size(), HDF5Item::spaceId_, HDF5Item::typeId_, UCHAR1, USHORT2, HDF5HasAttributes::writeHeader(), and HDF5Group::writeHeader().

Referenced by HDF5LogWriter::writeData().

Member Data Documentation

BlobType HDF5Dataset::blobType_

protected

Referenced by HDF5Dataset(), and writeDataValue().

DataValue* HDF5Dataset::dataValue_

protected

Referenced by getDataValue(), writeDataValue(), and ~HDF5Dataset().

unsigned short HDF5Dataset::m_

protected

Referenced by HDF5Dataset(), and writeDataValue().

const int HDF5Dataset::MAX_RANK = 4

staticprotected

Referenced by HDF5Dataset(), and writeDataValue().

unsigned short HDF5Dataset::n_

protected

Referenced by HDF5Dataset(), and writeDataValue().

size_t HDF5Dataset::numRecs_

protected

Referenced by writeDataValue().

unsigned short HDF5Dataset::o_

protected

Referenced by HDF5Dataset(), and writeDataValue().

int HDF5Dataset::propsId_

protected

Referenced by finalize(), and HDF5Dataset().

int HDF5Dataset::rank_

protected

Referenced by HDF5Dataset(), and writeDataValue().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/utils/HDF5.h
• /Volumes/ubuntu_share/lrauv-application/Source/utils/HDF5.cpp
