HDF5LogWriter Class Reference

Defines a LogWriter that generates a NetCDF table of values. More...

#include <HDF5LogWriter.h>

Inheritance diagram for HDF5LogWriter:

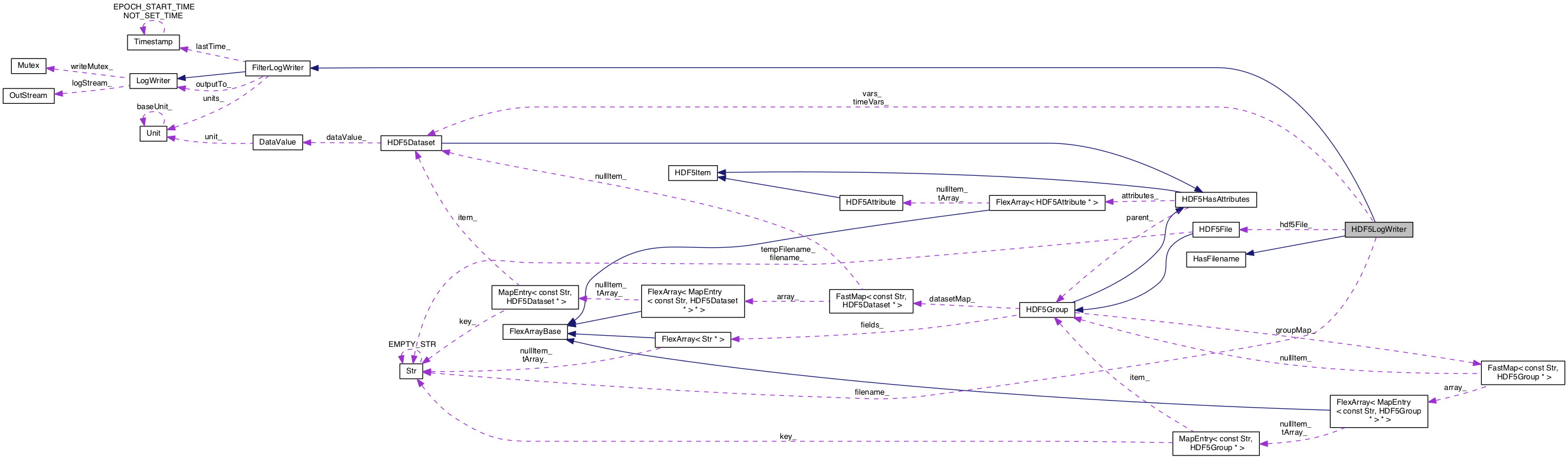

Collaboration diagram for HDF5LogWriter:

Public Member Functions
	HDF5LogWriter (const Str &filename, bool version4, int varCount, char **varList, char **unitList, int attCount=0, char **attList=NULL)
	Constructor. More...
virtual	~HDF5LogWriter ()
	Destructor. More...
unsigned int	writeHeader ()
	Start writing the NetCDF file. More...
unsigned int	write (const LogEntry *entry, const Unit *unit=NULL)
	Write an entry to the buffer. More...
unsigned int	writeFooter ()
	Finish writing the NetCDF file. More...
const Str &	getFilename ()
	Return the filename. More...
Public Member Functions inherited from FilterLogWriter
	FilterLogWriter (LogWriter *outputTo, int varCount, char **varList, char **unitList, bool passCycleStarts, int attCount=0, char **attList=NULL)
	Constructor. More...
virtual	~FilterLogWriter ()
	Destructor. More...
virtual void	endCycle ()
	Do what needs to be done at the end of the cycle. More...
virtual void	config (Logger &logger)
	Configure from a config file. More...
Public Member Functions inherited from LogWriter
virtual	~LogWriter ()
	Destructor. More...
virtual void	setOutStream (OutStream &outStream)
	Sets the OutStream. More...
virtual bool	isValid ()
	Return true if logStream_ is available. More...
void	addParent ()
void	removeParent ()
int	getParentCount ()
virtual void	activate ()
virtual void	deactivate ()
virtual bool	isActive ()
virtual void	lockWrites ()
virtual void	unlockWrites ()
Public Member Functions inherited from HasFilename
virtual	~HasFilename ()

Protected Member Functions
virtual unsigned int	writeData (const DataEntry *dataEntry, int index, const Unit *unit)
virtual unsigned int	writeAtt (const DataEntry *dataEntry, int index, const Unit *unit)
Protected Member Functions inherited from FilterLogWriter
virtual void	resetInputs ()
	Reset cached input settings. More...
void	initializeFilterLogWriter ()
virtual unsigned int	writeCycleStart (const EventEntry *eventEntry)
Protected Member Functions inherited from LogWriter
	LogWriter ()
	Protected constructor for pure virtual class. More...
	LogWriter (OutStream &outStream)
	Protected constructor for pure virtual class. More...
Protected Member Functions inherited from HasFilename
	HasFilename ()

Private Member Functions
	HDF5LogWriter (const HDF5LogWriter &old)
void	initializeHDF5LogWriter ()
	Initialize variables, etc. More...
void	addVar (const int index, const ElementURI *uri, BinaryDataType binaryType, const Unit &unit, short universalCode, bool useChunks)
	Add a new variable. More...
void	setAttValue (const DataEntry *dataEntry, const int attIndex)
	Set an attribute value. More...

Private Attributes
const Str	filename_
HDF5File *	hdf5File_
bool	hdf5LogWriterInitialized_
bool	finalized_
HDF5Dataset **	vars_
HDF5Dataset **	timeVars_

Additional Inherited Members
Public Types inherited from LogWriter
enum	ServiceType {   NO_SERVICE = -1, SERVICE_COURIER, SERVICE_EXPRESS, SERVICE_PRIORITY,   SERVICE_NORMAL, SERVICE_BULK, SERVICE_COUNT, SERVICE_MULTI }
Static Public Member Functions inherited from LogWriter
static ServiceType	Str2ServiceType (const char *const serviceTypeStr, int len=-1)
static const char *	ServiceType2Str (LogWriter::ServiceType serviceType)
static size_t	ServiceType2Strlen (LogWriter::ServiceType serviceType)
Static Public Attributes inherited from LogWriter
static const char *const	SERVICE_TYPE_STRS [SERVICE_COUNT]
static size_t const	SERVICE_TYPE_STRLEN [SERVICE_COUNT]
Protected Attributes inherited from FilterLogWriter
LogWriter *	outputTo_
int	varCount_
char **	varList_
char **	unitList_
const Unit **	units_
bool	passCycleStarts_
int	attCount_
char **	attList_
unsigned short *	uriCodes_
int *	codeLookup_
unsigned short *	attUriCodes_
int *	attCodeLookup_
bool *	isUniversal_
Timestamp	lastTime_
bool	initializedFilterLogWriter_
unsigned int	slateElementURICount_
Protected Attributes inherited from LogWriter
OutStream *	logStream_
	Stores an OutStream. More...
bool	wroteHeader_
bool	wroteFooter_
Mutex	writeMutex_
int	parentCount_
bool	active_

Detailed Description

Defines a LogWriter that generates a NetCDF table of values.

A list of variable names is supplied to the constructor. If any of these variables change their value in a computation cycle, then a record is added to the NetCDF file with the current value of every variable. The Timestamp for each record corresponds to the time of the start of the computation cycle in which any value changed.

Constructor & Destructor Documentation

HDF5LogWriter::HDF5LogWriter	(	const Str &	filename,
		bool	version4,
		int	varCount,
		char **	varList,
		char **	unitList,
		int	attCount = 0,
		char **	attList = NULL
	)

Constructor.

Streamless Constructor.

References FilterLogWriter::attCount_, timeVars_, FilterLogWriter::varCount_, and vars_.

HDF5LogWriter::~HDF5LogWriter ( )

virtual

Destructor.

References finalized_, hdf5File_, timeVars_, vars_, and writeFooter().

HDF5LogWriter::HDF5LogWriter ( const HDF5LogWriter &  old )

private

Member Function Documentation

void HDF5LogWriter::addVar ( const int  index, const ElementURI *  uri, BinaryDataType  binaryType, const Unit &  unit, short  universalCode, bool  useChunks  )

private

Add a new variable.

References HDF5HasAttributes::addAttribute(), HDF5Group::addDataset(), HDF5Group::addGroup(), HDF5Group::addScalarDataset(), Str::cStr(), UniversalURI::DEPTH, DOUBLE8, Str::EMPTY_STR, Units::EPOCH_SECOND, Str::find(), HDF5Group::findDataset(), Unit::getAbbreviation(), ElementURI::getBlobType(), ElementURI::getDimension1(), ElementURI::getDimension2(), ElementURI::getDimension3(), ElementURI::getDimensions(), Slate::GetElementURI(), hdf5File_, HDF5File::isMatlab(), FilterLogWriter::isUniversal_, UniversalURI::LATITUDE, UniversalURI::LONGITUDE, Units::MATLAB_TIME, ElementURI::NO_CODE, Str::NO_POS, Units::NONE, Str::replaceChar(), Str::substr(), timeVars_, and vars_.

Referenced by initializeHDF5LogWriter().

const Str& HDF5LogWriter::getFilename ( )

inlinevirtual

Return the filename.

Implements HasFilename.

References filename_.

void HDF5LogWriter::initializeHDF5LogWriter ( )

private

Initialize variables, etc.

References HDF5HasAttributes::addAttribute(), addVar(), FilterLogWriter::attCount_, FilterLogWriter::attUriCodes_, Str::findLastOf(), DataAccess::getBinaryType(), Slate::GetDataAccess(), Slate::GetDataAccessCount(), DataAccess::getElementCode(), Slate::GetElementURI(), Slate::GetElementURICode(), DataAccess::getUnit(), DataAccess::getUniversalCode(), hdf5File_, hdf5LogWriterInitialized_, Slate::IsDirectoryRead(), FilterLogWriter::isUniversal_, Str::NO_POS, NO_TYPE, FilterLogWriter::units_, FilterLogWriter::uriCodes_, FilterLogWriter::varCount_, FilterLogWriter::varList_, and vars_.

Referenced by writeHeader().

void HDF5LogWriter::setAttValue ( const DataEntry *  dataEntry, const int  attIndex  )

private

Set an attribute value.

unsigned int HDF5LogWriter::write ( const LogEntry *  entry, const Unit *  unit = NULL  )

virtual

Write an entry to the buffer.

If a start of cycle is encountered, write the whole record to the NetCDF file.

Reimplemented from FilterLogWriter.

References Slate::GetElementURICount(), hdf5LogWriterInitialized_, FilterLogWriter::initializedFilterLogWriter_, FilterLogWriter::initializeFilterLogWriter(), FilterLogWriter::slateElementURICount_, FilterLogWriter::write(), and writeHeader().

unsigned int HDF5LogWriter::writeAtt ( const DataEntry *  dataEntry, int  index, const Unit *  unit  )

protectedvirtual

Reimplemented from FilterLogWriter.

References FilterLogWriter::varCount_, and writeData().

unsigned int HDF5LogWriter::writeData ( const DataEntry *  dataEntry, int  index, const Unit *  unit  )

protectedvirtual

Reimplemented from FilterLogWriter.

References Timestamp::asDouble(), DataValue::copyTo(), DataEntry::getDataValue(), HDF5Dataset::getDataValue(), LogEntry::getTimestamp(), DataValue::getUnit(), Units::SECOND, DataValue::setFrom(), timeVars_, vars_, and HDF5Dataset::writeDataValue().

Referenced by writeAtt().

unsigned int HDF5LogWriter::writeFooter ( )

virtual

Finish writing the NetCDF file.

Reimplemented from FilterLogWriter.

References HDF5File::finalize(), finalized_, hdf5File_, hdf5LogWriterInitialized_, FilterLogWriter::initializedFilterLogWriter_, ElementURI::NO_CODE, FilterLogWriter::uriCodes_, FilterLogWriter::varCount_, FilterLogWriter::varList_, vars_, and LogWriter::wroteFooter_.

Referenced by ~HDF5LogWriter().

unsigned int HDF5LogWriter::writeHeader ( )

virtual

Start writing the NetCDF file.

Reimplemented from FilterLogWriter.

References hdf5File_, hdf5LogWriterInitialized_, initializeHDF5LogWriter(), and HDF5Group::writeHeader().

Referenced by write().

Member Data Documentation

const Str HDF5LogWriter::filename_

private

Referenced by getFilename().

bool HDF5LogWriter::finalized_

private

Referenced by writeFooter(), and ~HDF5LogWriter().

HDF5File* HDF5LogWriter::hdf5File_

private

Referenced by addVar(), initializeHDF5LogWriter(), writeFooter(), writeHeader(), and ~HDF5LogWriter().

bool HDF5LogWriter::hdf5LogWriterInitialized_

private

Referenced by initializeHDF5LogWriter(), write(), writeFooter(), and writeHeader().

HDF5Dataset** HDF5LogWriter::timeVars_

private

Referenced by addVar(), HDF5LogWriter(), writeData(), and ~HDF5LogWriter().

HDF5Dataset** HDF5LogWriter::vars_

private

Referenced by addVar(), HDF5LogWriter(), initializeHDF5LogWriter(), writeData(), writeFooter(), and ~HDF5LogWriter().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/logger/HDF5LogWriter.h
• /Volumes/ubuntu_share/lrauv-application/Source/logger/HDF5LogWriter.cpp
