NetCdfTableLogWriter Class Reference

Defines a LogWriter that generates a NetCDF table of values. More...

#include <NetCdfTableLogWriter.h>

Inheritance diagram for NetCdfTableLogWriter:

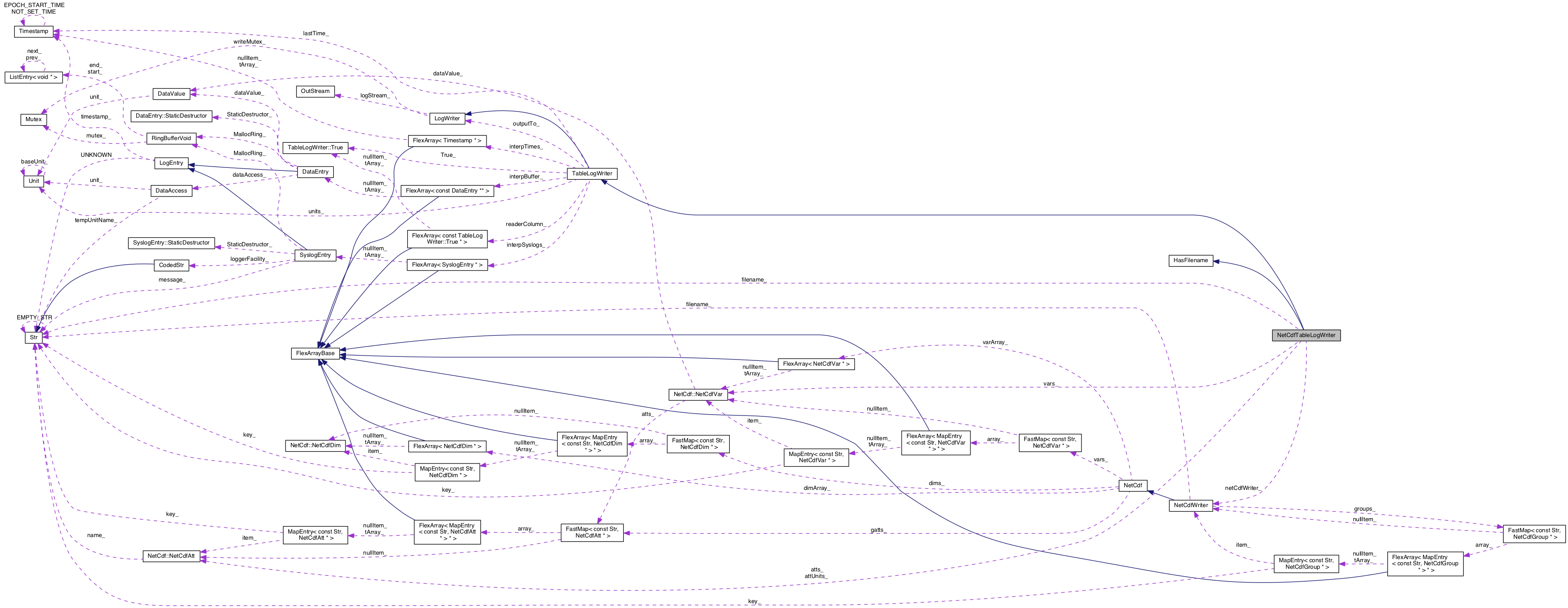

Collaboration diagram for NetCdfTableLogWriter:

Public Member Functions
	NetCdfTableLogWriter (const Str &filename, bool version4, int varCount, char **varListt, char **unitList, bool interpolate=false, int attCount=0, char **attList=NULL)
	Constructor. More...
virtual	~NetCdfTableLogWriter ()
	Destructor. More...
unsigned int	writeHeader ()
	Start writing the NetCDF file. More...
unsigned int	write (const LogEntry *entry, const Unit *unit=NULL)
	Write an entry to the buffer. More...
unsigned int	writeFooter ()
	Finish writing the NetCDF file. More...
virtual void	clearRow ()
virtual const Str &	getFilename ()
Public Member Functions inherited from TableLogWriter
	TableLogWriter (int varCount, char **varList, char **unitList, bool interpolate)
	Constructor. More...
	TableLogWriter (LogWriter *outputTo, int varCount, char **varList, char **unitList, bool interpolate)
	Constructor. More...
virtual	~TableLogWriter ()
	Destructor. More...
virtual unsigned int	writeAllInterpolated ()
virtual void	resetInputs ()
	Reset cached input settings. More...
Public Member Functions inherited from LogWriter
virtual	~LogWriter ()
	Destructor. More...
virtual void	setOutStream (OutStream &outStream)
	Sets the OutStream. More...
virtual bool	isValid ()
	Return true if logStream_ is available. More...
virtual void	endCycle ()
	Do what needs to be done at the end of the cycle. More...
virtual void	config (Logger &logger)
	Configure from a config file. More...
void	addParent ()
void	removeParent ()
int	getParentCount ()
virtual void	activate ()
virtual void	deactivate ()
virtual bool	isActive ()
virtual void	lockWrites ()
virtual void	unlockWrites ()
Public Member Functions inherited from HasFilename
virtual	~HasFilename ()

Private Member Functions
	NetCdfTableLogWriter (const NetCdfTableLogWriter &old)
void	initializeNetCdfTableLogWriter ()
	Initialize variables, etc. More...
void	addVar (const int index, const ElementURI *uri, BinaryDataType binaryType, const Unit &unit, short universalCode)
	Add a new variable. More...
void	setAttValue (const DataEntry *dataEntry, const int attIndex)
	Set an attribute value. More...
unsigned int	writeToColumn (const DataEntry *dataEntry, const int column)
	Write a data item. More...
unsigned int	writeRow ()
void	netCdfInitialize ()
	Initialize the NetCDF file. More...

Private Attributes
const Str	filename_
int	attCount_
char **	attList_
unsigned short *	attUriCodes_
int *	attCodeLookup_
NetCdfWriter *	netCdfWriter_
bool	netCdfInitialized_
bool	finalized_
const NetCdf::NetCdfAtt **	atts_
const NetCdf::NetCdfAtt **	attUnits_
NetCdf::NetCdfVar **	vars_

Additional Inherited Members
Public Types inherited from LogWriter
enum	ServiceType {   NO_SERVICE = -1, SERVICE_COURIER, SERVICE_EXPRESS, SERVICE_PRIORITY,   SERVICE_NORMAL, SERVICE_BULK, SERVICE_COUNT, SERVICE_MULTI }
Static Public Member Functions inherited from LogWriter
static ServiceType	Str2ServiceType (const char *const serviceTypeStr, int len=-1)
static const char *	ServiceType2Str (LogWriter::ServiceType serviceType)
static size_t	ServiceType2Strlen (LogWriter::ServiceType serviceType)
Static Public Attributes inherited from LogWriter
static const char *const	SERVICE_TYPE_STRS [SERVICE_COUNT]
static size_t const	SERVICE_TYPE_STRLEN [SERVICE_COUNT]
Protected Member Functions inherited from TableLogWriter
	TableLogWriter (const TableLogWriter &old)
void	initializeTableLogWriter ()
virtual unsigned int	writeSyslog (const SyslogEntry *syslogEntry)
const DataEntry **	newDataEntryRow ()
void	deleteDataEntryRow (const DataEntry **dataEntryRow)
unsigned int	writeInterpolated (const LogEntry *logEntry, const int column)
unsigned int	writeDataEntryRow (unsigned int row)
DataEntry *	interpolateDataEntry (const Timestamp &timestamp, const DataEntry *startEntry, const DataEntry *endEntry)
DataEntry *	nanDataEntry (const Timestamp &timestamp, const DataEntry *origEntry)
Protected Member Functions inherited from LogWriter
	LogWriter ()
	Protected constructor for pure virtual class. More...
	LogWriter (OutStream &outStream)
	Protected constructor for pure virtual class. More...
Protected Member Functions inherited from HasFilename
	HasFilename ()
Protected Attributes inherited from TableLogWriter
LogWriter *	outputTo_
int	varCount_
char **	varList_
char **	unitList_
const Unit **	units_
unsigned short *	uriCodes_
bool *	isUniversal_
int *	codeLookup_
bool	interpolate_
FlexArray< const DataEntry ** >	interpBuffer_
FlexArray< SyslogEntry * >	interpSyslogs_
FlexArray< Timestamp * >	interpTimes_
FlexArray< const True * >	readerColumn_
Timestamp	lastTime_
bool	initializedTableLogWriter_
unsigned int	slateElementURICount_
bool	deleteLists_
Protected Attributes inherited from LogWriter
OutStream *	logStream_
	Stores an OutStream. More...
bool	wroteHeader_
bool	wroteFooter_
Mutex	writeMutex_
int	parentCount_
bool	active_
Static Protected Attributes inherited from TableLogWriter
static True	True_

Detailed Description

Defines a LogWriter that generates a NetCDF table of values.

A list of variable names is supplied to the constructor. If any of these variables change their value in a computation cycle, then a record is added to the NetCDF file with the current value of every variable. The Timestamp for each record corresponds to the time of the start of the computation cycle in which any value changed.

Constructor & Destructor Documentation

NetCdfTableLogWriter::NetCdfTableLogWriter	(	const Str &	filename,
		bool	version4,
		int	varCount,
		char **	varListt,
		char **	unitList,
		bool	interpolate = false,
		int	attCount = 0,
		char **	attList = NULL
	)

Constructor.

Streamless Constructor.

References attCodeLookup_, attCount_, atts_, attUnits_, attUriCodes_, initializeNetCdfTableLogWriter(), MAX_CODES, ElementURI::NO_CODE, TableLogWriter::varCount_, and vars_.

NetCdfTableLogWriter::~NetCdfTableLogWriter ( )

virtual

Destructor.

References attCodeLookup_, atts_, attUnits_, attUriCodes_, finalized_, netCdfWriter_, vars_, and writeFooter().

NetCdfTableLogWriter::NetCdfTableLogWriter ( const NetCdfTableLogWriter &  old )

private

Member Function Documentation

void NetCdfTableLogWriter::addVar ( const int  index, const ElementURI *  uri, BinaryDataType  binaryType, const Unit &  unit, short  universalCode  )

private

Add a new variable.

References NetCdfWriter::addVar(), NetCdfWriter::addVarAtt(), Str::cStr(), NetCdf::NetCdfVar::dataValue_, UniversalURI::DEPTH, DOUBLE4, DOUBLE6, DOUBLE8, Str::EMPTY_STR, NetCdf::findVar(), FLOAT2, FLOAT3, FLOAT4, Unit::getAbbreviation(), Slate::GetElementURI(), INT4, TableLogWriter::isUniversal_, UniversalURI::LATITUDE, UniversalURI::LONGITUDE, MULTIVALUE, NetCdf::NC_ABSENT_TYPE, NetCdf::NC_DOUBLE_TYPE, NetCdf::NC_FLOAT_TYPE, NetCdf::NC_INT_TYPE, NetCdf::NC_SHORT_TYPE, netCdfWriter_, ElementURI::NO_CODE, NO_TYPE, Str::replaceChar(), SHORT2, UCHAR1, USHORT2, TableLogWriter::varList_, and vars_.

Referenced by netCdfInitialize().

void NetCdfTableLogWriter::clearRow ( )

virtual

Reimplemented from TableLogWriter.

virtual const Str& NetCdfTableLogWriter::getFilename ( )

inlinevirtual

Implements HasFilename.

References filename_.

void NetCdfTableLogWriter::initializeNetCdfTableLogWriter ( )

private

Initialize variables, etc.

Referenced by NetCdfTableLogWriter().

void NetCdfTableLogWriter::netCdfInitialize ( )

private

Initialize the NetCDF file.

References NetCdfWriter::addGlobalAtt(), NetCdfWriter::addVar(), addVar(), attCodeLookup_, attCount_, attList_, atts_, attUnits_, attUriCodes_, Str::cStr(), DOUBLE4, DOUBLE6, DOUBLE8, Str::findLastOf(), FLOAT2, FLOAT3, FLOAT4, DataAccess::getBinaryType(), Slate::GetDataAccess(), Slate::GetDataAccessCount(), DataAccess::getElementCode(), Slate::GetElementURI(), Slate::GetElementURICode(), DataAccess::getUnit(), DataAccess::getUniversalCode(), INT4, Slate::IsDirectoryRead(), TableLogWriter::isUniversal_, MULTIVALUE, NetCdf::NC_FLOAT_TYPE, netCdfInitialized_, netCdfWriter_, ElementURI::NO_CODE, Str::NO_POS, NO_TYPE, Str::replaceChar(), SHORT2, UCHAR1, TableLogWriter::units_, TableLogWriter::uriCodes_, USHORT2, TableLogWriter::varCount_, TableLogWriter::varList_, and vars_.

Referenced by writeHeader().

void NetCdfTableLogWriter::setAttValue ( const DataEntry *  dataEntry, const int  attIndex  )

private

Set an attribute value.

References atts_, attUnits_, DataValue::copyTo(), DataEntry::getDataAccess(), DataEntry::getDataValue(), DataAccess::getElementCode(), Slate::GetElementURI(), Unit::getName(), DataValue::getUnit(), NetCdf::NC_BYTE_TYPE, NetCdf::NC_CHAR_TYPE, NetCdf::NC_DOUBLE_TYPE, NetCdf::NC_FLOAT_TYPE, NetCdf::NC_INT_TYPE, NetCdf::NC_SHORT_TYPE, NetCdf::NetCdfAtt::nelems_, NetCdf::NetCdfAtt::netCdfType_, netCdfWriter_, NetCdfWriter::setAttValue(), and DataValue::toString().

Referenced by write().

unsigned int NetCdfTableLogWriter::write ( const LogEntry *  entry, const Unit *  unit = NULL  )

virtual

Write an entry to the buffer.

If a start of cycle is encountered, write the whole record to the NetCDF file.

Reimplemented from TableLogWriter.

References attCodeLookup_, LogEntry::DATA_LOG_ENTRY, DataEntry::getDataAccess(), DataAccess::getElementCode(), Slate::GetElementURICount(), LogEntry::getType(), TableLogWriter::initializedTableLogWriter_, TableLogWriter::initializeTableLogWriter(), netCdfInitialized_, setAttValue(), TableLogWriter::slateElementURICount_, TableLogWriter::write(), and writeHeader().

unsigned int NetCdfTableLogWriter::writeFooter ( )

virtual

Finish writing the NetCDF file.

Reimplemented from TableLogWriter.

References NetCdfWriter::finalize(), finalized_, TableLogWriter::initializedTableLogWriter_, TableLogWriter::lastTime_, netCdfInitialized_, netCdfWriter_, ElementURI::NO_CODE, TableLogWriter::uriCodes_, TableLogWriter::varCount_, TableLogWriter::varList_, vars_, TableLogWriter::writeFooter(), NetCdfWriter::writeRecord(), and LogWriter::wroteFooter_.

Referenced by ~NetCdfTableLogWriter().

unsigned int NetCdfTableLogWriter::writeHeader ( )

virtual

Start writing the NetCDF file.

Reimplemented from TableLogWriter.

References NetCdfWriter::initialize(), netCdfInitialize(), netCdfInitialized_, and netCdfWriter_.

Referenced by write().

unsigned int NetCdfTableLogWriter::writeRow ( )

privatevirtual

Reimplemented from TableLogWriter.

References TableLogWriter::lastTime_, netCdfWriter_, and NetCdfWriter::writeRecord().

unsigned int NetCdfTableLogWriter::writeToColumn ( const DataEntry *  dataEntry, const int  column  )

privatevirtual

Write a data item.

Reimplemented from TableLogWriter.

References DataValue::copyTo(), NetCdf::NetCdfVar::dataValue_, DataEntry::getDataValue(), DataValue::getUnit(), DataValue::setFrom(), and vars_.

Member Data Documentation

int* NetCdfTableLogWriter::attCodeLookup_

private

Referenced by netCdfInitialize(), NetCdfTableLogWriter(), write(), and ~NetCdfTableLogWriter().

int NetCdfTableLogWriter::attCount_

private

Referenced by netCdfInitialize(), and NetCdfTableLogWriter().

char** NetCdfTableLogWriter::attList_

private

Referenced by netCdfInitialize().

const NetCdf::NetCdfAtt** NetCdfTableLogWriter::atts_

private

Referenced by netCdfInitialize(), NetCdfTableLogWriter(), setAttValue(), and ~NetCdfTableLogWriter().

const NetCdf::NetCdfAtt** NetCdfTableLogWriter::attUnits_

private

Referenced by netCdfInitialize(), NetCdfTableLogWriter(), setAttValue(), and ~NetCdfTableLogWriter().

unsigned short* NetCdfTableLogWriter::attUriCodes_

private

Referenced by netCdfInitialize(), NetCdfTableLogWriter(), and ~NetCdfTableLogWriter().

const Str NetCdfTableLogWriter::filename_

private

Referenced by getFilename().

bool NetCdfTableLogWriter::finalized_

private

Referenced by writeFooter(), and ~NetCdfTableLogWriter().

bool NetCdfTableLogWriter::netCdfInitialized_

private

Referenced by netCdfInitialize(), write(), writeFooter(), and writeHeader().

NetCdfWriter* NetCdfTableLogWriter::netCdfWriter_

private

Referenced by addVar(), netCdfInitialize(), setAttValue(), writeFooter(), writeHeader(), writeRow(), and ~NetCdfTableLogWriter().

NetCdf::NetCdfVar** NetCdfTableLogWriter::vars_

private

Referenced by addVar(), netCdfInitialize(), NetCdfTableLogWriter(), writeFooter(), writeToColumn(), and ~NetCdfTableLogWriter().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/logger/NetCdfTableLogWriter.h
• /Volumes/ubuntu_share/lrauv-application/Source/logger/NetCdfTableLogWriter.cpp
