Primitive Cone panel

Use the Primitive Cone function to create a cone as a solid, mesh, or surface model. Mastercam creates a point in the center of the first arc you define for the cone. This point can be useful for editing the solid entity.

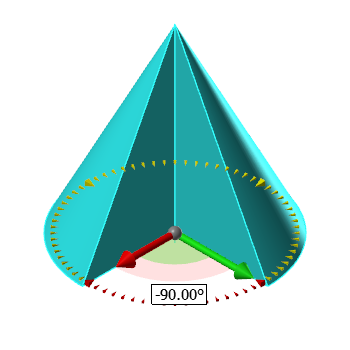

Click and drag the on-screen sweep angle control arrows to adjust the Start and/or End of the Sweep Angle.
