ComponentRegistry Class Reference

Keeps track of all Components currently loaded and their assignment to handlers. More...

#include <ComponentRegistry.h>

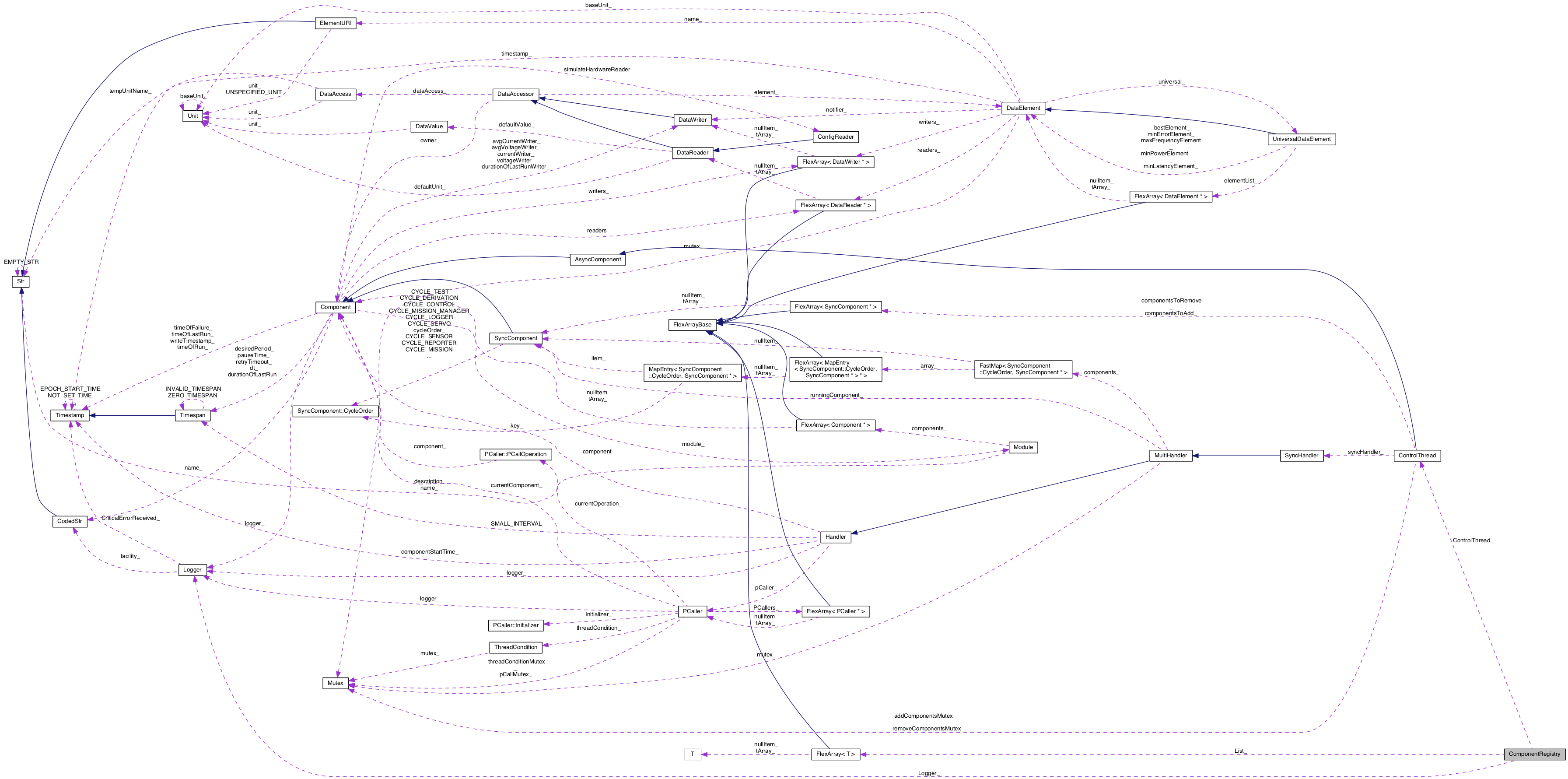

Collaboration diagram for ComponentRegistry:

Classes
struct	ComponentRegistryEntry
	A structure for containing all the ComponentRegistry's "entry" about a component. More...

Static Public Member Functions
static void	Initialize ()
	Initializes the list and logger. More...
static void	Uninitialize ()
	Uninitializes the list. More...
static void	UninitializeControlThread ()
	Uninitializes the control thread. More...
static Handler *	Insert (Component *component, bool insertFront=false)
	Add the component to the registry. More...
static void	Remove (Component *component)
	Remove the given component from the registry. More...
static Component *	Find (const Str &name)
	Finds a component given its name. More...
static Handler *	FindHandler (const Str &name)
	Finds a component handler given its name. More...
static size_t	Length ()
	Returns the number of entries in the registry. More...
static void	StartThreads (void)
	Start (spawn) all of the Components which run in their own ThreadHandlers. More...
static void	ShutdownThreads (void)
	Stop all of the Components which run in their own ThreadHandlers. More...
static void	DeleteAll (void)
	Delete all contained components and handlers (cleanup). More...
static const Timespan &	GetControlThreadPeriod ()
	Gets the period of the ControlThread. More...
static void	SetControlThreadPeriod (const Timespan &period)
	Sets the period of the ControlThread. More...
static unsigned int	GetEntryCount (void)
	Returns the number of Entries. More...
static const Component *	GetIndexed (const unsigned int index)
	Returns the component at the indexed position Returns NULL if there is no component at the indicated index. More...

Static Protected Member Functions
static Component *	PurgeEntry (ComponentRegistryEntry *entry)
	The actual "cleanup" function called by RemoveC and DeleteAll. More...

Private Types
typedef FlexArray< ComponentRegistry::ComponentRegistryEntry * >	ListOfComponentRegistryEntries

Private Member Functions
	ComponentRegistry ()
	Private Constructor for static class. More...

Static Private Attributes
static ListOfComponentRegistryEntries *	List_
	The list of ComponentRegistryEntries. More...
static Logger *	Logger_
	Pointer to a Logger. More...
static ControlThread *	ControlThread_
	Pointer to the ControlThread. More...

Detailed Description

Keeps track of all Components currently loaded and their assignment to handlers.

It also "owns" the ControlThread.

In general, the ComponentRegistry does not handle Component destruction. It's critical, of course, that Components be unregistered from the registry before being deleted.

Member Typedef Documentation

typedef FlexArray<ComponentRegistry::ComponentRegistryEntry *> ComponentRegistry::ListOfComponentRegistryEntries

private

Constructor & Destructor Documentation

ComponentRegistry::ComponentRegistry ( )

inlineprivate

Private Constructor for static class.

Member Function Documentation

void ComponentRegistry::DeleteAll ( void  )

static

Delete all contained components and handlers (cleanup).

Goes in reverse order of component insertion. Calls purgeEntry on each remaining entry, then delete the component (which purgeEntry and removeEntry do not do)

References ControlThread_, FlexArrayBase::isEmpty(), List_, FlexArray< T >::pop(), and PurgeEntry().

Referenced by Uninitialize().

Component * ComponentRegistry::Find ( const Str &  name )

static

Finds a component given its name.

Case sensitive.

Parameters

name	Name of component to be found

Returns

Pointer to component if found, or NULL if not found

References FlexArray< T >::get(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), Component::getName(), and List_.

Referenced by CommandLine::commandFailComponent(), Config::Instance(), ReadDataComponent::Instance(), and Config::LoadPersistedConfigSets().

Handler * ComponentRegistry::FindHandler ( const Str &  name )

static

Finds a component handler given its name.

Case sensitive.

Parameters

name	Name of component handler to be found

Returns

Pointer to handler if found, or NULL if not found

References ComponentRegistry::ComponentRegistryEntry::component_, FlexArray< T >::get(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), Component::getName(), ComponentRegistry::ComponentRegistryEntry::handler_, and List_.

const Timespan & ComponentRegistry::GetControlThreadPeriod ( )

static

Gets the period of the ControlThread.

Returns

period of the ControlThread, in seconds

References ControlThread_, and Component::getPeriod().

Referenced by Handler::runBetween().

unsigned int ComponentRegistry::GetEntryCount ( void  )

static

Returns the number of Entries.

References List_, and FlexArrayBase::size().

Referenced by Supervisor::configure(), CBIT::handleComponentFaults(), and CBIT::initialize().

const Component * ComponentRegistry::GetIndexed ( const unsigned int  index )

static

Returns the component at the indexed position Returns NULL if there is no component at the indicated index.

References ComponentRegistry::ComponentRegistryEntry::component_, FlexArray< T >::get(), and List_.

Referenced by CommandLine::commandFailComponent(), Supervisor::configure(), and CBIT::handleComponentFaults().

void ComponentRegistry::Initialize ( )

static

Initializes the list and logger.

References ControlThread_, Insert(), List_, and Logger_.

Referenced by Supervisor::initialize().

Handler * ComponentRegistry::Insert ( Component *  component, bool  insertFront = false  )

static

Add the component to the registry.

Uses the component's handler preferences to match it to a handler.

Parameters

component	The component added to the registry.
insertFront	If true, the component is inserted at the front of the list (first to start, last to be stopped) — used to force the Logger to the front of the list

References ControlThread::addComponent(), Component::COMPONENT_ASYNC, Component::COMPONENT_BEHAVIOR, Component::COMPONENT_CONFIG, Component::COMPONENT_SYNC, ControlThread_, Syslog::ERROR, FlexArray< T >::get(), Component::getComponentType(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), Component::getName(), ControlThread::getSyncHandler(), ComponentRegistry::ComponentRegistryEntry::handler_, List_, Logger_, FlexArray< T >::push(), Handler::setAsControlLoopHandler(), Handler::setAsLogHandler(), Logger::syslog(), and Component::ThreadHandler.

Referenced by Maintainer::addMaintain(), Initialize(), Supervisor::initialize(), Config::LoadConfigFilesInPath(), and Module::registerComponent().

size_t ComponentRegistry::Length ( )

static

Returns the number of entries in the registry.

Returns

Number of entries in the registry.

References List_, and FlexArrayBase::size().

Referenced by CommandLine::commandFailComponent().

Component * ComponentRegistry::PurgeEntry ( ComponentRegistryEntry *  entry )

staticprotected

The actual "cleanup" function called by RemoveC and DeleteAll.

Doesn't remove entry from list_, assumes caller will do that.

Parameters

entry

Entry to clean up

Returns

Component contained in the entry (or NULL), which isn't touched.

References ComponentRegistry::ComponentRegistryEntry::component_, Component::COMPONENT_ASYNC, Component::COMPONENT_BEHAVIOR, Component::COMPONENT_CONFIG, Component::COMPONENT_SYNC, ControlThread_, ComponentRegistry::ComponentRegistryEntry::handler_, ComponentRegistry::ComponentRegistryEntry::handlerType_, ControlThread::removeComponent(), and Handler::shutdown().

Referenced by DeleteAll(), and Remove().

void ComponentRegistry::Remove ( Component *  component )

static

Remove the given component from the registry.

Does not delete the component, but does delete any handlers (uses purgeEntry)

Parameters

component

The component to be removed from the registry.

References ComponentRegistry::ComponentRegistryEntry::component_, FlexArray< T >::get(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), List_, FlexArray< T >::pop(), and PurgeEntry().

Referenced by Config::Instance(), Maintainer::removeMaintain(), Module::unregisterComponent(), and Module::~Module().

void ComponentRegistry::SetControlThreadPeriod ( const Timespan &  period )

static

Sets the period of the ControlThread.

Parameters

period

Period of the ControlThread, in seconds

References ControlThread_, and Component::setPeriod().

Referenced by LoopControl::run().

void ComponentRegistry::ShutdownThreads ( void  )

static

Stop all of the Components which run in their own ThreadHandlers.

Goes in LIFO order, so the last threaded Component added is the first one shutdown.

References Component::COMPONENT_ASYNC, FlexArray< T >::get(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), Handler::getName(), ComponentRegistry::ComponentRegistryEntry::handler_, ComponentRegistry::ComponentRegistryEntry::handlerType_, Syslog::INFO, List_, Logger_, Handler::shutdown(), and Logger::syslog().

Referenced by Supervisor::uninitialize().

void ComponentRegistry::StartThreads ( void  )

static

Start (spawn) all of the Components which run in their own ThreadHandlers.

Threads are started in the order in which their Components were added to the registry.

References Component::COMPONENT_ASYNC, FlexArray< T >::get(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), ComponentRegistry::ComponentRegistryEntry::handler_, ComponentRegistry::ComponentRegistryEntry::handlerType_, Handler::isRunning(), List_, and Handler::run().

Referenced by Supervisor::run().

void ComponentRegistry::Uninitialize ( )

static

Uninitializes the list.

References ControlThread_, DeleteAll(), List_, and Logger_.

Referenced by Supervisor::uninitialize().

static void ComponentRegistry::UninitializeControlThread ( )

static

Uninitializes the control thread.

Member Data Documentation

ControlThread * ComponentRegistry::ControlThread_

staticprivate

Pointer to the ControlThread.

Referenced by DeleteAll(), GetControlThreadPeriod(), Initialize(), Insert(), PurgeEntry(), SetControlThreadPeriod(), and Uninitialize().

ComponentRegistry::ListOfComponentRegistryEntries * ComponentRegistry::List_

staticprivate

The list of ComponentRegistryEntries.

Referenced by DeleteAll(), Find(), FindHandler(), GetEntryCount(), GetIndexed(), Initialize(), Insert(), Length(), Remove(), ShutdownThreads(), StartThreads(), and Uninitialize().

Logger * ComponentRegistry::Logger_

staticprivate

Pointer to a Logger.

Referenced by Initialize(), Insert(), ShutdownThreads(), and Uninitialize().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/component/ComponentRegistry.h
• /Volumes/ubuntu_share/lrauv-application/Source/component/ComponentRegistry.cpp
