Module Class Reference

Module is the abstract base class for a collection of Component objects that can be contained in a loadable module. More...

#include <Module.h>

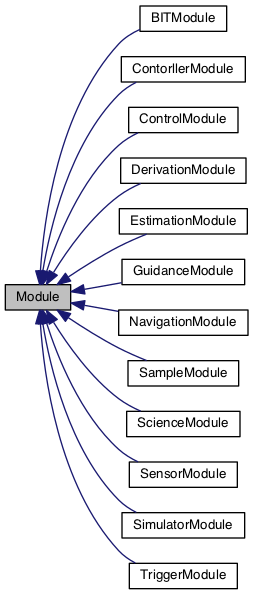

Inheritance diagram for Module:

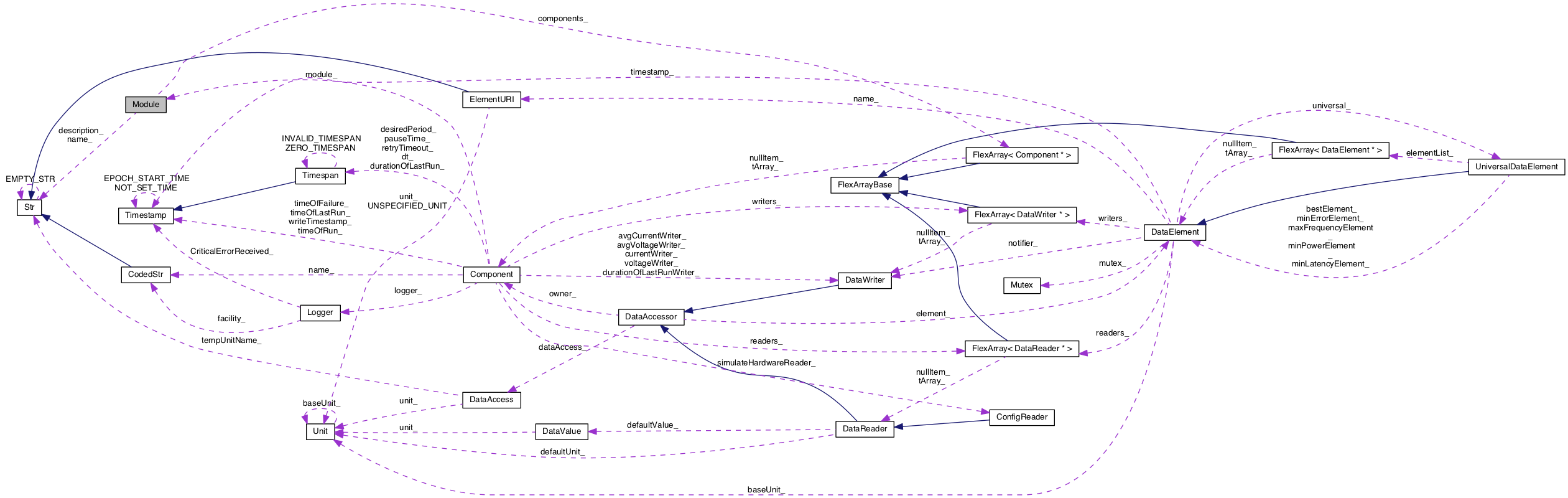

Collaboration diagram for Module:

Public Member Functions
virtual	~Module ()
	destructor More...
virtual FlexArray< Component * > *	getComponents ()
	returns a vector of components in the module More...
virtual const Str &	getName () const
	returns the name of the module More...
virtual const Str &	getDescription ()
	returns a description of the module More...
virtual void	loadComponents (Logger &logger)=0
	loads the collection of components belonging to this module More...
void	registerComponent (Component *comp)
void	registerBehaviorCreator (const Str &creatorName, BehaviorCreator behaviorCreator)
void	unregisterComponent (Component *comp)

Protected Member Functions
	Module (Str name, Str description)
	Protected constructor for abstract base class. More...
bool	loadAtStartup (const ConfigURI &loadCfg, Logger &logger, bool forceIfMissing=false)

Protected Attributes
Str	name_
Str	description_
FlexArray< Component * >	components_

Private Member Functions
	Module (const Module &old)

Detailed Description

Module is the abstract base class for a collection of Component objects that can be contained in a loadable module.

Typically, an implementation of Module will call: registerComponent( new MyComponent() ); for each Component in the module, except MissionComponents, which require a call to registerBehaviorCreator( MyComponentIF::NAME, &MyComponent::CreateBehavior ); for each Behavior.

Module implementations must implement:

• extern "C" Module* create_module(), which just returns a "new" instance of the module
  –AND–
• extern "C" void destroy(Module* module), which calls "delete" on the module object.

Constructor & Destructor Documentation

Module::~Module ( )

virtual

destructor

References components_, FlexArrayBase::isEmpty(), FlexArray< T >::pop(), and ComponentRegistry::Remove().

Module::Module ( Str  name, Str  description  )

protected

Protected constructor for abstract base class.

Module::Module ( const Module &  old )

private

Member Function Documentation

FlexArray< Component * > * Module::getComponents ( )

virtual

returns a vector of components in the module

returns a vector of components in the module

References components_.

const Str & Module::getDescription ( )

virtual

returns a description of the module

References description_.

Referenced by ModuleLoader::loadModule().

const Str & Module::getName ( void  ) const

virtual

returns the name of the module

References name_.

Referenced by Slate::ConfigureNewDataElement(), and ModuleLoader::loadModule().

bool Module::loadAtStartup ( const ConfigURI &  loadCfg, Logger &  logger, bool  forceIfMissing = false  )

protected

References Units::BOOL, and Slate::ReadOnce().

Referenced by BITModule::loadComponents(), ControlModule::loadComponents(), EstimationModule::loadComponents(), DerivationModule::loadComponents(), ScienceModule::loadComponents(), SampleModule::loadComponents(), NavigationModule::loadComponents(), ContorllerModule::loadComponents(), SensorModule::loadComponents(), and SimulatorModule::loadComponents().

virtual void Module::loadComponents ( Logger &  logger )

pure virtual

loads the collection of components belonging to this module

Implemented in SimulatorModule, SensorModule, NavigationModule, ContorllerModule, BITModule, ControlModule, DerivationModule, EstimationModule, GuidanceModule, SampleModule, ScienceModule, and TriggerModule.

Referenced by ModuleLoader::loadModule().

void Module::registerBehaviorCreator	(	const Str &	creatorName,
		BehaviorCreator	behaviorCreator
	)

References BehaviorRegistry::Insert().

Referenced by EstimationModule::loadComponents(), TriggerModule::loadComponents(), GuidanceModule::loadComponents(), and SensorModule::loadComponents().

void Module::registerComponent

(

Component *

comp

)

References components_, Component::getLogger(), ComponentRegistry::Insert(), Logger::logComponentLoad(), and FlexArray< T >::push().

Referenced by BITModule::loadComponents(), ControlModule::loadComponents(), EstimationModule::loadComponents(), DerivationModule::loadComponents(), ScienceModule::loadComponents(), SampleModule::loadComponents(), NavigationModule::loadComponents(), ContorllerModule::loadComponents(), SensorModule::loadComponents(), and SimulatorModule::loadComponents().

void Module::unregisterComponent

(

Component *

comp

)

References components_, Component::getLogger(), FlexArrayBase::getMaxIndex(), FlexArrayBase::getMinIndex(), Logger::logComponentLoad(), FlexArray< T >::pop(), and ComponentRegistry::Remove().

Member Data Documentation

FlexArray<Component*> Module::components_

protected

Referenced by getComponents(), registerComponent(), unregisterComponent(), and ~Module().

Str Module::description_

protected

Referenced by getDescription().

Str Module::name_

protected

Referenced by getName().

---

The documentation for this class was generated from the following files:

• /Volumes/ubuntu_share/lrauv-application/Source/module/Module.h
• /Volumes/ubuntu_share/lrauv-application/Source/module/Module.cpp
