ReadiNet Developer Guide

This document is the definitive reference for engineers working on the ReadiNet project. It covers architecture, local development, OS image builds, cloud server deployment, and a detailed tour of every significant file in the codebase.

1. System Overview

FIDO is a distributed water sampling system. Each field deployment consists of one or more RockPi S devices running the READI-Net OS, each physically connected to a FIDO sampler via USB serial. A central cloud server (AWS EC2) provides remote management and data aggregation.

graph TB subgraph cloud[Cloud EC2] direction BT nginx(Nginx 443 TLS) flask(Flask ROLE=server) mqtt-broker(Eclipse Mosquitto MQTT Broker :1883) headscale(Headscale VPN Server) sqlite-db(SQLite DB - one per device) end subgraph rockpi[RockPi-Armbian] direction BT wlan1("WLAN1-Hotspot AP 10.42.0.1/24") wlan2("WLAN2-Uplink to Internet") eth0(Eth0 Wired for fallback/debug) nginx-rock-pi(Nginx 443) gunicorn(Gunicorn/Flask App Server-ROLE=device) serial(USB Serial to FIDO) sqlite-db-rock-pi(SQLite DB
/opt/web/instance/
readinet-prod.db) systemd-timers(Systemd Timers for Scheduled Events) end cloud <-- Tailscale VPN Tunnel --> rockpi

The same Flask application codebase runs in both roles, controlled by a single ROLE environment variable. The device is considered ground truth for its own data; the server is a synchronized mirror with an administrative UI on top.

2. Repository Layout

readi-net/
├── README.md                ← end-user and high-level developer docs
├── compose.yml              ← Docker Compose for local development
├── .tool-versions           ← python 3.10.12 (asdf/mise)
├── .gitignore
│
├── docs/                    ← Markdown Documentation
├── os/                      ← Armbian image build system
│   ├── build-os.sh          ← main local build script
│   ├── build-aws.sh         ← launches AWS spot instance to build
│   ├── aws-userdata.sh      ← EC2 user-data: clones repo, builds, uploads to S3
│   ├── set-device-vars.sh   ← pre-flash provisioning utility
│   ├── build-vagrant.sh     ← alternative: build in local Vagrant VM
│   ├── Vagrantfile          ← Vagrant config for local build VM
│   └── userpatches/         ← Armbian build overrides
│       ├── config-readinet.conf  ← board/kernel/package config
│       ├── config-default.conf   ← symlink → config-readinet.conf
│       ├── lib.config            ← extra apt packages
│       ├── customize-image.sh    ← post-build chroot script
│       ├── kernel/archive/       ← custom kernel patches
│       └── overlay/              ← files copied into the image
│           ├── readinet-web.service
│           ├── readinet-firstboot.{service,sh}
│           ├── readinet-network.{service,sh}
│           ├── readinet-hotspot.{service,sh}
│           ├── readinet-nginx-setup.{service,sh}
│           ├── readinet-event@.{service,timer}
│           ├── readinet-install-schedule.service
│           ├── {Ethernet,Hotspot,Uplink,WiredConnection1}.nmconnection
│           ├── nginx.conf
│           ├── 99-readinet.conf   ← sshd config
│           ├── rk3308-*.dtbo      ← device tree overlays
│           └── web -> ../../../web  ← symlink to web/ app
│
├── web/                     ← Flask application (device + server)
│   ├── Dockerfile
│   ├── pyproject.toml       ← Python dependencies (Poetry)
│   ├── mosquitto.conf       ← MQTT broker config
│   ├── .env.sample          ← template for local .env
│   ├── bootstrap.sh         ← container init: db upgrade + seed
│   ├── device_simulator/    ← virtual FIDO sampler for local dev
│   └── readinet/
│       ├── app.py           ← Flask application factory
│       ├── config.py        ← configuration, logging setup
│       ├── models.py        ← SQLAlchemy models + MQTT sync hooks
│       ├── api.py           ← API blueprint (all POST/GET actions)
│       ├── sync.py          ← MQTT sync message protocol
│       ├── background.py    ← background workers (MQTT, sampler, ping)
│       ├── events.py        ← log parsing + LogMessageListener
│       ├── sampler.py       ← serial communication with FIDO device
│       ├── util.py          ← auth decorators
│       ├── errors.py        ← custom exceptions
│       ├── views/
│       │   ├── device.py    ← device-role Blueprint routes
│       │   └── server.py    ← server-role Blueprint routes
│       ├── scripts/
│       │   ├── seed.py      ← flask seed command
│       │   ├── scheduled_events.py  ← schedule installation + dispatcher
│       │   └── network.py   ← flask set_hotspot_ssid command
│       ├── templates/       ← Jinja2 HTML templates
│       ├── static/          ← CSS, JS, vendor libraries
│       └── migrations/      ← Alembic database migrations
│
└── devops/
    ├── ansible/             ← server configuration management
    │   ├── hosts            ← dev/prod/test server IPs
    │   ├── server.yml       ← main playbook
    │   └── roles/
    │       └── readinet-web/ ← web app deployment role
    └── terraform/           ← AWS infrastructure as code
        ├── readinet.tf      ← root module
        └── readinet-server/ ← EC2, EIP, IAM, security groups

3. Architecture Deep Dive

3.1 The Two Roles: Device and Server

The entire Flask application lives in one codebase. The ROLE environment variable determines which mode it runs in. This is evaluated at startup in web/readinet/app.py.

ROLE=device (runs on a RockPi S in the field):

Does not register server_pages blueprint — no login page, no user management
Redirects / to /device (singular)
Auth decorators are bypassed — the device UI has no login screen
Background workers: MQTTThread + SamplerSelfCheckDriver + ConnectivityPingDriver
Hybrid property setters for WiFi SSIDs/PSKs call systemctl restart readinet-network
SensorExecution.command setter opens the serial port and runs the command directly
Writes to two log files on disk + publishes log lines to MQTT log/{device_id} topic

ROLE=server (runs in Docker on AWS EC2):

Registers server_pages blueprint — adds /login, /logout, /devices, /users, /organizations
Redirects / to /devices (plural)
Auth decorators enforce Flask-Login session + role checks
Background workers: MQTTThread only
SensorExecution.command setter stores SERVER_ENQUEUED — the record syncs to the device via MQTT, where the device's setter detects ROLE=device and runs it
Receives device logs via MQTT and writes them to server-side log files

The THIS_DEVICE_ID variable identifies who is running. By default it is a UUID but can be changed using the set-device-vars.sh script before installing on the RockPi. On the server it's the literal string "server", used in MQTT publisher identification and is_from_self() checks.

3.2 MQTT Synchronization Protocol

Every database change is automatically propagated between device and server via MQTT. This is implemented through SQLAlchemy event hooks and a message queue.

How a change propagates

SQLAlchemy fires after_insert/after_update on any model instance (web/readinet/models.py:832-839)
model_change_listener() checks the _is_mqtt flag. If True, the change originated from MQTT and is skipped (prevents infinite loops)
SyncMessage.save() is called, which serializes the row via as_dict() and puts a JSON message on MQTT_SEND_QUEUE
The MQTTThread in web/readinet/background.py drains the queue and publishes to the appropriate MQTT topic
The receiving side's on_message handler routes the message to SyncMessage.apply_operation()
apply_operation() upserts the record into the local database, setting _is_mqtt = True to suppress re-propagation

MQTT Topics

Topic	Publisher	Subscriber	Purpose
`sync/{device_id}`	Device	Server (`sync/+`)	Device DB changes → server
`sync/{device_id}`	Server	Device (`sync/{device_id}`)	Server DB changes → device
`log/{device_id}`	Device	Server (`log/+`)	Log stream from device
`snapshot/{device_id}`	Device	Server (`snapshot/+`)	Full reconciliation snapshot
`snapshot_request/{device_id}`	Server	Device	Request device to send snapshot

Initial Handshake

Every time a device connects to MQTT, it calls send_initial_handshake() (web/readinet/models.py:249), which publishes its full truth_snapshot to snapshot/{device_id}. The server's SnapshotMessageListener compares update_hash values and, if they differ, does a full destructive reconciliation — deleting server-side records and rebuilding from the device snapshot.

QoS and Persistence

MQTT uses QoS 2 (exactly-once delivery) and clean_session=False (persistent sessions). This means messages queued while a device is offline are delivered when it reconnects. The broker (Mosquitto) persists these to /mosquitto/data.

The `update_hash`

Each Device record has an update_hash hybrid property (web/readinet/models.py:430) that computes an xxhash of all record IDs associated with that device (device + device_status + scheduled_events + historical_events). It changes only when records are added or deleted, not when fields change. This is used by SnapshotMessageListener to detect whether a full reconciliation is needed.

`_exclude_from_mqtt_sync`

Models that set the class attribute _exclude_from_mqtt_sync = True are skipped by the SQLAlchemy event hooks. Use this for server-only models that should not be synced to devices.

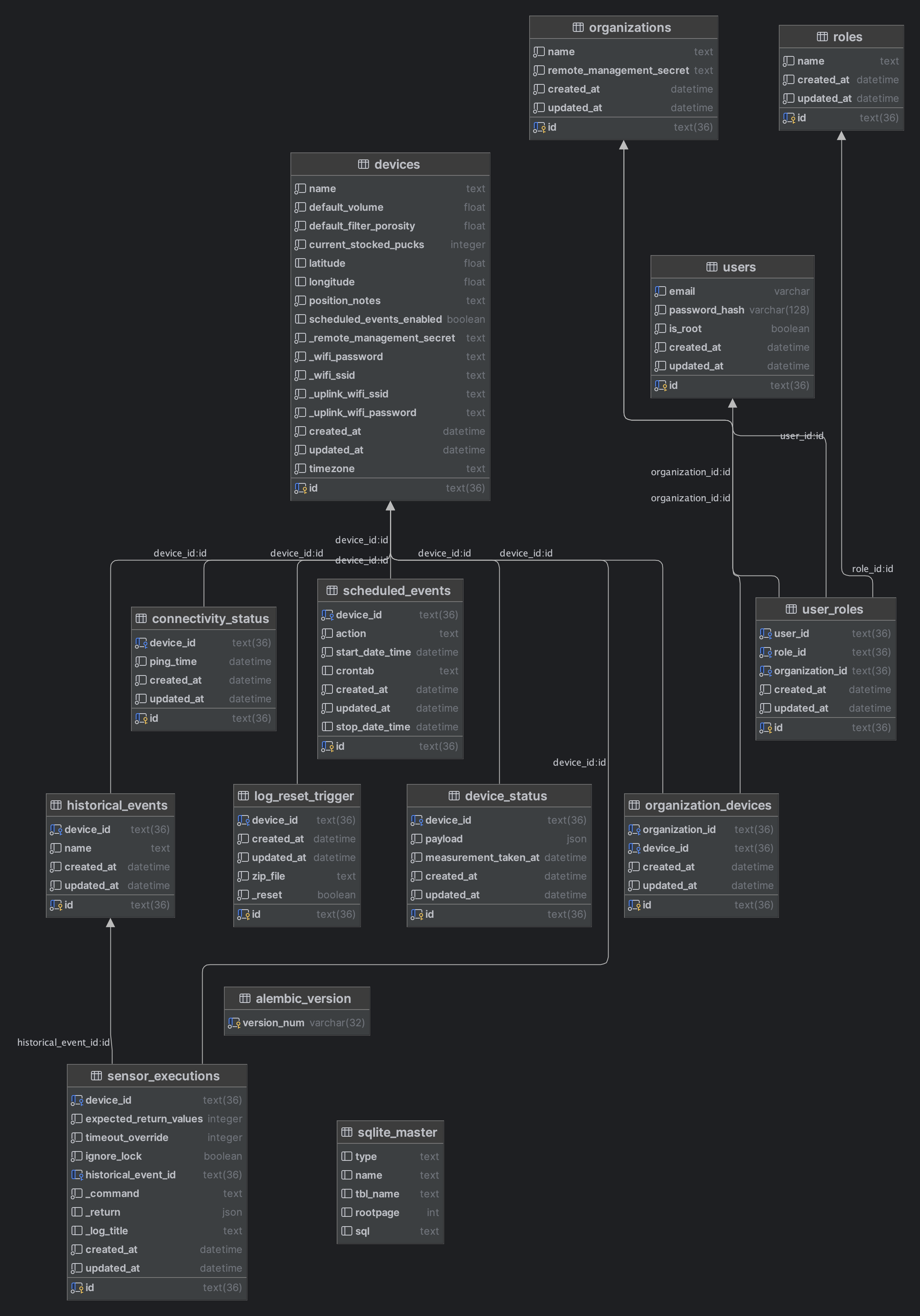

3.3 Database and Models

All models live in web/readinet/models.py. They all inherit CommonMixin, which provides: - created_at, updated_at timestamp columns - as_dict() — ordered dict serialization (hybrids last, for correct MQTT apply ordering) - as_truth_snapshot() — row ID + data dict used for hash computation - resolved_device_id() — determines the parent device for any record - topic_for_instance() — determines the MQTT sync topic

Models:

Model	Table	Description
`Device`	`devices`	Core device record. Holds all device config including WiFi credentials (hybrid properties with side effects), location, sampler defaults, and puck inventory.
`DeviceStatus`	`device_status`	Latest sampler status payload. Updated by `SamplerSelfCheckDriver` every 30 minutes.
`ConnectivityStatus`	`connectivity_status`	Heartbeat from the device. Updated every 60 seconds by `ConnectivityPingDriver`. Server uses this to determine if device is online (within last 5 minutes).
`HistoricalEvent`	`historical_events`	A named, timestamped event record. Created when sample/decon operations complete.
`SensorExecution`	`sensor_executions`	A command record. On device: triggers actual serial communication. On server: stores `SERVER_ENQUEUED` and syncs to device via MQTT.
`ScheduledEvent`	`scheduled_events`	A scheduled sample/decon. Has either a one-time `start_date_time` or a crontab string for recurring events.
`LogResetTrigger`	`log_reset_trigger`	Triggers log archival and rotation when `reset` is set. Has a 60-second TTL check to prevent stale triggers from executing.
`Organization`	`organizations`	A tenant group. Has devices and users. Auto-generates an 8-character `remote_management_secret`.
`OrganizationDevice`	`organization_devices`	Many-to-many join: Organization ↔ Device.
`ScheduledEvent`	`scheduled_events`	Sample/decon schedule, per device.
`Role`	`roles`	Named role: `user` or `admin`.
`UserRole`	`user_roles`	User + Role + Organization triple.
`User`	`users`	Login credentials. `is_root` grants access to organization management.

Important Device hybrid properties with side effects:

Property	On Set (device role)	On Set (server role)
`wifi_ssid` / `wifi_password`	`systemctl restart readinet-network`	No side effect
`uplink_wifi_ssid` / `uplink_wifi_password`	`systemctl restart readinet-network`	No side effect
`remote_management_secret`	No side effect	Links device to matching Organization

3.4 Background Workers

All workers are gevent greenlets registered in web/readinet/app.py when RUN_BACKGROUND_THREADS is set.

MQTTThread (web/readinet/background.py:135):

Waits up to 120 seconds for network readiness (DNS resolution of MQTT_BROKER_URL)
Connects with exponential backoff
On connect: subscribes to appropriate topics based on role, sends initial handshake (device only)
Runs two concurrent loops: loop_forever() greenlet for receiving, drain loop for the send queue
Uses spawn_in_app_context() for all DB operations to ensure Flask app context is available

SamplerSelfCheckDriver (web/readinet/background.py:314, device only):

On startup: installs the device schedule (install_schedule_on_device()), initializes the sampler with fido.init()
Every SAMPLER_SELF_CHECK_SECONDS (default 1800s): if sampler is unlocked, runs fido.check() and updates DeviceStatus

ConnectivityPingDriver (web/readinet/background.py:368, device only):

Every CONNECTIVITY_PING_CHECK_SECONDS (default 60s): writes current timestamp to ConnectivityStatus
This record is synced to the server, allowing the server to know the device is alive

spawn_in_app_context(func, *args) (web/readinet/background.py):

A helper that runs a function in a new gevent greenlet within a Flask app context. Always call db.session.remove() on completion. Use this whenever you need to do DB work from within an MQTT message handler or other non-request context.

3.5 Networking on the Device

The device has up to three network interfaces managed by NetworkManager:

Interface	Connection Profile	Role
`eth0`	`Ethernet.nmconnection`	Wired ethernet, DHCP, route-metric=90
`wlan1`	`Hotspot.nmconnection`	AP mode, SSID `readinet-XXXXX`, 10.42.0.1/24
`wlan2`	`Uplink.nmconnection`	STA mode, connects to site WiFi, route-metric=201

wlan0 is explicitly unmanaged (via 30-ignore-wlan0.conf) to prevent NM from interfering with it.

NetworkManager's ipv4.method=shared on the Hotspot profile provides DHCP and NAT automatically — no separate dnsmasq configuration is needed (the included dnsmasq.conf is a legacy artifact).

The readinet-network.sh script, run at every boot via readinet-network.service, reads the desired WiFi credentials from the SQLite database and patches the NM connection files in place, then reloads NetworkManager. This allows the admin to change WiFi settings through the web UI without needing to touch the device directly.

3.6 Sampler Serial Communication

The FIDO sampler is a MicroPython device connected via USB serial (typically /dev/ttyUSB0). Communication goes through web/readinet/sampler.py.

Protocol:

Commands are written as text (e.g., fido.sample('name, date', 1.0, 0.5, "note"))
The sampler echoes back text during operation
End of response is signaled by ^^^ followed by a JSON array of return values
Lock file /tmp/readinet.lock prevents concurrent access

SamplerControl.run(commands, num_return_vals_expected, timeout_override, ignore_lock):

Acquires /tmp/readinet.lock (raises DeviceLocked if held)
Opens the serial port configured by SAMPLER_TTY and SAMPLER_BAUD
Writes each command in sequence
Reads 256-byte chunks in a loop, accumulating lines
Detects the ^^^ response terminator
Parses the JSON return array
Releases the lock

gevent.sleep(0) is called between reads to yield control without blocking the gevent event loop.

Device simulator (web/device_simulator/): For local development, run simulate.sh inside a device container. It creates a virtual serial port pair via socat and runs esp.py as a mock FIDO sampler.

3.7 Scheduled Events

Scheduled samples and decons are implemented using systemd timers, not cron or an in-process scheduler.

How it works:

A ScheduledEvent record is created (via the web UI calendar)
This record syncs to the device via MQTT
install_schedule_on_device() (web/readinet/scripts/scheduled_events.py:106) translates the DB records into systemd OnCalendar= directives and writes them to override files at /etc/systemd/system/readinet-event@<name>.timer.d/override.conf
systemctl daemon-reload and timer restarts apply the new schedule
When a timer fires, it triggers the paired .service unit which POSTs to http://127.0.0.1:8000/private/event/<command>
The API endpoint (web/readinet/api.py:349) calls run_scheduled_task(command) which dispatches to the appropriate SensorExecution.run() call

The six timer instances:

readinet-event@sample-only.timer
readinet-event@sample-and-decon.timer
readinet-event@decon-only.timer
readinet-event@recurring-sample-only.timer
readinet-event@recurring-sample-and-decon.timer
readinet-event@recurring-decon-only.timer

One-shot events use start_date_time. Recurring events use a crontab string which is converted to OnCalendar= format by cron_to_systemd().

Schedule reinstallation is also triggered automatically whenever a ScheduledEvent is inserted, updated, or deleted (via SQLAlchemy event hooks on ScheduledEvent, web/readinet/models.py:851-863).

3.8 Authentication and Authorization

Authentication uses Flask-Login and is only enforced on the server role. On the device, all auth decorators are no-ops — the device is accessed locally over the hotspot and has no login screen.

Auth decorators (web/readinet/util.py):

Decorator	Behavior
`@requires_login`	Server: checks Flask-Login session. Device: no-op.
`@set_device`	Resolves `g.device` from `?device_id=` (server) or `THIS_DEVICE_ID` env var (device).
`@requires_root`	Aborts 403 unless `current_user.is_root`.
`@requires_organization`	Sets `g.organization` from `?organization_id=`. Auto-redirects to first org if not specified.
`@requires_admin_at_organization`	Wraps `requires_organization`. Aborts 403 unless user is root or admin at the org.

User roles:

is_root=True: Full access including organization creation/management. Only root@mbari.net by default.
admin role at an org: Can manage users in that org and access all device data for the org's devices.
user role at an org: Read-only access.

Seeded accounts (all password: R3AdiN#Tdone-litmus-maturing):

root@mbari.net — is_root, no org affiliation needed
admin@mbari.net — admin role at MBARI org
user@mbari.net — user role at MBARI org

3.9 Logging

Loguru is used for structured logging (web/readinet/config.py).

Log sinks:

stderr (DEBUG+) — always active
/var/log/mbari_readinet_{device_id}.log — INFO+, filtered to records for this device. This is the full log file read by the Events and Samples pages.
/var/log/mbari_readinet_{device_id}_device.log — INFO+, device-only messages (serial output). Device role only.
MQTT log/{device_id} topic — Serialized loguru JSON records. Device role only. The server receives these and appends them to its own log files.

Log format: {timestamp}|{level}|{module}:{function}:{line}||{message}

Log parsing: web/readinet/events.py contains complex regex-based parsers that extract structured data (sample records, engineering time-series) from the log files. The EventControl class provides the main interface used by the Events and Samples pages.

Log reset: Triggered via the "Reset Logs" button in the web UI. Creates a zip archive of the current log and truncates it. Synchronized to the device via MQTT (with a 60-second TTL to prevent stale resets).

4. Local Development Setup

It is very helpful to be able to connect to the RockPi via an onboard serial port that you can use to ssh into the Pi. First, power off the RockPi, then you have to open the black case by removing the screw on the bottom of the case. Once open follow the instruction on the RockPi serial console docs to connect the USB-Serial cable to the RockPi. The docs show you how to connect to the RockPi through the serial port for different operating systems. One handy note is that on Linux/Mac machines, you might want to capture a listing of the /dev directory before plugging in the USB cable so you have an easier time figuring out which port is the new USB-Serial port. On my Ubuntu machine, I used picocom to connect by running:

sudo picocom -b 1500000 -d 8 /dev/ttyUSB0

and then powering on the RockPi. This is a VERY handy way to get to a prompt.

Note

One thing to note with the console is that the width of the lines is very limited, but you can expand the width of the lines by running stty rows 50 cols 250 (you can tweak the numbers to fit your needs)

Note

Once the RockPi is connected to your local network through a router, you can ssh into it via the IP address. The trick if finding what the IP address is. If you hook up a serial console as described above, you can run ifconfig -a to see the list of network interfaces and their assigned IP addresses. You can then ssh at root to that IP address.

Prerequisites

Docker (with Compose v2)
Python 3.10.12 (optional, for running linting/tests outside Docker; use asdf or mise with .tool-versions)

Steps

# 1. Clone the repo
git clone git@github.com:mbari-org/readi-net.git
cd readi-net

# 2. Create the .env file
cp web/.env.sample web/.env
# Edit web/.env if needed. The defaults work out-of-the-box for local dev.
# MQTT_BROKER_URL=broker is the docker service name, correct for compose.

# 3. Start all containers
docker compose up
# This starts: readinet_server (port 5001), readinet_device1 (port 5002),
#              readinet_device2 (port 5003), and the MQTT broker.

# 4. Initialize each container's database
docker exec -it readinet_server ./bootstrap.sh
docker exec -it readinet_device1 ./bootstrap.sh
docker exec -it readinet_device2 ./bootstrap.sh
# bootstrap.sh runs: flask db upgrade && flask seed

Access

Service	URL	Notes
Server	http://localhost:5001	Login with `admin@mbari.net` / `R3AdiN#Tdone-litmus-maturing`
Device 1	http://localhost:5002	No login required
Device 2	http://localhost:5003	No login required

Simulating the FIDO Sampler

Without a physical sampler, sampling commands will time out. To attach a virtual sampler:

docker exec -it readinet_device1 /opt/web/device_simulator/simulate.sh
# Ctrl+C to stop

This creates a virtual serial port pair via socat and runs esp.py as a mock FIDO device. The Flask app communicates with it as if it were a real sampler.

Live Code Reloading

The compose.yml mounts ./web as a volume into all containers. However, gunicorn does not auto-reload. To pick up Python changes, restart the affected container:

docker compose restart server
docker compose restart device1

Exploring a Container

# Open a shell in a container (disable background threads to avoid MQTT noise)
docker exec -it -e RUN_BACKGROUND_THREADS='' readinet_device1 bash

# Run a flask shell for DB queries
docker exec -it readinet_server flask --app readinet.app shell
>>> from readinet import models, db
>>> db.session.query(models.Device).all()

Running Database Migrations

# After adding/modifying a model:
docker exec -it readinet_server flask db migrate -m "describe your change"
docker exec -it readinet_server flask db upgrade
# Also run on device containers if needed:
docker exec -it readinet_device1 flask db upgrade

Port Reference

The compose file maps:

5001 → server container port 5000
5002 → device1 container port 5000
5003 → device2 container port 5000
1883 → MQTT broker

5. Building the OS Image

The OS image is Armbian (Ubuntu 22.04 Jammy) for the Rock Pi S (RK3308 SoC). Building requires a Linux x86 host with Docker; macOS is not supported for the build process.

5.1 Building Locally

You need a Linux machine (or VM). Building from macOS is not supported by the Armbian build system.

# From the repo root:
os/build-os.sh VERSION_NUMBER

# Examples:
os/build-os.sh 42
os/build-os.sh 43-dev

What it does:

Clones (or updates) the Armbian fork (https://github.com/brentr/build at tag fido25.8.2) into os/armbian-build/
Removes patches for unsupported boards (Helios64) that would fail to apply
Symlinks os/userpatches/ into the Armbian build tree
Appends device tree overlay configuration to the Rock Pi S board config
Rsyncs the web/ directory into the overlay so it's embedded in the image
Writes version stamps into the overlay
Runs Armbian's compile.sh readinet
Renames the output from Armbian-*.img to readinet-os-<VERSION>.img

Output: os/armbian-build/output/images/readinet-os-<VERSION>.img (and .sha)

Wipe options (via WIPE env var):

WIPE=all os/build-os.sh 42       # delete all of armbian-build/ and start fresh
WIPE=images os/build-os.sh 42    # delete only previous output images
WIPE=no os/build-os.sh 42        # default: incremental build (fastest)

Alternative: Vagrant VM (if you're on macOS or want isolation):

os/build-vagrant.sh VERSION_NUMBER
# Spins up a local QEMU/Libvirt VM, runs the build inside it

5.2 Building in AWS

For reproducible CI builds or when no Linux workstation is available, use the AWS build script:

os/build-aws.sh VERSION_NUMBER
# Example: os/build-aws.sh 42

What it does:

Looks up the latest Debian 12 AMD64 AMI in us-west-2
Launches a t3.xlarge spot instance with aws-userdata.sh as user-data
The instance:
- Installs git, rsync
- Adds SSH keys for project contributors from GitHub
- Retrieves the GitHub deploy key from AWS Secrets Manager (github_deploy_key)
- Clones git@github.com:mbari-org/readi-net.git
- Runs os/build-os.sh VERSION_NUMBER
- Uploads the image to s3://mbari-readinet-images
- Publishes an SNS notification when complete
- Terminates itself

Prerequisites:

AWS CLI configured with the 414844587818_AWSAdministratorAccess profile
Access to the github_deploy_key secret in AWS Secrets Manager (region us-west-2)
The build security group (sg-04dd09170d092d1a0) and subnet (subnet-056123e8157180bc3) must exist

Retrieving the built image:

aws s3 ls s3://mbari-readinet-images/ --profile 414844587818_AWSAdministratorAccess
aws s3 cp s3://mbari-readinet-images/readinet-os-42.img . --profile 414844587818_AWSAdministratorAccess

6. Deploying to Hardware

6.1 Provisioning the Image

Before flashing, use os/set-device-vars.sh to embed device identity and WiFi credentials into the image. This is the recommended way to configure a device; the alternative is letting readinet-firstboot.sh derive a device ID from /etc/machine-id on first boot.

# On an image file:
sudo os/set-device-vars.sh \
  --id fido-001 \
  --ssid "SiteWiFiNetwork" \
  --psk "wifipassword" \
  --path ./readinet-os-42.img

What it writes to the image:

File	Mode	Contents
`/etc/environment`	644	`READINET_DEVICE_ID="fido-001"`
`/etc/profile.d/readinet_device_id.sh`	644	`export READINET_DEVICE_ID="fido-001"`
`/etc/device-id`	644	`fido-001` (raw string, no newline)
`/etc/systemd/system.conf.d/10-readinet-env.conf`	600	`DefaultEnvironment=READINET_DEVICE_ID=... SEED_UPLINK_SSID=... SEED_UPLINK_PSK=...`
`/etc/seed/seed-uplink.env`	600	`SEED_UPLINK_SSID="..."` and `SEED_UPLINK_PSK="..."`

The systemd drop-in (10-readinet-env.conf) makes all three variables available as environment variables for all systemd services, including readinet-firstboot.service and readinet-web.service.

6.2 Flashing to SD Card

After provisioning, flash the image to a microSD card:

Graphical (Balena Etcher): 1. Download Balena Etcher 2. Select the .img file 3. Select the SD card (be careful — it will overwrite everything) 4. Click Flash

Command line:

# Identify your SD card device (look for the right size):
lsblk

# Flash (replace /dev/sdb with your device):
sudo dd if=readinet-os-42.img of=/dev/sdb bs=4M status=progress conv=fsync
sudo sync

6.3 Flashing to eMMC

The Rock Pi S has an optional onboard eMMC module. eMMC is more reliable than SD cards for embedded use (better wear leveling, power-loss tolerance) and is recommended for production deployments.

On your Linux host, open a terminal and change to a location where you can checkout the code for a utility to write to the RockPi eMMC
Run sudo apt-get install libudev-dev libusb-1.0-0-dev dh-autoreconf to install build dependencies
Then run git clone https://github.com/rockchip-linux/rkdeveloptool.git
Change into the new directory using cd rkdeveloptool and run:
1. ./autogen.sh
2. ./configure
3. make
After the rkdeveloptool utility is built, you need to download a support binary by opening your browser and pointing it to: http://xogium.performanceservers.nl/archive/rockpi-s/u-boot
Click on the rk3308_loader_uart0_m0_emmc_port_support_sd_20190717.bin link to download the support file (remember where it was downloaded to)
Next, tell the tool to load the support file by running (the path to your downloded .bin might be different)

sudo ./rkdeveloptool db ~/Downloads/rk3308_loader_uart0_m0_emmc_port_support_sd_20190717.bin
Next, hold the MASKROM button down while connecting the RockPi via the USB-C serial port of your computer (wait for about 2 seconds before releasing the button)
Then, run sudo ./rkdeveloptool wl 0 ~/Downloads/readinet/readinet-os-xxxxx.img where the .img is the READI-Net OS image you downloaded and configured earlier
Finally, run sudo ./rkdeveloptool rd to finalize the write and then you can unplug the RockPi from your computer and power it on normally

No code changes are needed for eMMC — the image is identical, just stored on different flash media.

6.4 First Boot and Verification

Insert the SD card (or ensure eMMC is installed), power on the device
Wait 2–3 minutes for the first-boot provisioner to complete
Look for a WiFi network starting with readinet- (the SSID is readinet-{device-id})
Connect to it (default password: readinet)
Open https://10.42.0.1 in a browser (accept the self-signed cert warning)
SSH access: ssh root@10.42.0.1 (password: readinet)

Verify services are running:

systemctl status readinet-web
systemctl status readinet-network
systemctl status readinet-hotspot
systemctl status NetworkManager
journalctl -u readinet-firstboot --no-pager  # check first-boot log

Connect to cloud:

# Initiate Tailscale VPN (production):
tailscale up --login-server https://vpn.prod.readinet.org

# Then on the server, a sysadmin must run:
headscale nodes register --user readinet --key nodekey:THE_NODE_KEY

# Verify VPN:
tailscale status
ping server.readinet.local

# Restart the web app to pick up the new VPN interface:
systemctl restart readinet-web

7. Cloud Server Setup

The cloud server runs the Flask application in ROLE=server mode behind nginx, orchestrated by Docker Compose, on an AWS EC2 instance provisioned by Terraform and configured by Ansible.

7.1 Infrastructure (Terraform)

Location: devops/terraform/

Managed resources:

EC2 instances (Debian 12): t3.xlarge for prod, t3.large for dev/test
100 GB gp3 EBS root volumes
Elastic IPs
IAM role with S3 access to mbari-readinet-backups
Security group allowing ports: 22 (SSH), 80 (HTTP), 443 (HTTPS), 1883 (MQTT), 8080 + 41641 (Headscale)

Environments: dev (dev.readinet.org), prod (prod.readinet.org), test

cd devops/terraform
terraform init
terraform plan
terraform apply

7.2 Application Deployment (Ansible)

Location: devops/ansible/

Inventory: devops/ansible/hosts

[dev]
54.71.128.24

[prod]
54.218.178.215

Deploy:

cd devops/ansible
ansible-galaxy install -r requirements.yml
ansible-playbook -i hosts server.yml -l prod  # deploy to production
ansible-playbook -i hosts server.yml -l dev   # deploy to development

What the playbook does:

Creates /opt/readinet-web/ on the server
Installs system packages: rsync, cron, dbus-user-session, Docker
Rsyncs web/ to /opt/readinet-web/ (excluding .env, instance/, __pycache__)
Generates a random SECRET_KEY via openssl rand -hex 32
Templates compose.yml.j2 to /opt/readinet-web/compose.yaml (server-only service, no device containers)
Installs and starts the readinet-web.service (runs docker compose up -d)
On first deploy: runs flask db upgrade and flask seed (guarded by .seeded marker)
Obtains a Let's Encrypt TLS certificate via certbot
Installs nginx as a reverse proxy with LE TLS
Installs daily backup timer (backup-readinet-web.service) that backs up the SQLite DB to s3://mbari-readinet-backups

SSH access:

ssh admin@prod.readinet.org   # or dev.readinet.org
# Key-based auth only. Add authorized keys to /home/admin/.ssh/authorized_keys

Useful server commands:

# Check application status
docker compose -f /opt/readinet-web/compose.yaml ps

# View logs
docker compose -f /opt/readinet-web/compose.yaml logs -f server

# Open a Flask shell for DB queries
docker exec -it readinet_server flask --app readinet.app shell

# Run a database migration after deploying new code
docker exec -it readinet_server flask db upgrade

# Manually trigger a seed (will overwrite users)
docker exec -it readinet_server flask seed

# Restart the application
docker compose -f /opt/readinet-web/compose.yaml restart server

7.3 VPN Setup (Headscale/Tailscale)

Devices connect to the cloud server via a Tailscale VPN. The server runs Headscale (an open-source Tailscale control plane) rather than relying on Tailscale's commercial SaaS.

Headscale is managed separately from this repository (it runs on the same EC2 instances via the headscale Ansible role). Key points:

VPN domains: vpn.prod.readinet.org (prod), vpn.dev.readinet.org (dev)
A single Headscale user readinet is used for all devices
Devices appear in the VPN as server.readinet.local (the server) and by hostname (the devices)

Registering a new device:

# On the device:
tailscale up --login-server https://vpn.prod.readinet.org

# On the server (SSH in as admin):
headscale nodes register --user readinet --key nodekey:PRESENTED_KEY_HERE

MQTT connectivity:

The Flask app on the device connects to MQTT at MQTT_BROKER_URL=server.readinet.local, which resolves through the Tailscale VPN. If the VPN is not connected, MQTT sync will not work. After connecting to Tailscale, always restart readinet-web on the device:

systemctl restart readinet-web

8. File Reference

8.1 Root Level

File	Purpose
`README.md`	End-user documentation and high-level developer notes
`DEV-NOTES.md`	Deep technical notes on the OS build and boot sequence
`DEVELOPER.md`	This file — comprehensive developer guide
`compose.yml`	Docker Compose for local development (server + 2 devices + MQTT broker)
`.tool-versions`	Python 3.10.12 version pin for asdf/mise
`.gitignore`	Ignores: `.db`, `__pycache__/`, `.env`, `.log`, `.web-secret`, `.DS_Store`

8.2 os/ — Image Build System

Build Scripts

File	Purpose
`os/build-os.sh`	Main image build script. Run on Linux. Takes `VERSION_NUMBER` arg. Clones Armbian fork, runs build, renames output.
`os/build-aws.sh`	Launches AWS EC2 spot instance (`t3.xlarge`) to run the build. Outputs image to S3 and sends SNS notification.
`os/aws-userdata.sh`	EC2 user-data script. Clones repo using deploy key from Secrets Manager, runs build, uploads to S3, terminates instance.
`os/set-device-vars.sh`	Pre-flash provisioning utility. Mounts image or block device, writes device ID and WiFi credentials to the filesystem.
`os/build-vagrant.sh`	Alternative build using a local Vagrant/QEMU VM.
`os/Vagrantfile`	Vagrant config: `generic/ubuntu2204`, 8 CPUs, 8 GB RAM, 128 GB disk, sshfs sync.

Armbian Configuration

File	Purpose
`os/userpatches/config-readinet.conf`	Armbian build config: `BOARD=rockpi-s`, `RELEASE=jammy`, `BUILD_MINIMAL=yes`, `NETWORKING_STACK=network-manager`, `EXTRAWIFI=yes`.
`os/userpatches/config-default.conf`	Symlink to `config-readinet.conf`. Required by Armbian's build system.
`os/userpatches/lib.config`	Extra apt packages: `bluez python3-pip vim nano network-manager iptables sqlite3 git make dnsmasq minicom net-tools nginx zip ppp picocom`
`os/userpatches/customize-image.sh`	Chroot script run by Armbian after package installation. Sets up users, installs/enables systemd units, configures NM, installs Tailscale, installs web app, configures kernel boot params.
`os/userpatches/kernel/archive/rockchip64-6.12/`	Custom kernel patches for RK3308 (RTL8723DS concurrent mode, UART CTS/RTS polarity).

Overlay Files (`os/userpatches/overlay/`)

Systemd Units:

File	Type	Purpose
`readinet-web.service`	Service	Starts gunicorn (`gevent` worker, `127.0.0.1:8000`). `Restart=always`, `RuntimeMaxSec=7d`. Reads env from `/opt/web/.env`.
`readinet-firstboot.service`	Oneshot	Runs once on first boot (guarded by `!/opt/web/.provisioned`). Sets device ID, hostname, runs `flask db upgrade && flask seed`, configures NM connections.
`readinet-network.service`	Oneshot	Reads WiFi credentials from DB and patches NM connection files. Depends on `readinet-firstboot`.
`readinet-hotspot.service`	Oneshot	Forces the WiFi hotspot AP up via `nmcli`. Runs after firstboot.
`readinet-nginx-setup.service`	Oneshot	Generates self-signed TLS cert/key for nginx (only if cert doesn't exist).
`readinet-install-schedule.service`	Oneshot	Runs `flask install_schedule_on_device` to write systemd timer overrides from DB.
`readinet-event@.service`	Template	Parameterized unit: POSTs to `http://127.0.0.1:8000/private/event/%i` when triggered.
`readinet-event@.timer`	Template	Parameterized timer. Default `OnCalendar=@0` (overridden per-instance).
`readinet-timer-default-override.conf`	Drop-in	Default timer override. Copied into each timer instance's `.d/` directory during build.

Shell Scripts:

File	Installed As	Purpose
`readinet-firstboot.sh`	`/usr/local/bin/readinet-firstboot`	First-boot provisioner. Seeds device ID from env or `/etc/machine-id`, sets hostname, runs DB migrations and seed, configures NM connections, marks provisioned.
`readinet-network.sh`	`/usr/local/bin/readinet-network`	Reads WiFi SSIDs/PSKs from SQLite DB, patches NM connection files, reloads NM, brings up connections.
`readinet-hotspot.sh`	`/usr/local/bin/readinet-hotspot`	Thin wrapper: `nmcli connection up/down Hotspot` with 5-second startup delay.
`readinet-nginx-setup.sh`	`/usr/local/bin/readinet-nginx-setup`	Generates self-signed TLS cert via openssl (CN=10.42.0.1, 10-year validity).
`signalQuality`	`/usr/local/sbin/signalQuality`	Reads cellular modem signal quality (for PPP/USB modem deployments).
`stickup`, `ifLink`, `ifTTY`, `ifUnlink`	`/lib/udev/`	udev helper scripts for USB modem management.

NetworkManager Profiles:

File	Interface	Mode	Config
`Ethernet.nmconnection`	eth0	STA/DHCP	route-metric=90 (prefer over WiFi)
`Hotspot.nmconnection`	wlan1	AP/shared	SSID=readinet-mgmt, PSK=readinet, 10.42.0.1/24
`Uplink.nmconnection`	wlan2	STA/DHCP	SSID=MBARI-Guest, route-metric=201
`WiredConnection1.nmconnection`	eth1	STA/DHCP	Secondary wired connection
`30-ignore-wlan0.conf`	wlan0	—	Tells NM not to manage wlan0

Other Config Files:

File	Destination	Purpose
`nginx.conf`	`/etc/nginx/nginx.conf`	Reverse proxy: 443 (TLS) → gunicorn:8000, serves /static/ directly, 80 → 443 redirect
`99-readinet.conf`	`/etc/ssh/sshd_config.d/`	Enables password auth, root login, sets `MaxAuthTries 12`
`rk3308-otg-host.dtbo`	`/boot/dtb/rockchip/overlay/`	DT overlay: USB OTG in host mode
`rk3308-uart1.dtbo`	`/boot/dtb/rockchip/overlay/`	DT overlay: UART1 (GPS)
`rk3308-uart2.dtbo`	`/boot/dtb/rockchip/overlay/`	DT overlay: UART2
`rk3308-uart3.dtbo`	`/boot/dtb/rockchip/overlay/`	DT overlay: UART3
`70-persistent-net.rules`	`/etc/udev/rules.d/`	Persistent network interface naming
`92-ifmodem.rules`	`/etc/udev/rules.d/`	udev rules for USB modem/PPP interface management
`dnsmasq.conf`	`/etc/dnsmasq.conf`	Legacy DHCP config. Not active — dnsmasq is masked; NM `method=shared` handles DHCP.
`web`	`overlay/web`	Symlink to `web/` app directory. Embedded in image during build.

8.3 web/ — Flask Application

Top-Level Files

File	Purpose
`web/Dockerfile`	`python:3.10-buster` base, installs `socat sqlite3 zip`, installs Poetry, runs `poetry install`. CMD: `gunicorn -b 0.0.0.0:5000 -k gevent readinet.app:app`
`web/pyproject.toml`	Python dependencies managed by Poetry. Key deps: Flask 2.3, SQLAlchemy, Flask-Migrate, Flask-Login, paho-mqtt, pyserial, gevent, loguru, xxhash, python-crontab.
`web/mosquitto.conf`	Mosquitto config: anonymous auth, port 1883, persistence to `/mosquitto/data`. Used in local dev (Docker) and on the cloud server.
`web/.env.sample`	Template for `web/.env`. Copy to `web/.env` before running locally.
`web/bootstrap.sh`	Container initialization: `flask db upgrade && flask seed`. Run once after `docker compose up`.
`web/README.md`	Do not delete — required by the build (used as Poetry package readme).

`web/readinet/` — Application Package

File	Purpose
`app.py`	Flask application factory. Creates app, registers blueprints, configures Flask-Login, sets up SQLite pragmas (WAL, busy_timeout), registers CLI commands, spawns background greenlets.
`config.py`	Loads `.env` via python-dotenv, applies gevent monkey-patching, configures loguru sinks, defines `Config` / `DevelopmentConfig` / `TestingConfig` / `ProductionConfig`, exports `config_manager` dict.
`models.py`	All SQLAlchemy models + `CommonMixin`. Global SQLAlchemy event hooks for MQTT sync. `Device` hybrid properties with side effects. `update_hash` and `truth_snapshot` properties.
`api.py`	`api` Blueprint. All action endpoints: device config, sampling, decon, restock, log management, user management, scheduled event data.
`sync.py`	MQTT sync protocol. `SyncMessage` dataclass: serialization, `apply_operation()` (upsert/delete from MQTT message). `SnapshotMessageListener`: destructive reconciliation from full device snapshot.
`background.py`	`BackgroundJob` ABC and three implementations: `MQTTThread`, `SamplerSelfCheckDriver`, `ConnectivityPingDriver`. `spawn_in_app_context()` helper.
`events.py`	Log parsing (`parse_samples_from_log()`, regex extractors for all sample fields and engineering data). `EventControl` class (interface for the Events and Samples pages). `LogMessageListener` (server-side MQTT log receiver).
`sampler.py`	`SamplerControl` class. Lock file management, serial port open/read/write, `^^^` response detection, return value parsing. `is_device_present()` check.
`util.py`	Auth decorator factories: `requires_login`, `set_device`, `requires_root`, `requires_organization`, `requires_admin_at_organization`.
`errors.py`	`DeviceLocked` and `DeviceTimeout` exception classes.

`web/readinet/views/`

File	Blueprint	Routes
`device.py`	`device_pages`	`GET /device`, `GET/POST /schedule`, `GET /management`, `GET /events`, `GET /samples`
`server.py`	`server_pages`	`GET/POST /login`, `GET /logout`, `GET /devices`, `GET /users`, `GET/POST /organizations`

`web/readinet/scripts/`

File	Purpose
`seed.py`	`flask seed` command. Clears and repopulates: users (3), roles (2), organizations (2), device record (if `ROLE=device`).
`scheduled_events.py`	`install_schedule_on_device()`: writes systemd timer overrides from DB, reloads. `run_scheduled_task()`: dispatches sampler commands from timer-triggered API calls. `delete_scheduled_event_if_no_more_executions_scheduled()`: post-run cleanup of one-shot events.
`network.py`	`flask set_hotspot_ssid <ssid>` command. Updates hotspot SSID in DB.

`web/readinet/templates/`

File	Purpose
`base.html`	Minimal base template.
`device.html`	Device dashboard: current status, next scheduled event, puck inventory, recent events, map.
`schedule.html`	Calendar view (FullCalendar). Modal for creating/editing events.
`management.html`	Device configuration: WiFi credentials, GPS location, sampler defaults (volume, filter), remote adoption code.
`events.html`	Event log table with INFO/WARNING/ERROR filtering. `?full=true` shows all events including DEBUG.
`samples.html`	Parsed sample records table with engineering data.
`login.html`	Server login form.
`sidenav.html`	Navigation sidebar partial (included in all pages).
`flash.html`	Flash message partial.
`server/devices.html`	Server dashboard: all devices in org with connectivity status.
`server/users.html`	User management: list, add, reset password, remove.
`server/organizations.html`	Organization management (root only).

`web/readinet/static/`

File/Dir	Purpose
`app.css`	Application styles.
`favicon.ico`	Site favicon.
`global-util.js`	Shared JS utilities used across pages.
`schedule.js`	FullCalendar integration. Event click/create handlers, recurrence form logic, timezone-aware date handling via Day.js.
`sidenav.js`	Sidenav org selector behavior.
`management/`	JS modules for each management form section: `device_management.js`, `location.js` (Leaflet map), `modal_*.js` (action modals), `uplink_internet.js`, `remote_management.js`, `sensor_management.js`.
`server/users.js`	User management form JS.
`vendor/`	Bundled third-party libraries: FullCalendar, Day.js, Leaflet, Tailwind CSS, Tailwind Elements.

`web/readinet/migrations/`

Alembic migrations. Run flask db upgrade to apply all pending migrations. Run flask db migrate -m "description" after model changes to generate a new migration file.

Migration	Description
`3f3b44e28298_initial`	Initial schema: all core tables
`5e531384b942_switch_to_float_volume`	`default_volume` → Float
`62bc00dcbabc_reset`	Schema reset
`883ebbf4e394_add_timezone_field`	`devices.timezone` column
`8eb36a9416a2_add_connectivity_status`	`connectivity_status` table
`a9b94b69a303_add_log_reset`	`log_reset_trigger` table
`e1d983d1130a_add_stop_date`	`scheduled_events.stop_date_time`
`e7548e46a4f1_add_zip_file_location`	`log_reset_trigger.zip_file`

`web/device_simulator/`

A virtual FIDO sampler for local development. simulate.sh creates a virtual serial port pair via socat and runs esp.py as a mock FIDO device. Run inside a device Docker container after docker compose up.

8.4 devops/ — Infrastructure

File	Purpose
`devops/ansible/hosts`	Inventory: dev, prod, test server IPs
`devops/ansible/server.yml`	Main playbook: applies `common`, `readinet-web`, `headscale` roles
`devops/ansible/requirements.yml`	Ansible Galaxy role dependencies
`devops/ansible/roles/readinet-web/tasks/main.yml`	Deployment tasks: rsync code, configure Docker Compose, certbot TLS, nginx, backup timer
`devops/terraform/readinet.tf`	Root Terraform module: instantiates dev/prod/test environments
`devops/terraform/readinet-server/ec2.tf`	EC2 instance, EIP, IAM role, security group

Default Credentials Reference

Resource	Username / Access	Password / Key
Device SSH	`root@10.42.0.1`	`readinet`
Device WiFi	SSID: `readinet-{device-id}`	`readinet`
Device Web UI	(no login)	—
Server Web (root)	`root@mbari.net`	`R3AdiN#Tdone-litmus-maturing`
Server Web (admin)	`admin@mbari.net`	`R3AdiN#Tdone-litmus-maturing`
Server Web (user)	`user@mbari.net`	`R3AdiN#Tdone-litmus-maturing`
Cloud SSH	`admin@prod.readinet.org`	SSH key (see Terraform user_data)

Important: Change all default passwords before any production deployment.

Database Schema
